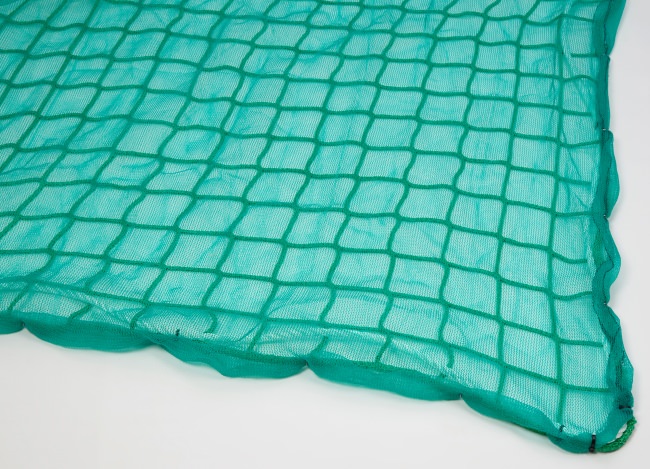

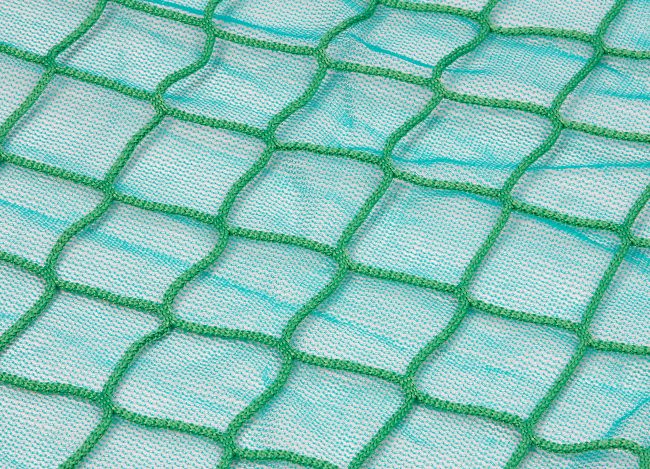

Fall Safety Net with Air-Permeable Tarpaulin 8.00 x 10.00 m

Fall Safety Net with Air-Permeable Tarpaulin 8 x 10 m | Safetynet365
Fall Safety Net with Air-Permeable Tarpaulin 8 x 10 m | Safetynet365
Fall Safety Net with Air-Permeable Tarpaulin 8 x 10 m | Safetynet365
Fall Safety Net with Air-Permeable Tarpaulin 8 x 10 m | Safetynet365
Fall Safety Net with Air-Permeable Tarpaulin 8 x 10 m | Safetynet365
Shipping Time: 12-14 working days
Item No.: 23042-01
Customise Your Product
Color
excl. VAT *1 424,00 € incl. VAT *2 504,56 €
Add to cart

  •  Details
  •  Technical Specifications
  •  More Pictures
  •  Customer Pictures
  •  Reviews
  •  Recommended

Description

Geprüfte Sicherheit



Fall safety net combination with border rope (System S) in conformity with EN 1263-1. The combination with the air-permeable woven tarpaulin additionally prevents tools or small parts from falling. The overlay tarpaulin is firmly attached to the net at every meter of its length by means of cable binders or hog rings.

The overlay panel has always to be mounted in the direction of load.

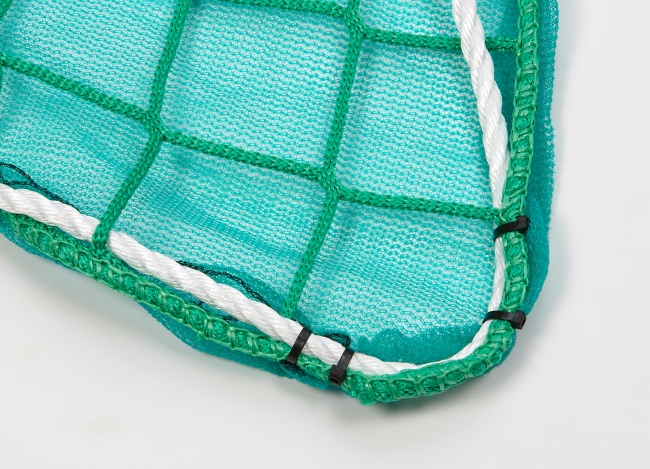

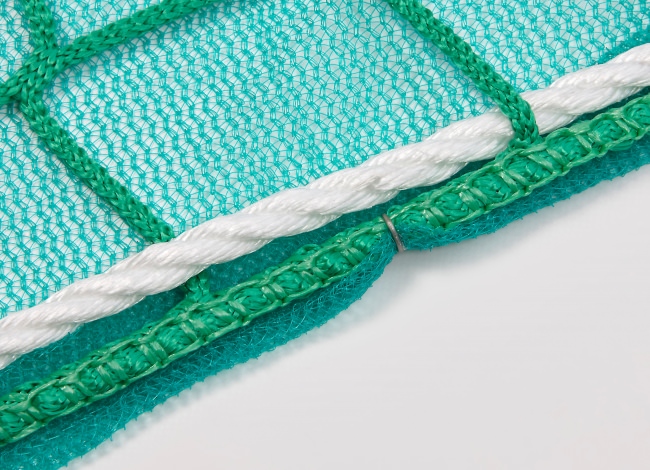

The net has a border measuring approx. 9 mm in thickness all around (see sample picture). An additional rope is sewn/linked to the border mesh. The border gives the net a neat outer edge on all sides and simultaneously ensures stable, stress-resistant anchorage points. The border and all seams are executed in the same color as the net. In addition, fall safety nets are equipped with a 12 mm-thick polysteel rope (30 kN), which is firmly attached to the border. The safety net consists of woven, deep-dyed polypropylene filament yarn, which is a highly tearproof and stable synthetic fibre. Thanks to the knotless weave, which is no less stable than a knotted connection, the net keeps its shape perfectly.



The material is of course 100% non-toxic, and contact with mucus membranes (mouth, eyes) is completely safe as well. Thanks to their weather-resistance and UV-stability, our safety nets are suitable for both outdoor and indoor use.



Technical Specifications
Dimensions:8.00 x 10.00 m
Material:high tenacity polypropylene, knotless, polyethylene
Type of Textile:high density polyethylene tape, monofilament polypropylene, air and water permeable
Material Diameter:Ø 5.0 mm
Mesh Size:2 x 3 mm, 100 x 100 mm
Pose of Meshs:quadratic (square)
Mesh Connection:knotless braid
Edge Design:reinforced selvage cord of approx. 9 mm, with edged rope
Edged Rope:polysteel rope (Ø 12 mm, white), all around
Max. Tensile Strength of a Mesh necessary force to tear a single mesh (tear resistance):3200 N equal to the weight force of a mass of 326 kilograms
Energy Absorption (approx.) The specifications refer to a test net, which is 3.00 x 3.00 m.:4.8 kJ
Tensile Strength of Edged Rope:30 kN
Densile Breaking Force Referred to Density:7.0 cN/den
Breaking Elongation of Filament:15%
Standards and Rules:BG regulation no. 179, DGUV standard 101-011, EN 1263-1
Certificate:GS verification certificate 23100030, Oeko-Tex® certificate 12.0.02466
Net Class:A2 Maximum mesh size: 100 mm,
Minimum breaking strength: 4.14 kJ
Safety Net System:S (rope-edged safety net)
Regular Inspection Interval:12 months
Number of Test Meshes Test meshes are rows of meshes which are connected with the net to determine the aging behavior. They can be removed from the net without impairing its functionality.:3 pcs.
Washing Temperature (max.):30 °C
Yarn Moisture Regain:0%
Tensile Strength Reduction Because Of Moisture:0%
Weather-Resistance:good
UV-Resistance:300 kly
Elasticity After Years of Climatic Influences:good long-term flexibility, little elongation
Flexibility When Used in Water:stays flexible
Contraction When Used in Water:low contraction
Contraction When Used Outside:no contraction
Electrical Characteristics:isolating, no electrical conductivity
Customs Tariff No.:56081930
Area Density:375 g/m²
Total Weight:25.80 kg

Download product data sheet (PDF)



Our building site nets (fall safety nets, guardrail safety nets) are produced in conformity with the currently valid standards and regulations. The nets are certified in conformity with EN 1263-1, approved by the BauBG (German Building Trade Association) and have a test certificate.



Your satisfaction and safety are very important to us. Regular quality inspections guarantee the high standard of our products. Our nets and fabric are designed to fulfil the most exacting standards and are characterised by their exceptional durability.



Not sure which net thickness is right for your specific purpose or do you perhaps have a different question? Trust our many years' experience and contact us!



Download product data sheet (PDF)



Technical Specifications
Dimensions:8.00 x 10.00 m
Material:high tenacity polypropylene, knotless, polyethylene
Type of Textile:high density polyethylene tape, monofilament polypropylene, air and water permeable
Material Diameter:Ø 5.0 mm
Mesh Size:2 x 3 mm, 100 x 100 mm
Pose of Meshs:quadratic (square)
Mesh Connection:knotless braid
Edge Design:reinforced selvage cord of approx. 9 mm, with edged rope
Edged Rope:polysteel rope (Ø 12 mm, white), all around
Max. Tensile Strength of a Mesh necessary force to tear a single mesh (tear resistance):3200 N equal to the weight force of a mass of 326 kilograms
Energy Absorption (approx.) The specifications refer to a test net, which is 3.00 x 3.00 m.:4.8 kJ
Tensile Strength of Edged Rope:30 kN
Densile Breaking Force Referred to Density:7.0 cN/den
Breaking Elongation of Filament:15%
Standards and Rules:BG regulation no. 179, DGUV standard 101-011, EN 1263-1
Certificate:GS verification certificate 23100030, Oeko-Tex® certificate 12.0.02466
Net Class:A2 Maximum mesh size: 100 mm,
Minimum breaking strength: 4.14 kJ
Safety Net System:S (rope-edged safety net)
Regular Inspection Interval:12 months
Number of Test Meshes Test meshes are rows of meshes which are connected with the net to determine the aging behavior. They can be removed from the net without impairing its functionality.:3 pcs.
Washing Temperature (max.):30 °C
Yarn Moisture Regain:0%
Tensile Strength Reduction Because Of Moisture:0%
Weather-Resistance:good
UV-Resistance:300 kly
Elasticity After Years of Climatic Influences:good long-term flexibility, little elongation
Flexibility When Used in Water:stays flexible
Contraction When Used in Water:low contraction
Contraction When Used Outside:no contraction
Electrical Characteristics:isolating, no electrical conductivity
Customs Tariff No.:56081930
Area Density:375 g/m²
Total Weight:25.80 kg
Fall Safety Net with Air-Permeable Tarpaulin 8 x 10 m | Safetynet365
Fall Safety Net with Air-Permeable Tarpaulin 8 x 10 m | Safetynet365
Fall Safety Net with Air-Permeable Tarpaulin 8 x 10 m | Safetynet365
Fall Safety Net with Air-Permeable Tarpaulin 8 x 10 m | Safetynet365

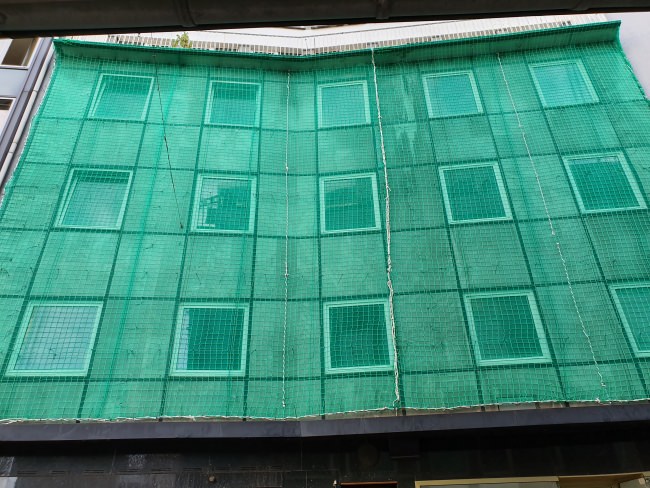

Kundenfoto von Fall Safety Net with Air-Permeable Tarpaulin 8 x 10 m
