Description

Galvanized steel safety net holder for attachment to wooden components. Suspension point for safety nets according to DIN EN 1263-1 and DGUV 101-011. The holder is designed and tested with the supplied screws for a characteristic load of max. 6 KN at an angle of 45°.

Fastening Substrate: wooden components Fasteners: 2 pieces wood construction screws/p>

Safety Net Dimensions	Required Number of Fasteners*
3.00 x 3.00 m	8 pcs.
5.00 x 5.00 m	8 pcs.
5.00 x 10.00 m	12 pcs.
6.00 x 10.00 m	14 pcs.
10.00 x 10.00 m	16 pcs.
7.50 x 15.00 m	18 pcs.
8.00 x 25.50 m	26 pcs.
12.50 x 20.50 m	28 pcs.
12.50 x 25.50 m	32 pcs.

* Required quantity of fasteners to mount fall safety nets at all four edges with a maximum interval of 2.50 m (referring to EN 1263).

You can make an exact calculation of the required amount of fasteners according to EN 1263 with the help of our Safety Net Calculator.

Mounting

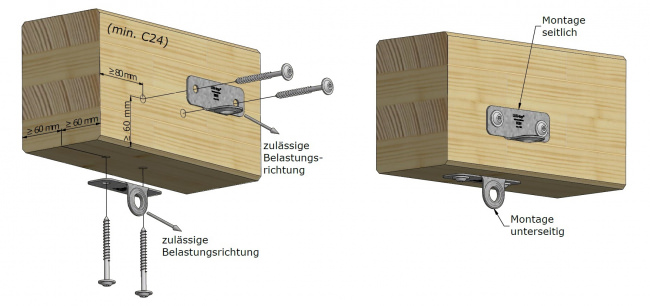

The safety net holder can be attached both to the side and to the bottom of wooden components. The specified minimum distances from the edge of the component must be observed.

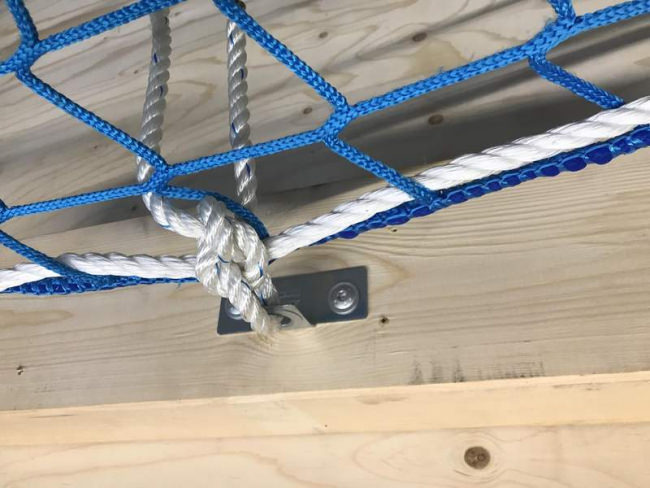

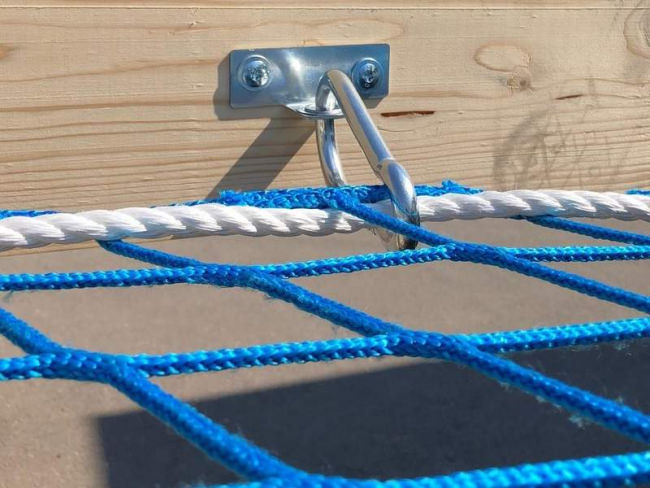

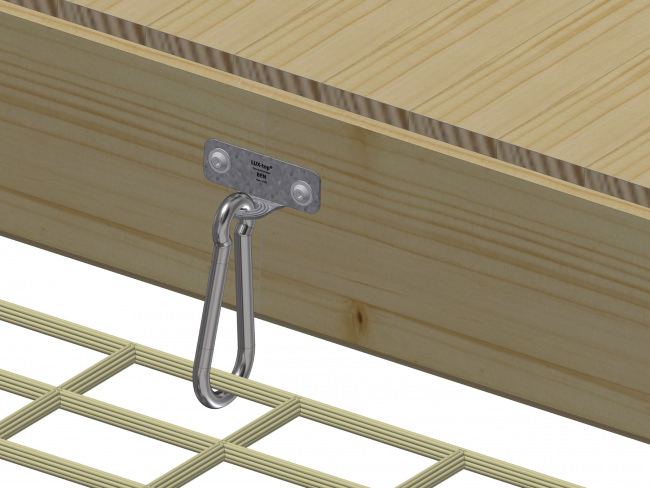

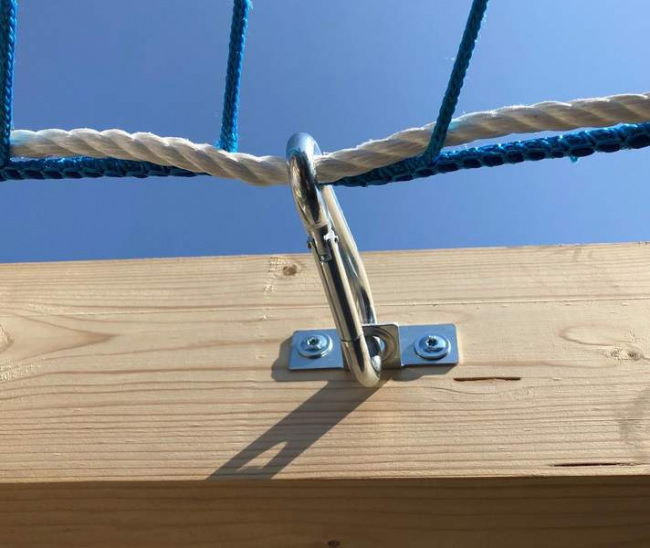

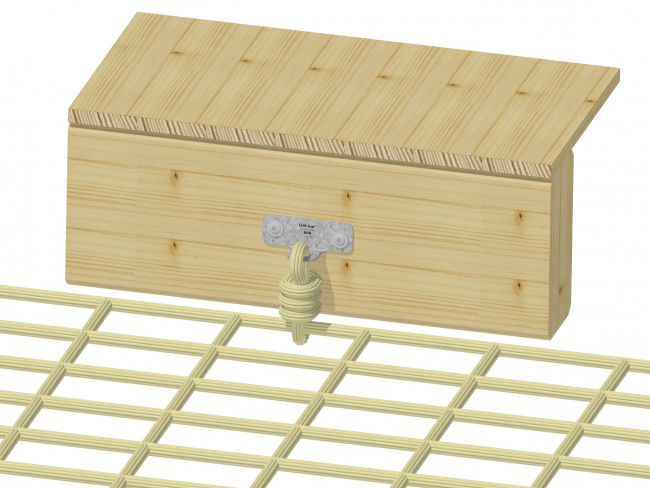

The safety net is connected to the holder with ropes or safety snap hooks in accordance with DGUV 101-011.

The direction of permissible load is always the direction facing away from the fastening plate (see drawing). Only one safety net can be attached to each holder.

Mounting

Technical Specifications

:Mounting Plate: 35 x 106 mm,
Depth: 38 mm,
Eyelet: Ø 17 mm

:steel, galvanised

:2 mm

:BG regulation no. 179, DGUV standard 101-011, EN 1263-1

:1 holder, 2 plate head screws 8 x 80 mm

:73182900

:0.12 kg

Download product data sheet (PDF)

Our building site nets (fall safety nets, guardrail safety nets) are produced in conformity with the currently valid standards and regulations. The nets are certified in conformity with EN 1263-1, approved by the BauBG (German Building Trade Association) and have a test certificate.

Your satisfaction and safety are very important to us. Regular quality inspections guarantee the high standard of our products. Our nets and fabric are designed to fulfil the most exacting standards and are characterised by their exceptional durability.

Not sure which net thickness is right for your specific purpose or do you perhaps have a different question? Trust our many years' experience and contact us!
