Assembly Instructions

Depending on the local conditions, there are many ways to mount safety nets. On this page we intodruce you to popular and well-established types of mounting.

Table of Contents

1. Installation of Horizontally Spanned Safety Nets

1.1 Suspension Ropes
1.2 Thimble Hooks
1.3 Safety Snap Hooks
1.4 Ropes
1.5 Cross Ropes
1.6 Joining Ropes
1.7 Safety Net Hooks for T-sections
1.8 Tension Belts
1.9 Ground Anchors
1.10 Heavy-Duty Anchor Bolts



suitable for:

  • Personnel safety nets on buiding-sites
  • Fall safety nets for stair wells
  • Fall safety nets for ponds/pools

2. Installation of Guardrail Nets

2.1 Isilink Clips
2.2 Quick-Release Strap Fasteners
2.3 Mounting Directly on the Supporting Structure



suitable for:

  • Guardrail nets on buiding-sites

3. Installation of Vertically Tensioned Nets

3.1 Bars
3.2 Retainer Rings
3.3 Bars With Retainer Rings
3.4 Quick-Release Strap Fasteners
3.5 Screw Hooks
3.6 Snap Hooks
3.7 Isilink Clips
3.8 Ropes & Tensioning Cords
3.9 Cable Straps
3.10 Steel Cables
3.11 Telescope Bars
3.12 Velcro® Strips



suitable for:

  • Stair-rail safety nets
  • Balcony safety netting
  • Kindergarten safety nets
  • Loft safety nets
  • Play area safety nets
  • Ball stop nets
  • Pallet rack safety nets
  • Anti-litter nets

4. Installation of Cover Nets

4.1 Shock Cords
4.2 Plastic Knobs
4.3 Hooks
4.4 Span Loops



suitable for:

  • Trailer cover nets
  • Container cover nets
  • Sandbox cover nets

5. Installation of Animal Protection Nets and Leaf Netting

5.1 Ropes & Tensioning Cords
5.2 Steel Cables
5.3 Cable Straps
5.4 Ring Pliers With Ring Staples
5.5 Staples
5.6 Ground Anchors & Tent Pegs



suitable for:

  • Cat safety nets
  • Aviary nets
  • Bird protection netting
  • Leaf netting



1. Installation of Horizontally Spanned Safety Nets

  • Personnel safety nets on buiding-sites
  • Fall safety nets for stair wells
  • Fall safety nets for ponds/pools

Building-site nets have to be anchored at stable, load-bearing points. For measuring each suspension point a characteristic load of at least 6 kN with an angle of 45° must be adopted. The suspension points must not be positioned more than 2.50 m apart. You will find further information under Building-Site Safety Netting Guidelines.



1.1 Suspension Ropes

Safety Net Assembly, Mounting With Suspension Ropes

Safety Net Assembly, Mounting With Suspension Ropes

Suspension ropes are an approved anchorage system for construction safety nets in conformity with DIN EN 1263 and BG regulation no. 179. (single-strand suspension). The suspension points must not be positioned more than 2.50 m apart. The side of the loop is affixed to the net. With the free end, the net is then knotted to the suspension point.

Recommended interval: 2.50 m maximum

Suitable items:

↑ back to top



1.2 Thimble Hooks

Safety Net Assembly, Mounting With Thimble Hooks

Safety Net Assembly, Mounting With Thimble Hooks

With thimble hooks you can create stable, stress-resistant anchorage points on variable points of the safety net.

Recommended interval: 2.50 m maximum

Suitable items:

↑ back to top



1.3 Safety Snap Hooks

Safety Net Assembly, Mounting With Safety Snap Hooks

Safety Net Assembly, Mounting With Safety Snap Hooks

With safety snap hooks you can create stable, stress-resistant anchorage points on variable points of the safety net.

Recommended interval: 2.50 m maximum

Suitable items:

↑ back to top



1.4 Ropes

Safety Net Assembly, Mounting With Ropes

Safety Net Assembly, Mounting With Ropes

Safety Net Assembly, Mounting With Ropes

Alternatevely to a selective single strand or double strand suspension ropes can also be used for wrapping safety nets. The rope in this case should have a minimum breaking force of 30 kN.

Recommended interval: each mesh, 10-mesh interval maximum

Suitable items:

↑ back to top



1.5 Cross Ropes (Type M)

Safety Net Assembly, Mounting With Cross Ropes

Crossbar ropes are used for reducing net sag. The rope gets threaded through the meshs and tensioned at the border of the net.

Suitable items:

↑ back to top



1.6 Joining Ropes (Type O)

Safety Net Joining Rope

Coupling ropes are used for connecting several safety nets together to create one large area. 1.50 m of coupling rope is needed per meter of net border.

Suitable items:

↑ back to top



1.7 Safety Net Hooks for T-Sections

Safety Net Assembly, Mounting With Safety Net Hooks for T-Sections

With our safety net hook "Grippa" safety nets can be mounted to the underside of T-sections. The border rope is hooked onto the hooks on the underside of the flange grip pulling in opposite directions to prevent the net from accidentally unhooking. The two flange grips enclose the T-section and are closed by pulling a belt strap with a snap fastener.

Recommended interval: 2.50 m maximum

Suitable items:

↑ back to top



1.8 Tension Belts

Safety Net Assembly, Mounting With Tension Belts

Safety Net Assembly, Mounting With Tension Belts

Safety Net Assembly, Mounting With Tension Belts

Fall safety nets can also be mounted with lashing straps on T-sections or supporting structures. With wrapping tension belts in a 2x2m-grid it is also possible to use safety nets as an accessible working platform. We will be glad to advise you on any question. You also find further information in the BG information sheet BGI 662.

Recommended interval: 2.50 m maximum

Suitable items:

↑ back to top



1.9 Ground Anchors

Safety Net Assembly, Mounting With Ground Anchors

Fall safety nets can be securely mounted (T-irons or screw-in anchors) in the ground.

Recommended interval: 2.50 m maximum

Suitable items:

↑ back to top



1.10 Heavy-Duty Anchor Bolts

Safety Net Assembly, Mounting With Heavy-Duty Anchor Bolts

Safety Net Assembly, Mounting With Heavy-Duty Anchor Bolts

Heavy-duty anchor bolt can be used to anchor personnel safety nets in concrete surfaces.

Recommended interval: 2.50 m maximum

Suitable items:

↑ back to top



2. Installation of Guardrail Nets

Guardrail nets must be anchored to the scaffolding rail with an interval of 75 cm maximum and stretched taut. You will find further information under Building-Site Safety Netting Guidelines. We recommend the followig types of mounting:



2.1 Isilink Clips

Safety Net Assembly, Mounting With Isilink Clips

Safety Net Assembly, Mounting With Isilink Clips

Isilink clips are an easy option for anchoring guardrail safety nets to scaffold tubes. Simply lay the long end on the scaffold tube and place the opening in the Isilink cord around the clip as a buttonhole. Rapid assembly is no problem, even with protective gloves. Fully functional even in wet, cold and dirty conditions.

All standard sizes of our guardrail nets are available with clips already sewn on.

Recommended interval: 75 cm

Suitable items:

↑ back to top



2.2 Quick-Release Strap Fasteners

Safety Net Assembly, Mounting With Quick-Release Strap Fasteners

Safety Net Assembly, Mounting With Quick-Release Strap Fasteners

An easy installation method is to anchor the net using quick-release strap fasteners with self locking buckle.

Some guardrail nets in standard sizes are available with quick-release strap fasteners already sewn on.

Recommended interval: 75 cm

Suitable items:

↑ back to top



2.3 Mounting Directly on the Supporting Structure

Mounting Guardrail Nets Directly on the Supporting Structure

Mounting Guardrail Nets Directly on the Supporting Structure

It is possible to mount the net directly on the scaffold tube. Pursuant to the German Bau-BG safety regulation no. 179, guardrail nets can be fastened to the supporting structure mesh by mesh.

Recommended interval: each mesh

↑ back to top



3. Installation of Vertically Tensioned Nets

  • Stair-rail safety nets
  • Balcony safety netting
  • Kindergarten safety nets
  • Loft safety nets
  • Play area safety nets
  • Ball stop nets
  • Pallet rack safety nets
  • Anti-litter nets

Here you will find possible types of mounting vertically tensioned safety nets:

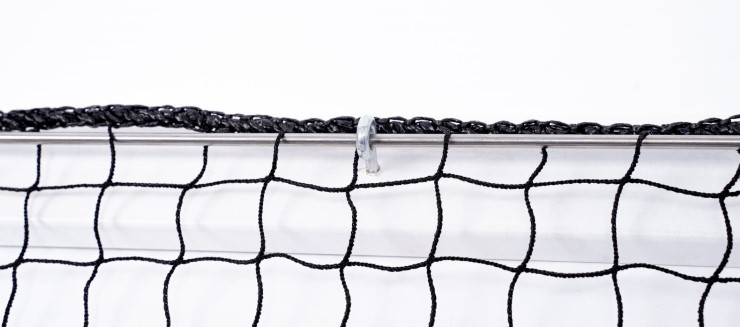

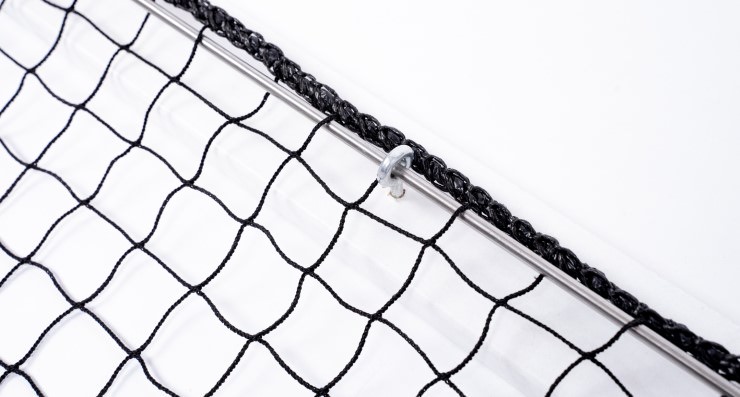

3.1 Bars

Safety Net Assembly, Mounting With Bars

Safety Net Assembly, Mounting With Bars

Safety Net Assembly, Mounting With Bars

Safety Net Assembly, Mounting With Bars

Safety Net Assembly, Mounting With Bars

Bars or profiles (e.g. rods, wooden bars, aluminium stacks) create a permanent and clean fixation. The bars get threaded through the net and then get screwed.

Recommendend diameter of wooden bars: Ø 14 mm
Recommendend diameter of aluminium bars: Ø 8-14 mm

Tip: All bars should be threaded through the net and fixed with adhesive tape before mounting the first one. Otherwise it could be difficult or impossible to fix the last bars.

Recommended interval: Thread through each mesh, bars can be screwed at an interval of 30 cm

↑ back to top



3.2 Bars With Retainer Rings

Safety Net Assembly, Mounting With Bars And Retainer Rings

Safety Net Assembly, Mounting With Bars And Retainer Rings

Safety Net Assembly, Mounting With Bars And Retainer Rings

Safety Net Assembly, Mounting With Bars And Retainer Rings

With retainer rings you will get a clean punctual fixation without sharp peaks. We recommend a combination with bars (see the point below).

Recommended interval: 15-30 cm

Suitable items:

↑ back to top



3.3 Bars With Retainer Rings

Safety Net Assembly, Mounting With Bars And Retainer Rings

Safety Net Assembly, Mounting With Bars And Retainer Rings

Safety Net Assembly, Mounting With Bars And Retainer Rings

Bars can be combined with retainer rings. With this type of fixation you prevent wooden bars from splitting and there is no drilling through the bars required (especially metallic bars).

Recommended interval: Thread through each mesh, bars can be hold at an interval of 30 cm

Suitable items:

↑ back to top



3.4 Quick-Release Strap Fasteners

Safety Net Assembly, Mounting With Quick-Release Strap Fasteners

Buckle straps are an easy option of fixation, which can also be quickly released at any time. In addition to that belt straps can be removed residue-free.

Recommended interval: 30-75 cm

Suitable items:

↑ back to top



3.5 Screw Hooks

Safety Net Assembly, Mounting With Screw Hooks

A popular and convenient way to mount a vertical safety net is to use simple (screw) hooks.

Recommended interval: 15-20 cm

↑ back to top



3.6 Snap Hooks

Safety Net Assembly, Mounting With Snap Hooks

This type of installation ist especially recommended, if the net have to be mounted fast or for a short time.

Recommended interval: 15-20 cm

Suitable items:

↑ back to top



3.7 Isilink Clips

Safety Net Assembly, Mounting With Isilink Clips

Isilink is a building-site safety net mounting system. Simply lay the long end on the scaffold tube and place the opening in the Isilink cord around the clip as a buttonhole. Rapid assembly is no problem, even with protective gloves. Fully functional even in wet, cold and dirty conditions.

Recommended interval: 15-75 cm

Suitable items:

↑ back to top



3.8 Ropes & Tensioning Cords

Safety Net Assembly, Mounting With Ropes & Tensioning Cords

Safety Net Assembly, Mounting With Ropes & Tensioning Cords

Safety Net Assembly, Mounting With Ropes & Tensioning Cords

Safety Net Assembly, Mounting With Ropes & Tensioning Cords

Ropes and cords are used if there is no desire to drill or machine the supporting structure. It is also possible to reach a permanent fixation. 2-3 meter of coupling rope is needed per meter of net border.

Tip: Retighten and fix the cord after each meter to hold the strain.

Recommended interval: mesh by mesh

Suitable items:

↑ back to top



3.9 Cable Straps

Safety Net Assembly, Mounting With Cable Straps

Safety Net Assembly, Mounting With Cable Straps

The use of cable straps is a low-cost type of installation. Depending on how many straps are used it is possible to reach a constant fixation. They also can be removed residue-free. It is important to sue straps with an adequate breaking force.

Tip: Cut off the protrucing ends after assembly.

Recommended interval: 5-20 cm

Suitable items:

↑ back to top



3.10 Steel Cables

Safety Net Assembly, Mounting With Steel Cables

Safety Net Assembly, Mounting With Steel Cables

Safety Net Assembly, Mounting With Steel Cables

Safety Net Assembly, Mounting With Steel Cables

Safety Net Assembly, Mounting With Steel Cables

Safety Net Assembly, Mounting With Steel Cables

Steel cables allow a dimensionally stable and permanent fixation of nets. They are used especially to bridge a gap between two anchoring points (e.g. ball stop netting, pallet rack safety nets or between two walls). If a net is hung-up like a curtain it can be moved by sliding it to one side.

Recommended interval: mesh by mesh

Suitable items:

↑ back to top



3.11 Telescope Bars

Safety Net Assembly, Mounting With Telescope Bars

Telescope bars are used to bridge a gap between two anchoring points.

Recommended interval: each mesh

↑ back to top



3.12 Velcro® Strips

Safety Net Assembly, Mounting With Velcro® Strips

Velcro® strips are suitable for nets that need to be hung up and taken down quickly and also need to be removed residue-free.

Caution: Not suitable for personnel safety nets!

Recommended interval: 15-30 cm

Suitable items:

↑ back to top



4. Installation of Cover Nets

  • Trailer cover nets
  • Container cover nets
  • Sandbox cover nets

Here you will find diffent types of mounting covering nets.



4.1 Shock Cords

Safety Net Assembly, Mounting With Shock Cords

Safety Net Assembly, Mounting With Shock Cords

Safety Net Assembly, Mounting With Shock Cords

Shock cord are used for guying safety nets and tarpaulins over box-shaped containers (sand pits, trailers, cargo containers, etc.). They can be stretched over the container edges or to existing anchorage points.

Recommended interval: each mesh

Suitable items:

↑ back to top



4.2 Plastic Knobs

Safety Net Assembly, Mounting With Plastic Knobs

Safety Net Assembly, Mounting With Plastic Knobs

Safety Net Assembly, Mounting With Plastic Knobs

Safety Net Assembly, Mounting With Plastic Knobs

Screwed plastic knobs facilitate the hooking in of safety nets or as an attachment point for tensioning ropes. They usually have no sharp edges.

Recommended interval: 50 cm

Suitable items:

↑ back to top



4.3 Hooks

Safety Net Assembly, Mounting With Hooks

Safety Net Assembly, Mounting With Hooks

Simple screw hooks can be used to fix a cover net. They are used especially at trailers or cargo containers.

Recommended interval: 30-50 cm

Suitable items:

↑ back to top



4.4 Span Loops

Safety Net Assembly, Mounting With Span Loops

Span loops are suitable for quickly anchoring covering and cargo securing nets. The hook is simply pulled through the loop and then affixed to the net or tarpaulin.

Recommended interval: 15-50 cm

Suitable items:

↑ back to top



5. Installation of Animal Protection Nets and Leaf Netting

  • Cat safety nets
  • Aviary nets
  • Bird protection netting
  • Leaf netting



5.1 Ropes & Tensioning Cords

Safety Net Assembly, Mounting With Ropes & Tensioning Cords

Safety Net Assembly, Mounting With Ropes & Tensioning Cords

Safety Net Assembly, Mounting With Rope

Ropes and cords are used if there is no desire to drill or machine the supporting structure. It is also possible to reach a permanent fixation. 2-3 meter of coupling rope is needed per meter of net border.

Tip: Retighten and fix the cord after each meter to hold the strain.

Recommended interval: mesh by mesh

Suitable items:

↑ back to top



5.2 Steel Cables

Safety Net Assembly, Mounting With Steel Cables

Safety Net Assembly, Mounting With Steel Cables

Safety Net Assembly, Mounting With Steel Cables

Safety Net Assembly, Mounting With Steel Cables

Steel cables allow a dimensionally stable and permanent fixation of nets. They are used especially to bridge a gap between two anchoring points. If a net is hung-up like a curtain it can be moved by sliding it to one side.

Recommended interval: mesh by mesh

Suitable items:

↑ back to top



5.3 Cable Straps

Safety Net Assembly, Mounting With Cable Straps

Safety Net Assembly, Mounting With Cable Straps

The use of cable straps is a low-cost type of installation. Depending on how many straps are used it is possible to reach a constant fixation. They also can be removed residue-free. It is important to sue straps with an adequate breaking force.

Tip: Cut off the protrucing ends after assembly.

Recommended interval: 5-20 cm

Suitable items:

↑ back to top



5.4 Ring Pliers With Ring Staples

Safety Net Assembly, Mounting With Ring Pliers

Safety Net Assembly, Mounting With Ring Pliers

Ring staples enable fast, efficient connections. The staples are automatically replenished, allowing you to work easily and without any interruptions. Suitable for net assembly, connecting multiple nets together or to repair broken meshes.

Recommended interval: 5-20 cm

Suitable items:

↑ back to top



5.5 Staples

Safety Net Assembly, Mounting With Staples

Safety Net Assembly, Mounting With Staples

Usual stables are suitable for a clean fixation of nets on wooden surfaces.

Recommended interval: 5-15 cm

↑ back to top



5.6 Ground Anchors & Tent Pegs

Safety Net Assembly, Mounting With Tent Pegs

Safety Net Assembly, Mounting With Tent Pegs

With simple ground anchors or usual pegs light netting can be anchored to the ground easily.

Recommended interval: 50-250 cm

Suitable items:

↑ back to top
