Safety Net Thimble Hook

Safety Net Thimble Hook | Safetynet365
Safety Net Thimble Hook | Safetynet365
Safety Net Thimble Hook | Safetynet365
Shipping Time: 1-3 working days
Item No.: SN-2020

excl. VAT *1 4,50 € incl. VAT *2 5,36 €
Add to cart

  •  Description
  •  Technical Specifications
  •  More Images
  •  Reviews
Description

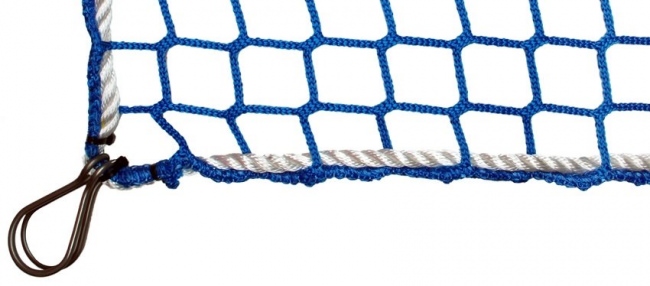

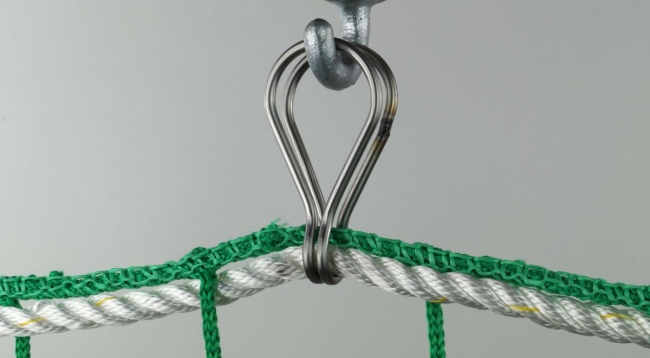

DBGM (German Federal Utility Model) safety net attachment clip of steel (DBGM No. 295 09 958.5). The attachment clip is simply attached to the edge of the safety net, thus creating a load-bearing attachment point.

Approved anchorage system for construction safety nets in conformity with EN 1263 and DGUV 101-011.



Safety Net DimensionsRequired Number of Thimble Hooks*
3.00 x 3.00 m8 pcs.
5.00 x 5.00 m8 pcs.
5.00 x 10.00 m12 pcs.
6.00 x 10.00 m14 pcs.
10.00 x 10.00 m16 pcs.
7.50 x 15.00 m18 pcs.
8.00 x 25.50 m26 pcs.
12.50 x 20.50 m28 pcs.
12.50 x 25.50 m32 pcs.

* Required quantity of hooks to mount fall safety nets at all four edges with a maximum interval of 2.50 m (referring to EN 1263).



You can make an exact calculation of the required amount of fasteners according to EN 1263 with the help of our Safety Net Calculator.



Technical Specifications
Dimensions:Total Length: 100 mm, Inner Diameter of large Eye: 45 mm, Inner Diameter of small Eye: 15 mm
Material:stainless steel A2
Material Diameter:Ø 4.0 mm
Breaking Force:6000 daN
Standards and Rules:BG regulation no. 179, DGUV standard 101-011, EN 1263-1
Customs Tariff No.:72299090
Total Weight:0.08 kg

 Download product data sheet (PDF)



Our building site nets (fall safety nets, guardrail safety nets) are produced in conformity with the currently valid standards and regulations. The nets are certified in conformity with EN 1263-1, approved by the BauBG (German Building Trade Association) and have a test certificate.



Your satisfaction and safety are very important to us. Regular quality inspections guarantee the high standard of our products. Our nets and fabric are designed to fulfil the most exacting standards and are characterised by their exceptional durability.



Not sure which net thickness is right for your specific purpose or do you perhaps have a different question? Trust our many years' experience and contact us!





 Download product data sheet (PDF)



Technical Specifications
Dimensions:Total Length: 100 mm, Inner Diameter of large Eye: 45 mm, Inner Diameter of small Eye: 15 mm
Material:stainless steel A2
Material Diameter:Ø 4.0 mm
Breaking Force:6000 daN
Standards and Rules:BG regulation no. 179, DGUV standard 101-011, EN 1263-1
Customs Tariff No.:72299090
Total Weight:0.076 kg
More Images
Safety Net Thimble Hook | Safetynet365
Safety Net Thimble Hook | Safetynet365
Customer Reviews:

Write the first Review!
