Construction Safety Net 10.00 x 10.00 m (Diagonal Meshes)

LoginRegister

0 Item

You do not have any products in your shopping cart yet.

CheckoutShopping Cart

Ask a Question

Description

Fall safety nets in conformity with European Standard EN 1263-1 and the German DGUV rule 101-011 with additional border rope.

Fall protection is legally mandatory at worksites where there is a risk of falling. Our fall safety nets ensure safety at work. The rhombic net is equipped with a 12 mm-thick polysteel rope (30 kN), which is threaded through the outer mesh.

The safety net consists of woven, deep-dyed polypropylene filament yarn, which is a highly tearproof and stable synthetic fibre. Thanks to the knotless weave, which is no less stable than a knotted connection, the net keeps its shape perfectly.

The material is of course 100% non-toxic, and contact with mucus membranes (mouth, eyes) is completely safe as well. Thanks to their weather-resistance and UV-stability, our safety nets are suitable for both outdoor and indoor use.

Technical Specifications

:10.00 x 10.00 m

:high tenacity polypropylene, knotless

:Ø 4.75 mm

:100 x 100 mm

:rhombic (diamond mesh)

:knotless braid

:with edged rope

:polysteel rope (Ø 12 mm, white), all around

:3000 N equal to the weight force of a mass of 306 kilograms

:5.0 kJ

:30 kN

:7.0 cN/den

:15%

:BG regulation no. 179, DGUV standard 101-011, EN 1263-1

:GS verification certificate 23100031, Oeko-Tex® certificate 12.0.02466

:A2 Maximum mesh size: 100 mm,
Minimum breaking strength: 4.14 kJ

:S (rope-edged safety net)

:12 months

:3 pcs.

:-40 to +80 °C

:165 °C

:30 °C

:0%

:very good/good

:good/not good

:good

:very good

:good

:300 kly

:90%

:good long-term flexibility, little elongation

:stays flexible

:low contraction

:no contraction

:melting

:isolating, no electrical conductivity

:56081930

:275 g/m²

:19.40 kg

Download product data sheet (PDF)

Our building site nets (fall safety nets, guardrail safety nets) are produced in conformity with the currently valid standards and regulations. The nets are certified in conformity with EN 1263-1, approved by the BauBG (German Building Trade Association) and have a test certificate.

Your satisfaction and safety are very important to us. Regular quality inspections guarantee the high standard of our products. Our nets and fabric are designed to fulfil the most exacting standards and are characterised by their exceptional durability.

Not sure which net thickness is right for your specific purpose or do you perhaps have a different question? Trust our many years' experience and contact us!

Frequently Asked Questions

Building-Site Safety Netting Guidelines

Safety Net Calculator for Determining Net Deformation and Other Parameters

Assembly Instructions for Safety Nets

Enquire About a Special Shape

Download product data sheet (PDF)

Technical Specifications

:10.00 x 10.00 m

:high tenacity polypropylene, knotless

:Ø 4.75 mm

:100 x 100 mm

:rhombic (diamond mesh)

:knotless braid

:with edged rope

:polysteel rope (Ø 12 mm, white), all around

:3000 N equal to the weight force of a mass of 306 kilograms

:5.0 kJ

:30 kN

:7.0 cN/den

:15%

:BG regulation no. 179, DGUV standard 101-011, EN 1263-1

:GS verification certificate 23100031, Oeko-Tex® certificate 12.0.02466

:A2 Maximum mesh size: 100 mm,
Minimum breaking strength: 4.14 kJ

:S (rope-edged safety net)

:12 months

:3 pcs.

:-40 to +80 °C

:165 °C

:30 °C

:0%

:very good/good

:good/not good

:good

:very good

:good

:300 kly

:90%

:good long-term flexibility, little elongation

:stays flexible

:low contraction

:no contraction

:melting

:isolating, no electrical conductivity

:56081930

:275 g/m²

:19.40 kg

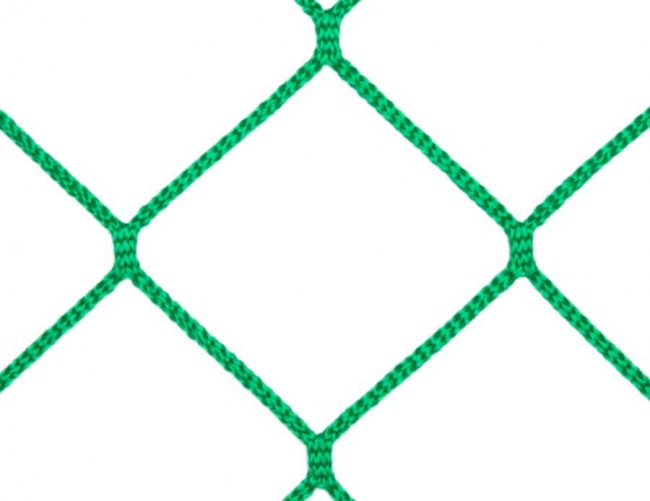

Construction Safety Net 10.00 x 10.00 m (Diagonal Meshes) | Safetynet365

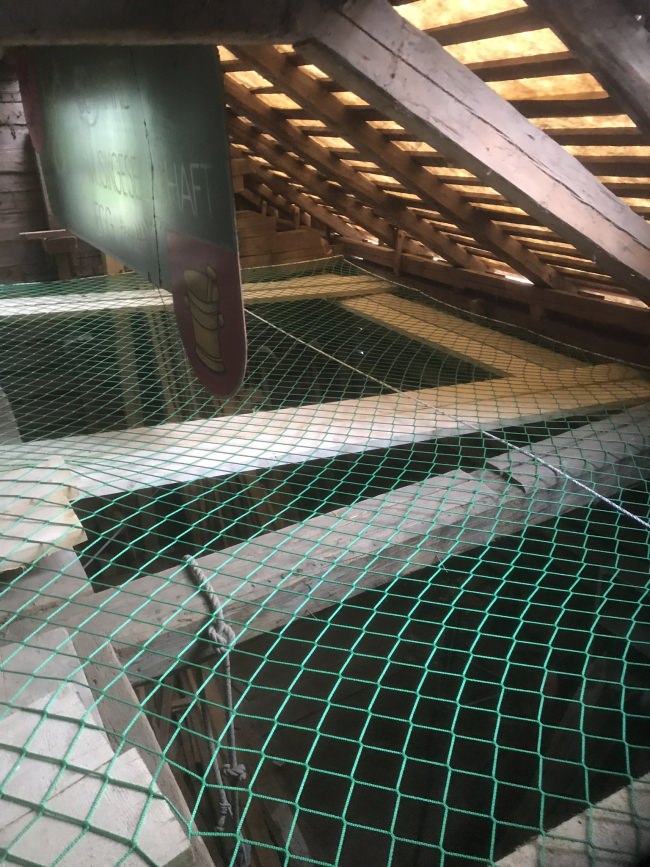

Kundenfoto von Construction Safety Net 10.00 x 10.00 m (Diagonal Meshes)

Customer Reviews

Andreas Rach - 18/06/2016

The nets have been used several times on construction sites to protect against falls. The nets were delivered in very good quality.
The rope that runs around the entire length is particularly good. The markings on the corners help enormously with aligning the nets. So far, the nets have survived the use well and without damage.
I think it's particularly good that if the net does become damaged, the repair net pieces are included. So all in all (the price was also moderate) I am very happy with the nets I ordered and will of course continue to order from you. translated, original text: "Die Netze wurden nun schon mehrfach auf Baustellen zur Absturzsicherung eingesetzt. Die Netze wurden in einer sehr guten Qualität geliefert.
Besonders gut ist das Umlaufende Seil. Die Markierungen an den Ecken helfen enorm bei der Ausrichtung der Netze. Bisher haben die Netze die Einsätze gut und schadfrei Überstanden.
Besonders gut finde ich das, sollte doch mal ein Schaden am Netz eintreten, die Reparatur Netzstücke gleich mitgeliefert wurden. Also alles in allen (auch der Preis war moderat) bin ich mit den von mir bestellten Netzen sehr zufrieden und werde natürlich weiterhin bei ihnen Bestellen."

Erwin K. - 15/07/2018

Crash net super translated, original text: "Absturznetz super"
