Shipping Time: 18-20 working days
Item No.: 1903-100

Customise Your Product

Color:
Width:
cm
Length:
cm
Graduated Prices (for each):
from 1 m:    11,21 €/m
from 5 m:    7,56 €/m
from 10 m:    6,73 €/m
from 20 m:    5,61 €/m
  • Net Area:
  • Price per m: 0,00 €
  • Total Weight:
Qty pcs.
excl. VAT *1 0,00 €incl. VAT *2 0,00 €
Add to cart

  •  Description
  •  Technical Specifications
  •  More Images
  •  Recommendation
  •  Reviews
Description
Geprüfte Sicherheit

Fall safety nets in conformity with European Standard EN 1263-1 and the German DGUV rule 101-011 with additional border rope.



Configure your own made-to-measure safety net. Choose one of the above colors and enter the desired length and width into the appropriate fields. The surface area, weight and price of the net will then be automatically calculated and shown.



The net has a border measuring approx. 9 mm in thickness all around (see sample picture). An additional rope is sewn/linked to the border mesh. The border gives the net a neat outer edge on all sides and simultaneously ensures stable, stress-resistant anchorage points. The border and all seams are executed in the same color as the net.

In addition, fall safety nets are equipped with a 12 mm-thick polysteel rope (30 kN), which is firmly attached to the border.



The safety net consists of woven, deep-dyed polypropylene filament yarn, which is a highly tearproof and stable synthetic fibre. Thanks to the knotless weave, which is no less stable than a knotted connection, the net keeps its shape perfectly.

The material is of course 100% non-toxic, and contact with mucus membranes (mouth, eyes) is completely safe as well. Thanks to their weather-resistance and UV-stability, our safety nets are suitable for both outdoor and indoor use.



Attention:

Please note that the net has some elongation under its own weight. Depending on the size of the net, the type of fastening and the prestress of the net, it cannot be ruled out that the net will stretch below the water surface under load. To reduce net sag, we recommend to thread ropes, straps or other crossing elements through the net to tension them. This reduces the net area and thus the potential elongation. The elongation of the net is limited by the revolving edge rope. Thus the internal material is always more flexible than the edge. Suspension without sag is not always possible.

If the net spread below the surface of the water and the affected persons were unable to free themselves from the net, we would advise against the use of a safety net.



Technical Specifications
Material:high tenacity polypropylene, knotless
Material Diameter: 5.0 mm
Pose of Meshs:quadratic (square)
Mesh Connection:knotless braid
Edge Design:reinforced selvage cord of approx. 9 mm, with edged rope
Edged Rope:polysteel rope ( 12 mm, white), all around
Max. Tensile Strength of a Mesh necessary force to tear a single mesh (tear resistance):3200 N equal to the weight force of a mass of 326 kilograms
Energy Absorption (approx.) The specifications refer to a test net, which is 3.00 x 3.00 m.:4.8 kJ
Tensile Strength of Edged Rope:30 kN
Standards and Rules:BG regulation no. 179, DGUV standard 101-011, EN 1263-1
Certificate:GS verification certificate 18100013, Oeko-Tex® certificate 12.0.02466
Net Class:A2 Maximum mesh size: 100 mm,
Minimum breaking strength: 4.14 kJ
Safety Net System:S (rope-edged safety net)
Regular Inspection Interval:12 months
Number of Test Meshes Test meshes are rows of meshes which are connected with the net to determine the aging behavior. They can be removed from the net without impairing its functionality.:3 pcs.
Continuous Operating Temperature:-40 to +80 C
Melting Point:165 C
Yarn Moisture Regain:0%
Resistance to Weak/Strong Acids measured at 25 C ambient temperature:very good/good
Resistance to Weak/Strong Alkalis measured at 25 C ambient temperature:good/bad
Resistance to Organic Solvents measured at 25 C ambient temperature:good
Resistance to Benzine and Greases measured at 25 C ambient temperature:very good
Bending Strength & Abrasion Resistance:good
Weather-Resistance:good
UV-Resistance:300 kly
Tensile Strength After Two Years of Climatic Influences:90%
Customs Tariff No.:56081930
Weight per Unit Area:275 g/m

 Download product data sheet (PDF)



Your satisfaction and safety are very important to us. Regular quality inspections guarantee the high standard of our products. Our nets and fabric are designed to fulfil the most exacting standards and are characterised by their exceptional durability.



Not sure which net thickness is right for your specific purpose or do you perhaps have a different question? Trust our many years' experience and contact us!



 Download product data sheet (PDF)



Technical Specifications
Material:high tenacity polypropylene, knotless
Material Diameter: 5.0 mm
Pose of Meshs:quadratic (square)
Mesh Connection:knotless braid
Edge Design:reinforced selvage cord of approx. 9 mm, with edged rope
Edged Rope:polysteel rope ( 12 mm, white), all around
Max. Tensile Strength of a Mesh necessary force to tear a single mesh (tear resistance):3200 N equal to the weight force of a mass of 326 kilograms
Energy Absorption (approx.) The specifications refer to a test net, which is 3.00 x 3.00 m.:4.8 kJ
Tensile Strength of Edged Rope:30 kN
Standards and Rules:BG regulation no. 179, DGUV standard 101-011, EN 1263-1
Certificate:GS verification certificate 18100013, Oeko-Tex® certificate 12.0.02466
Net Class:A2 Maximum mesh size: 100 mm,
Minimum breaking strength: 4.14 kJ
Safety Net System:S (rope-edged safety net)
Regular Inspection Interval:12 months
Number of Test Meshes Test meshes are rows of meshes which are connected with the net to determine the aging behavior. They can be removed from the net without impairing its functionality.:3 pcs.
Continuous Operating Temperature:-40 to +80 C
Melting Point:165 C
Yarn Moisture Regain:0%
Resistance to Weak/Strong Acids measured at 25 C ambient temperature:very good/good
Resistance to Weak/Strong Alkalis measured at 25 C ambient temperature:good/bad
Resistance to Organic Solvents measured at 25 C ambient temperature:good
Resistance to Benzine and Greases measured at 25 C ambient temperature:very good
Bending Strength & Abrasion Resistance:good
Weather-Resistance:good
UV-Resistance:300 kly
Tensile Strength After Two Years of Climatic Influences:90%
Customs Tariff No.:56081930
Weight per Unit Area:275 g/m

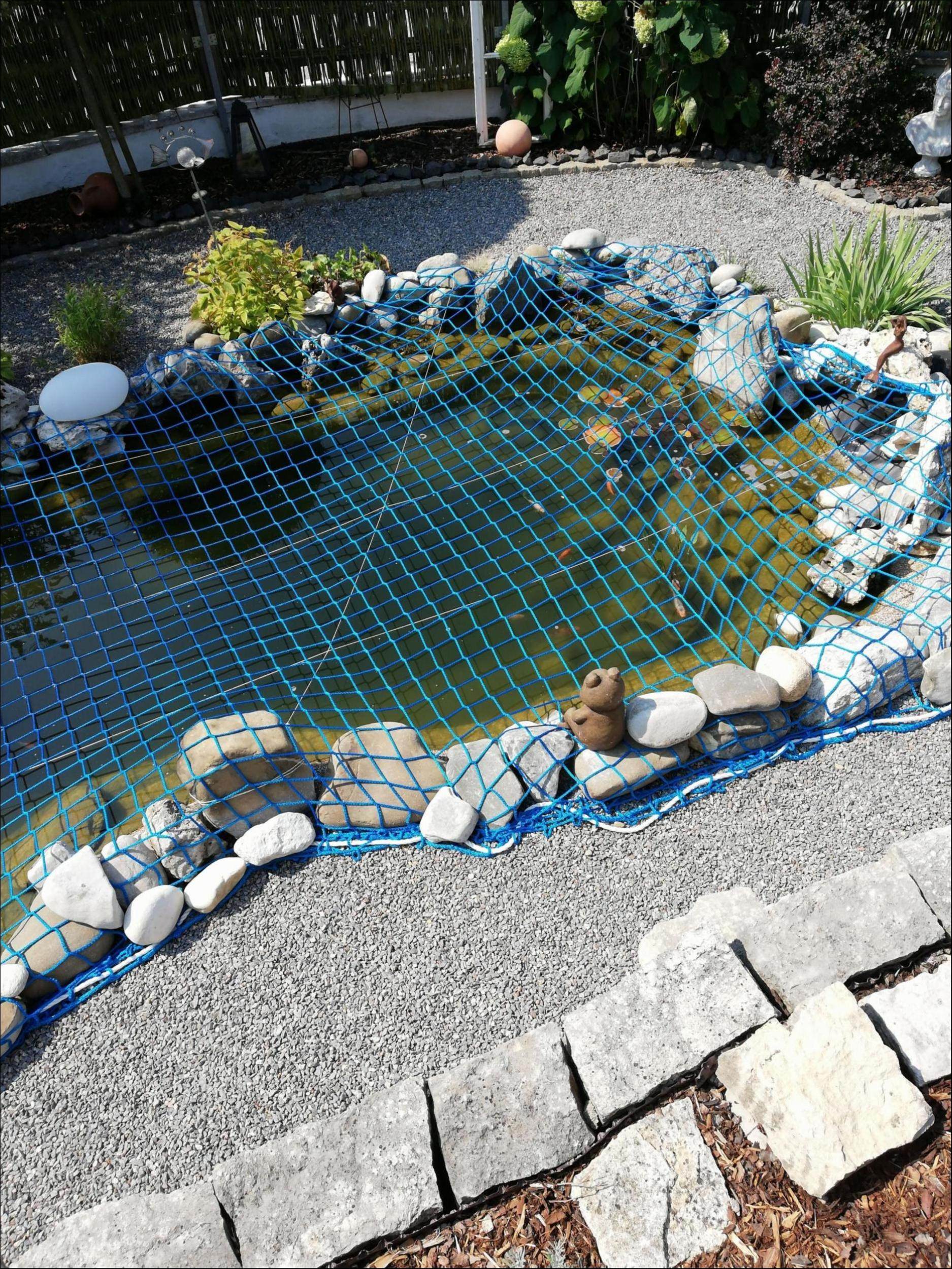

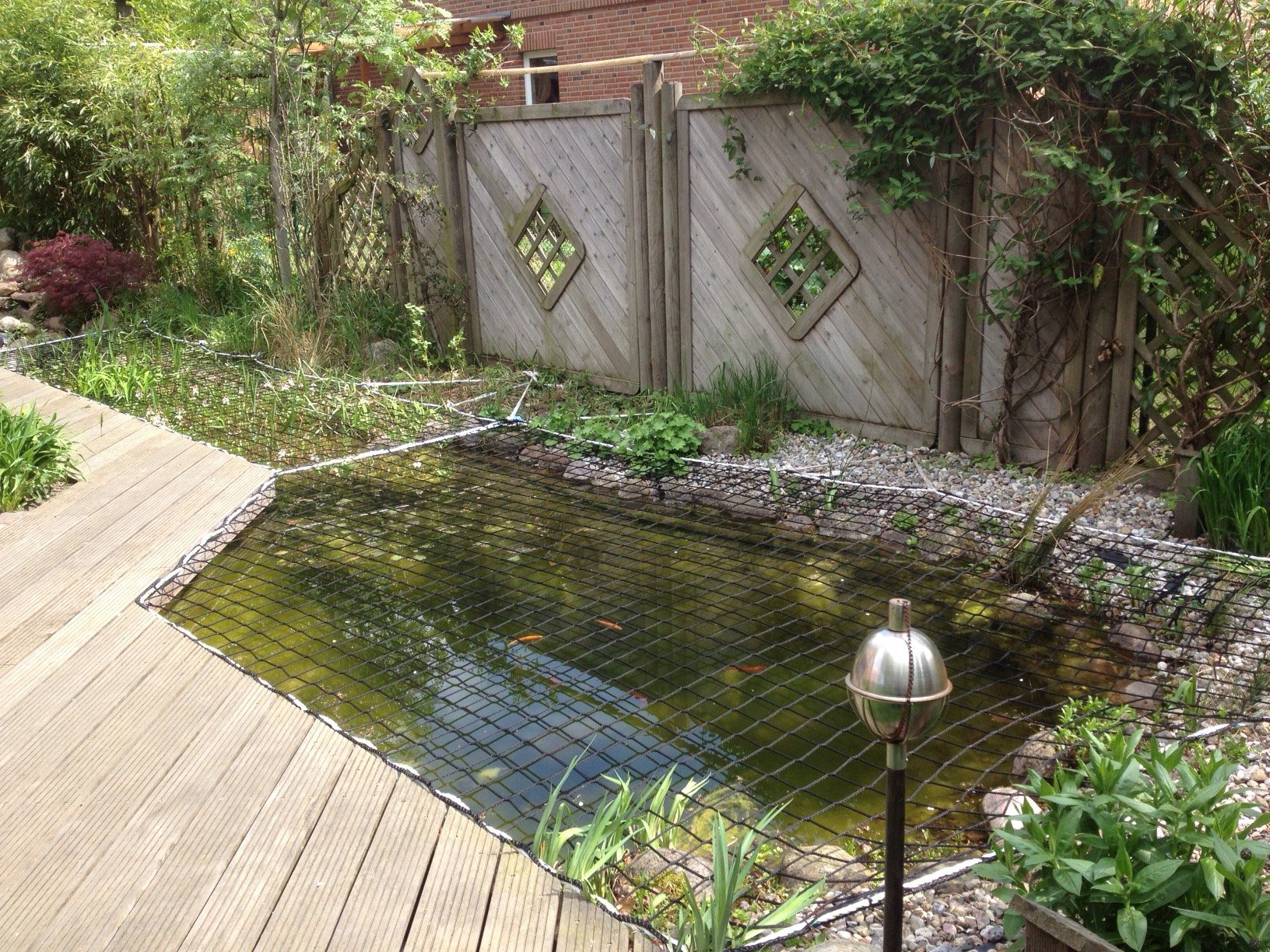

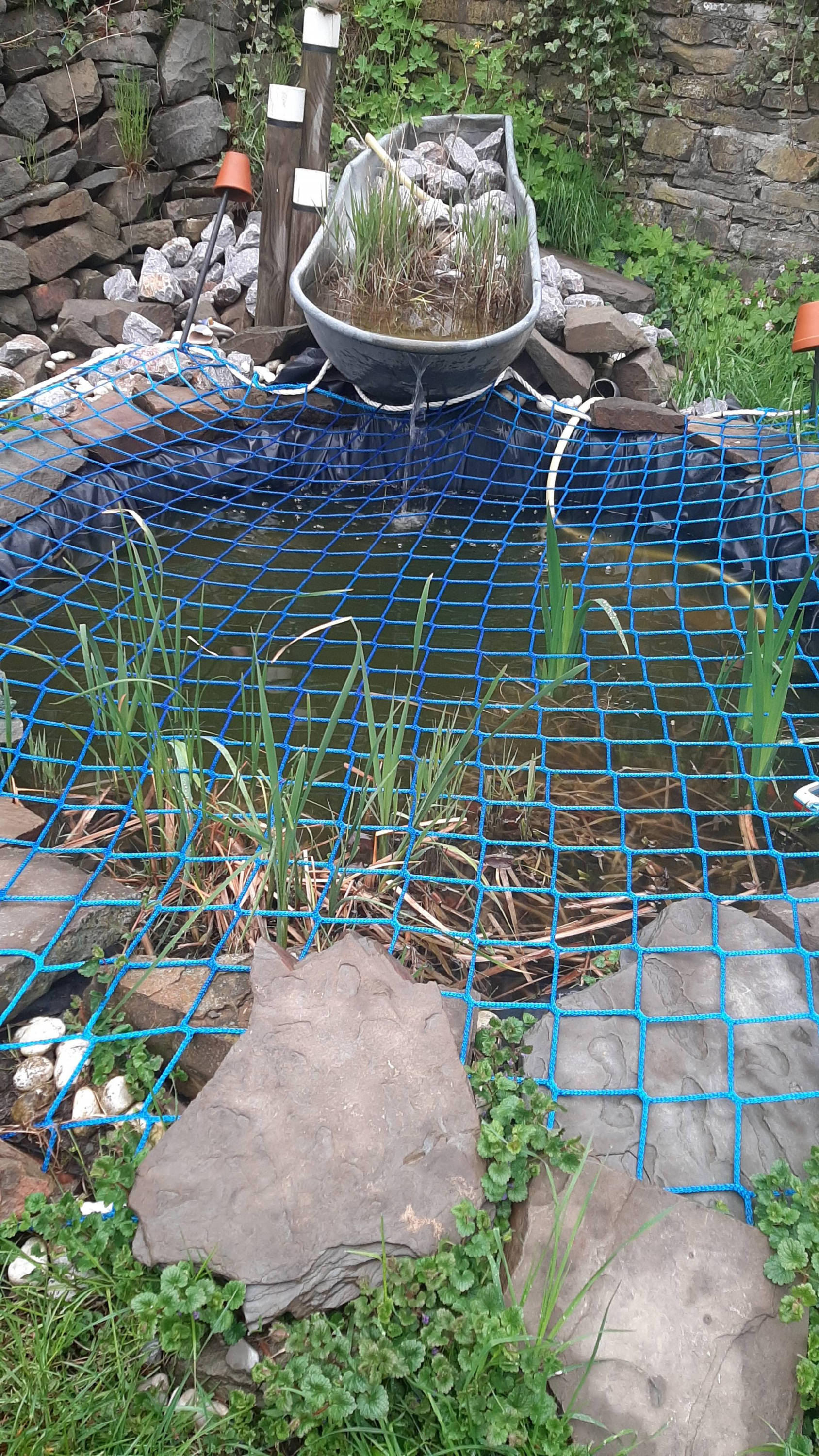

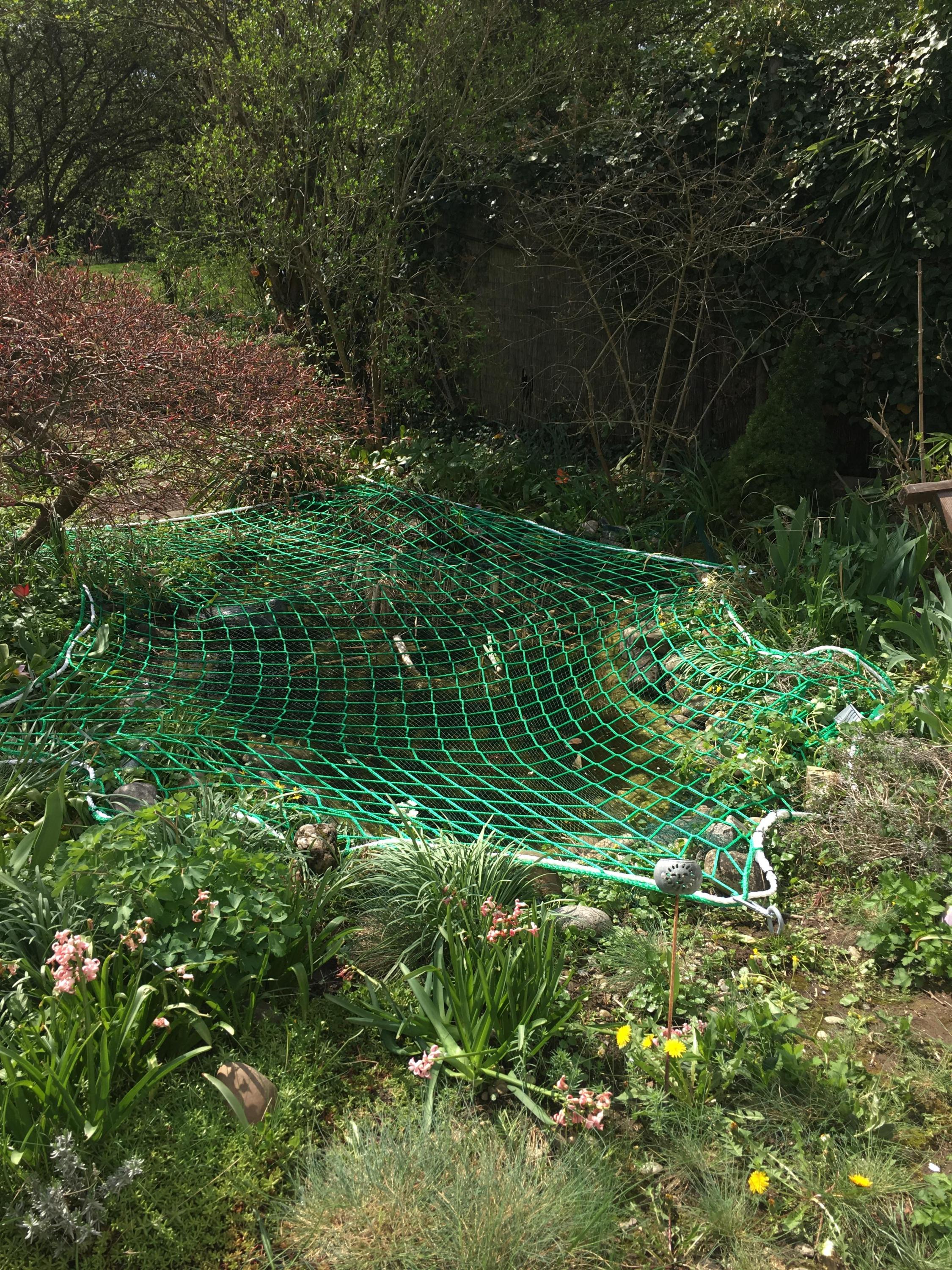

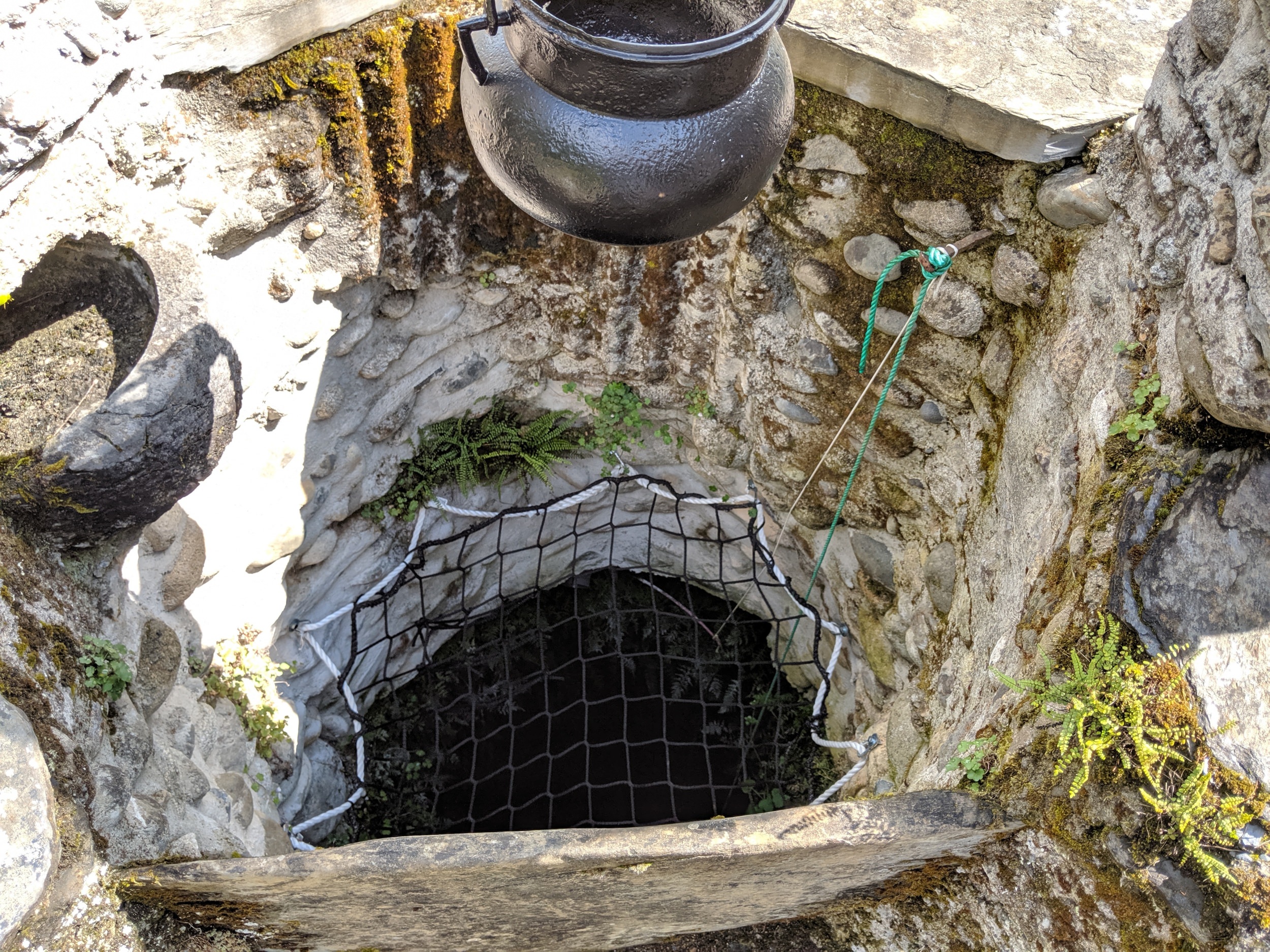

Pictures of our Customers
