Bridge Fuse Netting with Overlay Panel by the m (Custom-Made)

Bridge Safety Net with covering tarpaulin by the m | Safetynet365
Bridge Safety Net with covering tarpaulin by the m | Safetynet365
Bridge Safety Net with covering tarpaulin by the m | Safetynet365
Bridge Safety Net with covering tarpaulin by the m | Safetynet365
Bridge Safety Net with covering tarpaulin by the m | Safetynet365
Bridge Safety Net with covering tarpaulin by the m | Safetynet365
Bridge Safety Net with covering tarpaulin by the m | Safetynet365
Bridge Safety Net with covering tarpaulin by the m | Safetynet365
Bridge Safety Net with covering tarpaulin by the m | Safetynet365
Shipping Time: 13-15 working days
Item No.: 1903-045/720/35000

Customise Your Product

Color of Safety Net:
Color of Fabric Panel:
Width:
cm
Length:
cm
Graduated Prices (for each):
from 1 m:    40,10 €/m
from 5 m:    27,07 €/m
from 10 m:    24,06 €/m
from 20 m:    20,05 €/m
  • Net Area:
  • Price per m: 20,05 €
  • Total Weight:
Qty pcs.
excl. VAT *1 16,85 €incl. VAT *2 20,05 €
Add to cart

  •  Description
  •  Technical Specifications
  •  More Images
  •  Recommendation
  •  Reviews
Description
Geprüfte Sicherheit

Choose one of the above colors and enter the desired length and width into the appropriate fields. The surface area, weight and price of the net will then be automatically calculated and shown.

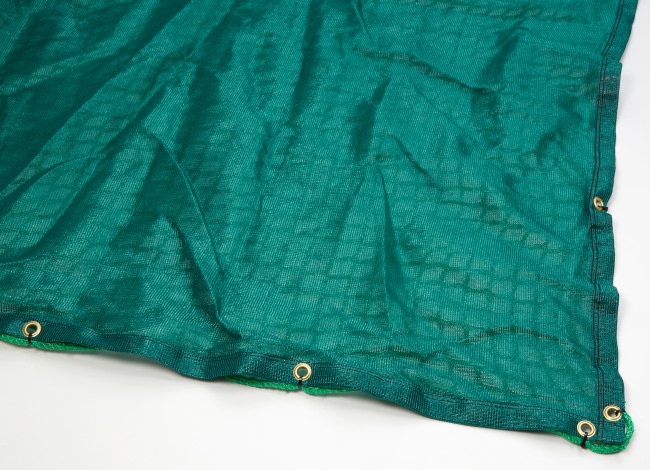

Fall safety net combination with border rope (System S) in conformity with EN 1263-1. The combination with the heavy, air-permeable woven tarpaulin additionally prevents small parts or pieces of concrete from falling. The woven tarpaulin distributes loads evenly on the load-bearing fall safety net.

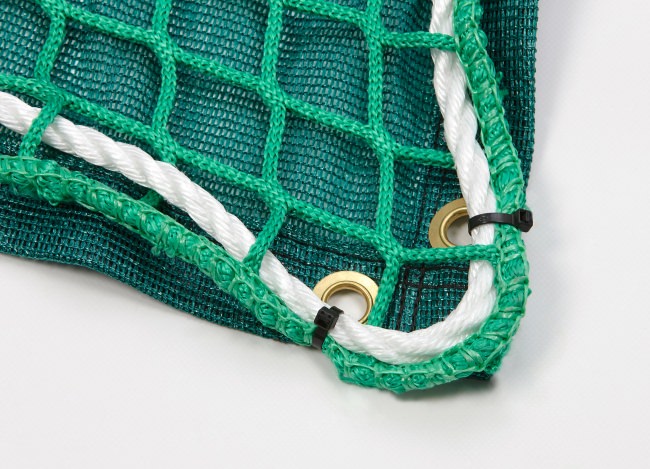

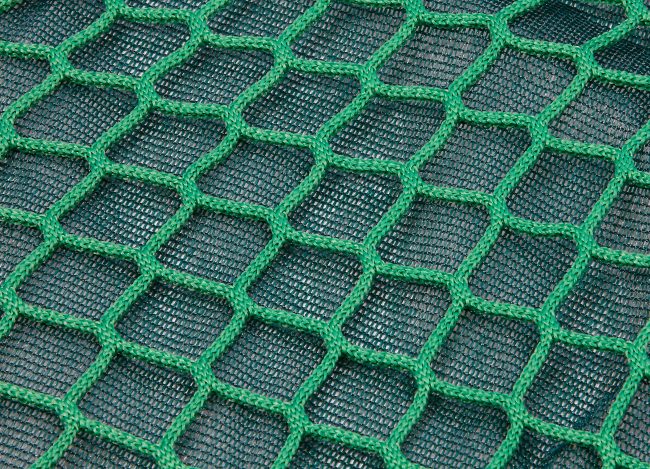

The net has a border measuring approx. 9 mm in thickness all around (see sample picture). An additional rope is sewn/linked to the border mesh. The border gives the net a neat outer edge on all sides and simultaneously ensures stable, stress-resistant anchorage points. The border and all seams are executed in the same color as the net. In addition, fall safety nets are equipped with a 12 mm-thick polysteel rope (30 kN), which is firmly attached to the border. The safety net consists of woven, deep-dyed polypropylene filament yarn, which is a highly tearproof and stable synthetic fibre. Thanks to the knotless weave, which is no less stable than a knotted connection, the net keeps its shape perfectly.



The material is of course 100% non-toxic, and contact with mucus membranes (mouth, eyes) is completely safe as well. Thanks to their weather-resistance and UV-stability, our safety nets are suitable for both outdoor and indoor use.



Technical Specifications
Material:high tenacity polypropylene, knotless, polyethylene
Type of Textile:closemesh fabric panels, air and water permeable
Material Diameter: 5.0 mm
Mesh Size:1 x 3 mm, 45 x 45 mm
Pose of Meshs:quadratic (square)
Mesh Connection:knotless braid
Edge Design:reinforced selvage cord of approx. 9 mm, with edged rope
Edged Rope:polysteel rope ( 12 mm, white), all around
Max. Tensile Strength of a Mesh necessary force to tear a single mesh (tear resistance):3200 N equal to the weight force of a mass of 326 kilograms
Energy Absorption (approx.) The specifications refer to a test net, which is 3.00 x 3.00 m.:9.0 kJ
Tensile Strength of Edged Rope:30 kN
Standards and Rules:BG regulation no. 179, DGUV standard 101-011, EN 1263-1
Certificate:GS verification certificate 18100010, Oeko-Tex® certificate 12.0.02466
Net Class:B1 Maximum mesh size: 60 mm,
Minimum breaking strength: 7.92 kJ
Safety Net System:S (rope-edged safety net)
Regular Inspection Interval:12 months
Number of Test Meshes Test meshes are rows of meshes which are connected with the net to determine the aging behavior. They can be removed from the net without impairing its functionality.:3 pcs.
Weather-Resistance:good
UV-Resistance:300 kly
Customs Tariff No.:56081930
Weight per Unit Area:675 g/m

 Download product data sheet (PDF)



Our building site nets (fall safety nets, guardrail safety nets) are produced in conformity with the currently valid standards and regulations. The nets are certified in conformity with EN 1263-1, approved by the BauBG (German Building Trade Association) and have a test certificate.



Your satisfaction and safety are very important to us. Regular quality inspections guarantee the high standard of our products. Our nets and fabric are designed to fulfil the most exacting standards and are characterised by their exceptional durability.



Not sure which net thickness is right for your specific purpose or do you perhaps have a different question? Trust our many years' experience and contact us!



 Download product data sheet (PDF)



Technical Specifications
Material:high tenacity polypropylene, knotless, polyethylene
Type of Textile:closemesh fabric panels, air and water permeable
Material Diameter: 5.0 mm
Mesh Size:1 x 3 mm, 45 x 45 mm
Pose of Meshs:quadratic (square)
Mesh Connection:knotless braid
Edge Design:reinforced selvage cord of approx. 9 mm, with edged rope
Edged Rope:polysteel rope ( 12 mm, white), all around
Max. Tensile Strength of a Mesh necessary force to tear a single mesh (tear resistance):3200 N equal to the weight force of a mass of 326 kilograms
Energy Absorption (approx.) The specifications refer to a test net, which is 3.00 x 3.00 m.:9.0 kJ
Tensile Strength of Edged Rope:30 kN
Standards and Rules:BG regulation no. 179, DGUV standard 101-011, EN 1263-1
Certificate:GS verification certificate 18100010, Oeko-Tex® certificate 12.0.02466
Net Class:B1 Maximum mesh size: 60 mm,
Minimum breaking strength: 7.92 kJ
Safety Net System:S (rope-edged safety net)
Regular Inspection Interval:12 months
Number of Test Meshes Test meshes are rows of meshes which are connected with the net to determine the aging behavior. They can be removed from the net without impairing its functionality.:3 pcs.
Weather-Resistance:good
UV-Resistance:300 kly
Customs Tariff No.:56081930
Weight per Unit Area:675 g/m

Recommended Accessory:

Cross Rope 12 mm - Fixed-Length Coil
excl. VAT *1102,30 €incl. VAT *2121,74 €
Heavy-Duty Anchor Bolt M12 with Eyelet
excl. VAT *16,39 €incl. VAT *27,60 €
Safety Snap Hook 120 x 11 mm
excl. VAT *11,60 €incl. VAT *21,90 €
Steel Cable 6 mm - Available by the Meter
excl. VAT *1starting at 1,89 € / m incl. VAT *2starting at 2,25 € / m
Steel Cable 5/7 mm (PVC-Coated) - Available by the Meter
excl. VAT *1starting at 1,97 € / m incl. VAT *2starting at 2,35 € / m
Thimbles and Turnbuckles M10 (Pair)
excl. VAT *124,33 €incl. VAT *228,95 €
