Guardrail Net by the m² (Custom-Made)

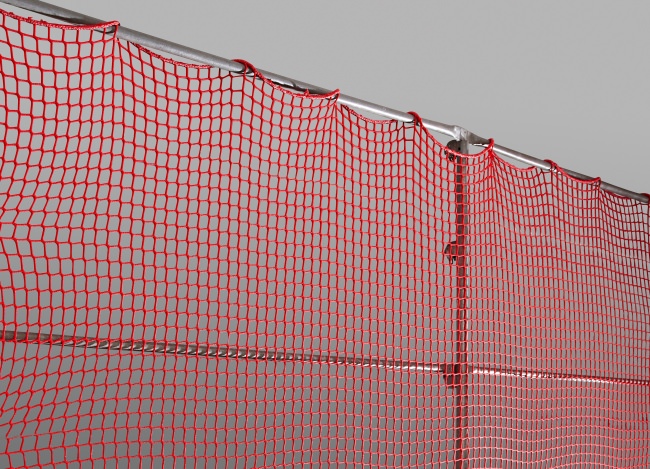

Scaffolding Safety Net pursuant to EN 1263-1 by the m² (Custom-Made) | Safetynet365

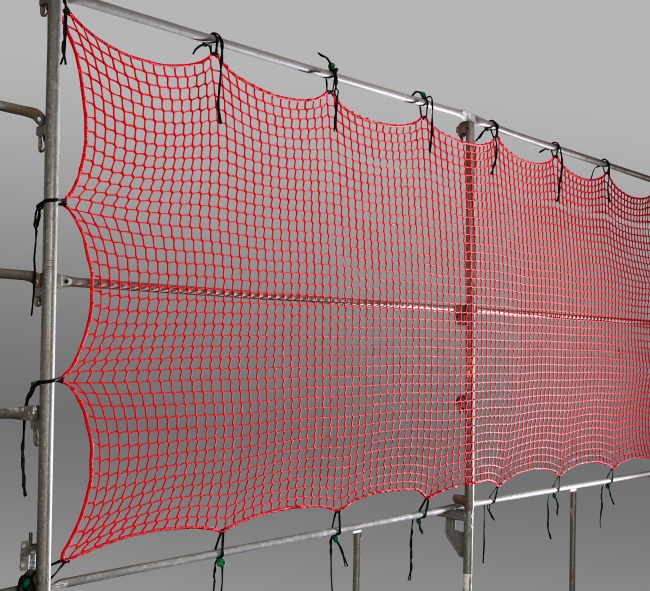

Scaffolding Safety Net pursuant to EN 1263-1 by the m² (Custom-Made) | Safetynet365

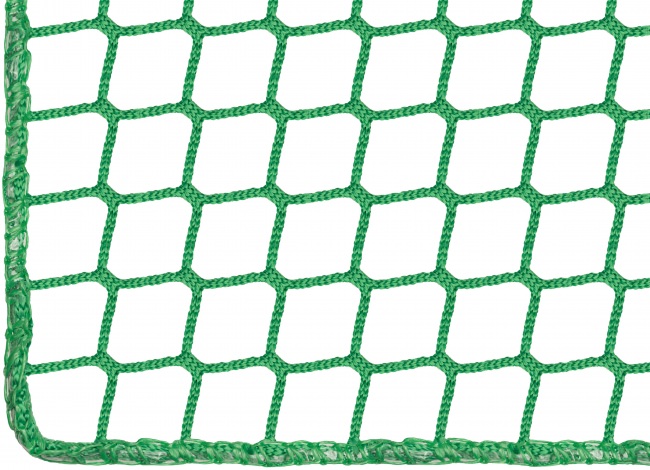

Scaffolding Safety Net pursuant to EN 1263-1 by the m² (Custom-Made) | Safetynet365

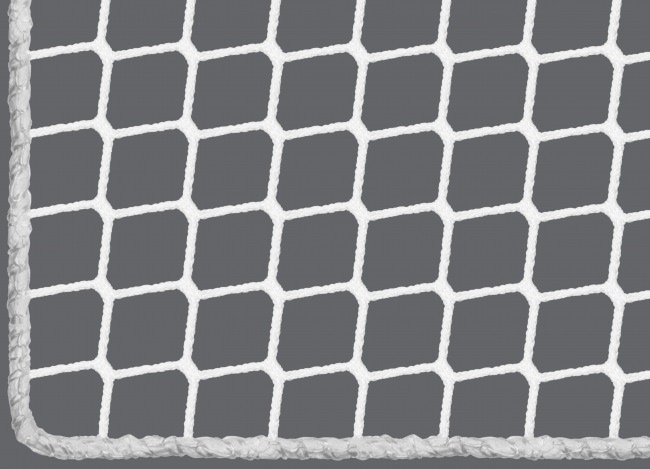

Scaffolding Safety Net pursuant to EN 1263-1 by the m² (Custom-Made) | Safetynet365

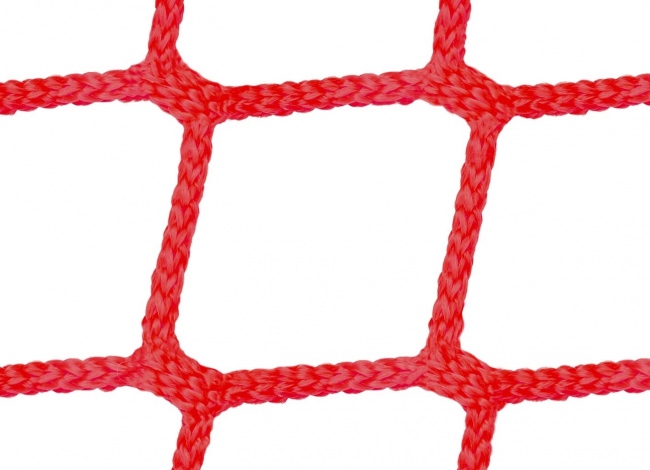

Scaffolding Safety Net pursuant to EN 1263-1 by the m² (Custom-Made) | Safetynet365

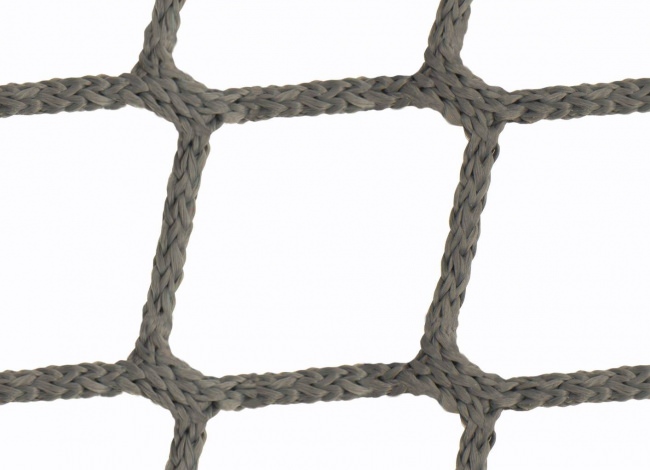

Scaffolding Safety Net pursuant to EN 1263-1 by the m² (Custom-Made) | Safetynet365
Scaffolding Safety Net pursuant to EN 1263-1 by the m² (Custom-Made) | Safetynet365
Scaffolding Safety Net pursuant to EN 1263-1 by the m² (Custom-Made) | Safetynet365
Scaffolding Safety Net pursuant to EN 1263-1 by the m² (Custom-Made) | Safetynet365
Scaffolding Safety Net pursuant to EN 1263-1 by the m² (Custom-Made) | Safetynet365
Scaffolding Safety Net pursuant to EN 1263-1 by the m² (Custom-Made) | Safetynet365
Scaffolding Safety Net pursuant to EN 1263-1 by the m² (Custom-Made) | Safetynet365
Scaffolding Safety Net pursuant to EN 1263-1 by the m² (Custom-Made) | Safetynet365
Scaffolding Safety Net pursuant to EN 1263-1 by the m² (Custom-Made) | Safetynet365
Scaffolding Safety Net pursuant to EN 1263-1 by the m² (Custom-Made) | Safetynet365
Scaffolding Safety Net pursuant to EN 1263-1 by the m² (Custom-Made) | Safetynet365
Scaffolding Safety Net pursuant to EN 1263-1 by the m² (Custom-Made) | Safetynet365
Scaffolding Safety Net pursuant to EN 1263-1 by the m² (Custom-Made) | Safetynet365
Shipping Time: 16-18 working days
Item No.: 3000-045
Customise Your Product
Color(Please select)
excl. VAT *1 40,00 € incl. VAT *2 47,60 €
Add to cart

  •  Details
  •  Technical Specifications
  •  More images
  •  Recommendation
  •  Reviews

Description

DGUV

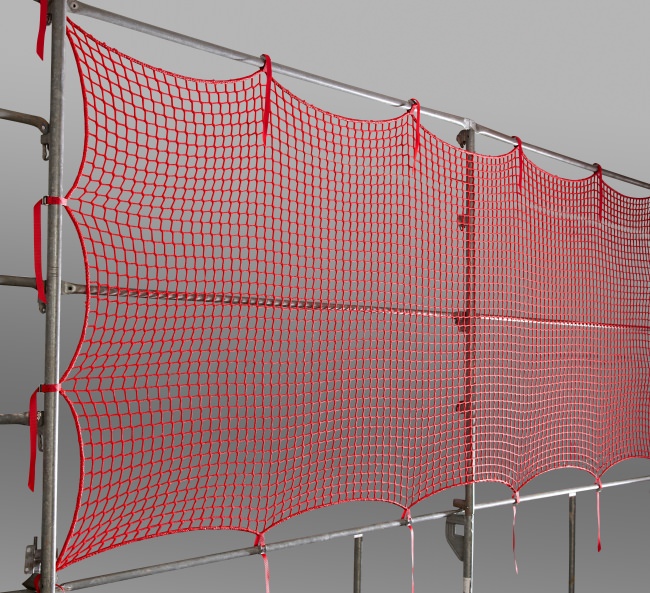

Guardrail safety net in conformity with EN 1263-1 and DGUV information 201-011 with linked-on border rope (safety net system U)



Configure your own individual made-to-measure guardrail safety net. Choose one of the above colors and enter the desired length and width into the appropriate fields. The surface area, weight and price of the net will then be automatically calculated and shown.

Guardrail safety nets and nets in roof safety scaffolding must conform to EN 1263-1 and the DGUV information 201-011. These nets are designated ‘Safety Net System U’ (safety net in supporting constructions for vertical use). When deploying nets, the intermediate rail can be dispensed with. Our guardrail safety nets fulfil all the necessary legal requirements and are characterised by the highest quality and durability.

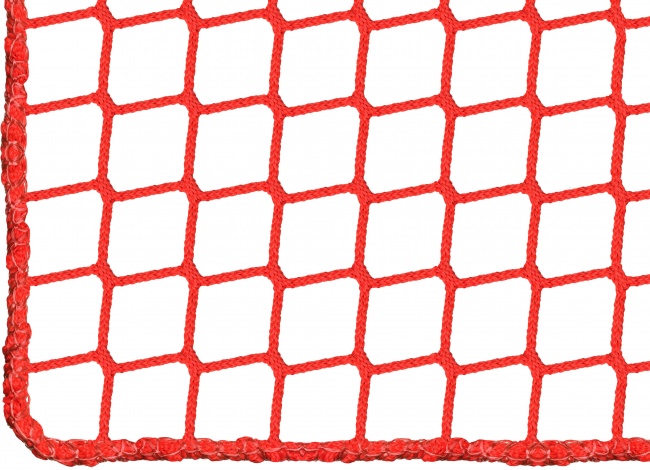

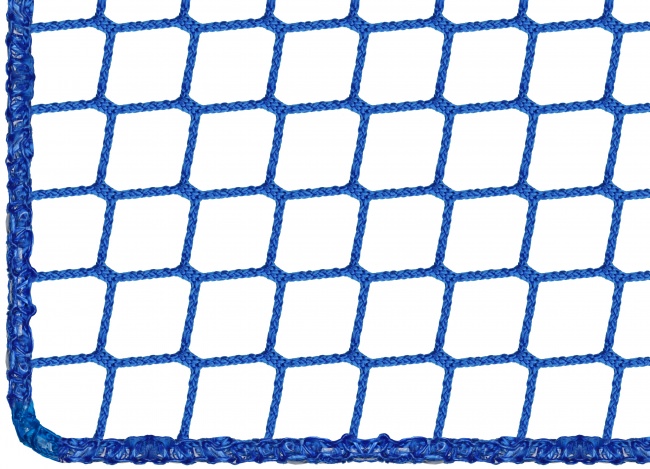

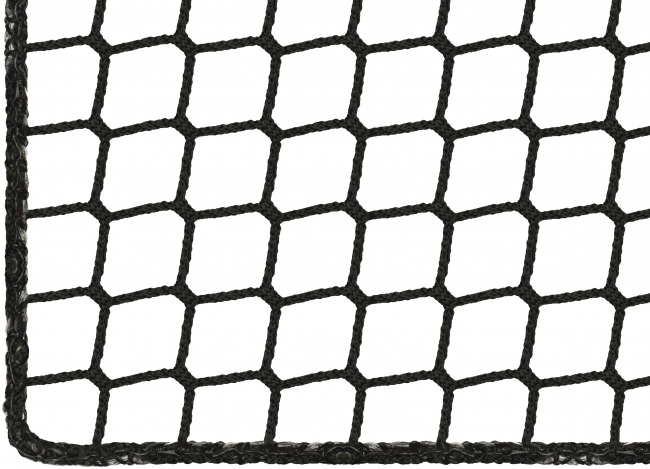

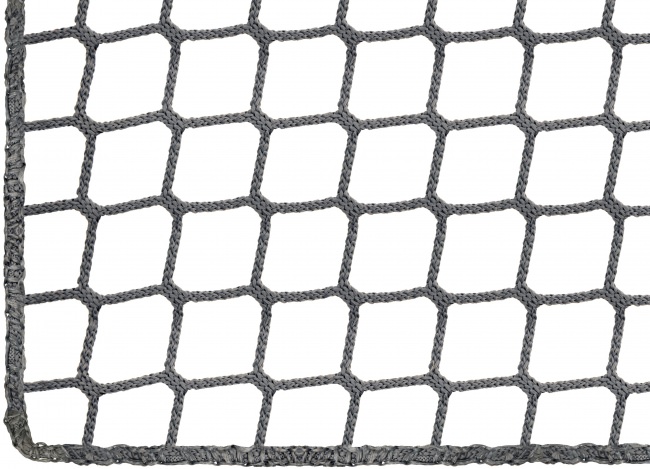

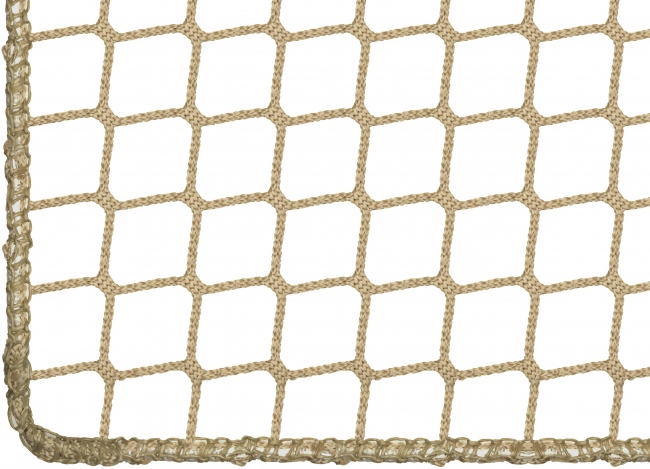

The net has a border measuring approx. 9 mm in thickness all around (see sample picture). An additional rope is sewn/linked to the border meshes. The border gives the net a neat outer edge on all sides while simultaneously providing stable, stress-resistant anchorage points. The border and all seams are executed in the same color as the net.

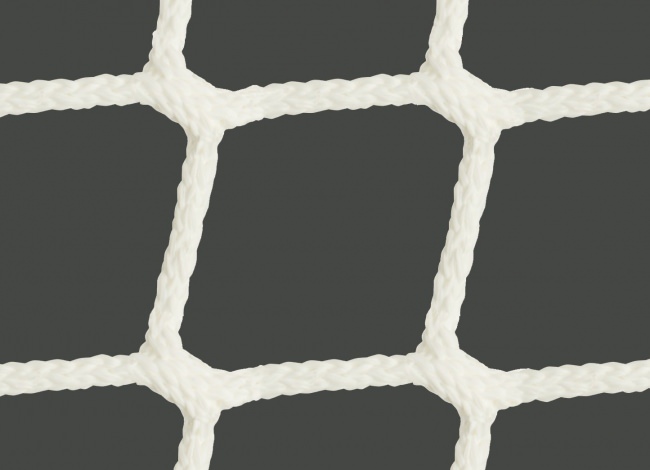

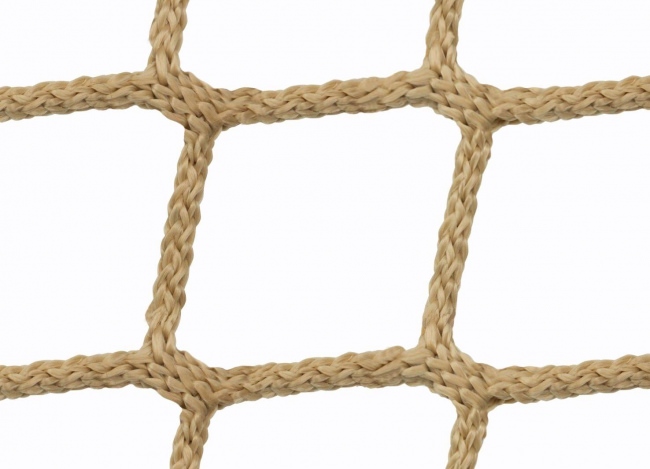

The safety net consists of woven, deep-dyed polypropylene filament yarn. This is a highly tearproof and stable synthetic fibre. Thanks to the knotless weave, which is no less stable than a knotted connection, the net keeps its shape perfectly.

The material is of course 100% non-toxic, and contact with mucus membranes (mouth, eyes) is completely safe as well. Thanks to their weather-resistance and UV-stability, our safety nets are suitable for both outdoor and indoor use.



Technical Specifications
Material:high tenacity polypropylene, knotless
Material Diameter:Ø 5.0 mm
Mesh Size:45 x 45 mm
Pose of Meshs:quadratic (square)
Mesh Connection:knotless braid
Edge Design:reinforced selvage cord of approx. 9 mm, with integral surround rope (sewn)
Max. Tensile Strength of a Mesh necessary force to tear a single mesh (tear resistance):3200 N equal to the weight force of a mass of 326 kilograms
Energy Absorption (approx.) The specifications refer to a test net, which is 3.00 x 3.00 m.:9.0 kJ
Densile Breaking Force Referred to Density:7.0 cN/den
Breaking Elongation of Filament:15%
Standards and Rules:BG regulation no. 179, DGUV information 101-011, DGUV information 201-023, EN 1263-1
Certificate:BG Eurotest verification certificate 18100020, Oeko-Tex® certificate 12.0.02466
Net Class:B1 Maximum mesh size: 60 mm,
Minimum breaking strength: 7.92 kJ
Safety Net System:U (safety net in load-bearing construction for vertical use)
Regular Inspection Interval:12 months
Number of Test Meshes Test meshes are rows of meshes which are connected with the net to determine the aging behavior. They can be removed from the net without impairing its functionality.:3 pcs.
Continuous Operating Temperature:-40 to +80 °C
Melting Point:165 °C
Washing Temperature (max.):30 °C
Yarn Moisture Regain:0%
Tensile Strength Reduction Because Of Moisture:0%
Resistance to Weak/Strong Acids measured at 25 °C ambient temperature:very good/good
Resistance to Weak/Strong Alkalis measured at 25 °C ambient temperature:good/not good
Resistance to Organic Solvents measured at 25 °C ambient temperature:good
Resistance to Benzine and Greases measured at 25 °C ambient temperature:very good
Bending Strength & Abrasion Resistance:good
Weather-Resistance:good
UV-Resistance:300 kly
Tensile Strength After Two Years of Climatic Influences:90%
Elasticity After Years of Climatic Influences:good long-term flexibility, little elongation
Flexibility When Used in Water:stays flexible
Contraction When Used in Water:low contraction
Contraction When Used Outside:no contraction
Behavior in High Heat / Fire:melting
Electrical Characteristics:isolating, no electrical conductivity
Customs Tariff No.:56081930
Weight per Unit Area:450 g/m²

Download product data sheet (PDF)



Our building site nets (fall safety nets, guardrail safety nets) are produced in conformity with the currently valid standards and regulations. The nets are certified in conformity with EN 1263-1, approved by the BauBG (German Building Trade Association) and have a test certificate.



Your satisfaction and safety are very important to us. Regular quality inspections guarantee the high standard of our products. Our nets and fabric are designed to fulfil the most exacting standards and are characterised by their exceptional durability.



Not sure which net thickness is right for your specific purpose or do you perhaps have a different question? Trust our many years' experience and contact us!



Download product data sheet (PDF)



Technical Specifications
Material:high tenacity polypropylene, knotless
Material Diameter:Ø 5.0 mm
Mesh Size:45 x 45 mm
Pose of Meshs:quadratic (square)
Mesh Connection:knotless braid
Edge Design:reinforced selvage cord of approx. 9 mm, with integral surround rope (sewn)
Max. Tensile Strength of a Mesh necessary force to tear a single mesh (tear resistance):3200 N equal to the weight force of a mass of 326 kilograms
Energy Absorption (approx.) The specifications refer to a test net, which is 3.00 x 3.00 m.:9.0 kJ
Densile Breaking Force Referred to Density:7.0 cN/den
Breaking Elongation of Filament:15%
Standards and Rules:BG regulation no. 179, DGUV information 101-011, DGUV information 201-023, EN 1263-1
Certificate:BG Eurotest verification certificate 18100020, Oeko-Tex® certificate 12.0.02466
Net Class:B1 Maximum mesh size: 60 mm,
Minimum breaking strength: 7.92 kJ
Safety Net System:U (safety net in load-bearing construction for vertical use)
Regular Inspection Interval:12 months
Number of Test Meshes Test meshes are rows of meshes which are connected with the net to determine the aging behavior. They can be removed from the net without impairing its functionality.:3 pcs.
Continuous Operating Temperature:-40 to +80 °C
Melting Point:165 °C
Washing Temperature (max.):30 °C
Yarn Moisture Regain:0%
Tensile Strength Reduction Because Of Moisture:0%
Resistance to Weak/Strong Acids measured at 25 °C ambient temperature:very good/good
Resistance to Weak/Strong Alkalis measured at 25 °C ambient temperature:good/not good
Resistance to Organic Solvents measured at 25 °C ambient temperature:good
Resistance to Benzine and Greases measured at 25 °C ambient temperature:very good
Bending Strength & Abrasion Resistance:good
Weather-Resistance:good
UV-Resistance:300 kly
Tensile Strength After Two Years of Climatic Influences:90%
Elasticity After Years of Climatic Influences:good long-term flexibility, little elongation
Flexibility When Used in Water:stays flexible
Contraction When Used in Water:low contraction
Contraction When Used Outside:no contraction
Behavior in High Heat / Fire:melting
Electrical Characteristics:isolating, no electrical conductivity
Customs Tariff No.:56081930
Weight per Unit Area:450 g/m²

More Images

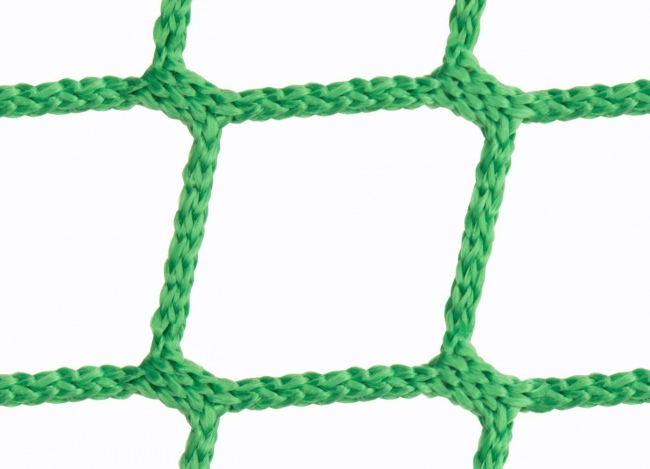

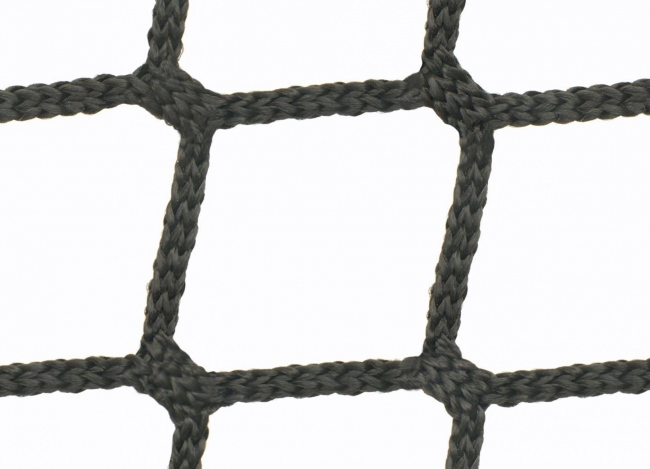

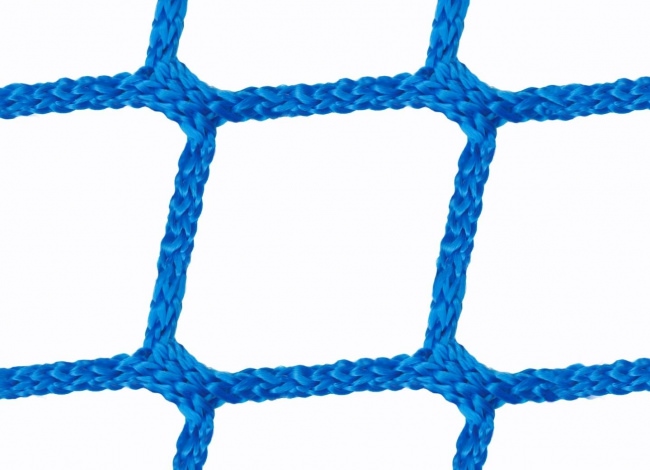

Scaffolding Safety Net pursuant to EN 1263-1 by the m² (Custom-Made) | Safetynet365
Scaffolding Safety Net pursuant to EN 1263-1 by the m² (Custom-Made) | Safetynet365
Scaffolding Safety Net pursuant to EN 1263-1 by the m² (Custom-Made) | Safetynet365
Scaffolding Safety Net pursuant to EN 1263-1 by the m² (Custom-Made) | Safetynet365
Scaffolding Safety Net pursuant to EN 1263-1 by the m² (Custom-Made) | Safetynet365
Scaffolding Safety Net pursuant to EN 1263-1 by the m² (Custom-Made) | Safetynet365
Scaffolding Safety Net pursuant to EN 1263-1 by the m² (Custom-Made) | Safetynet365
Scaffolding Safety Net pursuant to EN 1263-1 by the m² (Custom-Made) | Safetynet365
Scaffolding Safety Net pursuant to EN 1263-1 by the m² (Custom-Made) | Safetynet365
Scaffolding Safety Net pursuant to EN 1263-1 by the m² (Custom-Made) | Safetynet365
Scaffolding Safety Net pursuant to EN 1263-1 by the m² (Custom-Made) | Safetynet365
Scaffolding Safety Net pursuant to EN 1263-1 by the m² (Custom-Made) | Safetynet365
Scaffolding Safety Net pursuant to EN 1263-1 by the m² (Custom-Made) | Safetynet365
Scaffolding Safety Net pursuant to EN 1263-1 by the m² (Custom-Made) | Safetynet365
Scaffolding Safety Net pursuant to EN 1263-1 by the m² (Custom-Made) | Safetynet365
Scaffolding Safety Net pursuant to EN 1263-1 by the m² (Custom-Made) | Safetynet365
Scaffolding Safety Net pursuant to EN 1263-1 by the m² (Custom-Made) | Safetynet365



Pictures of our Customers

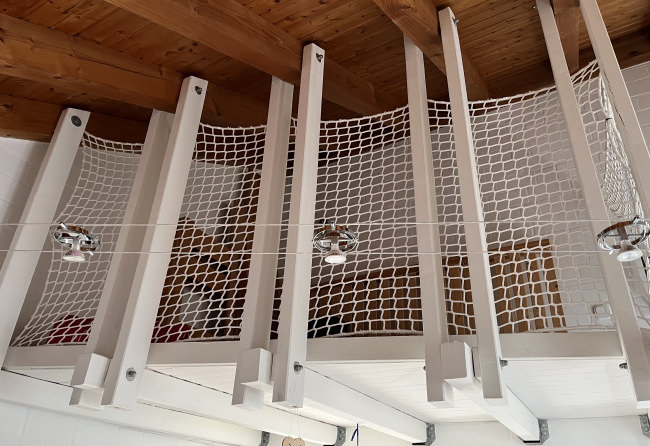

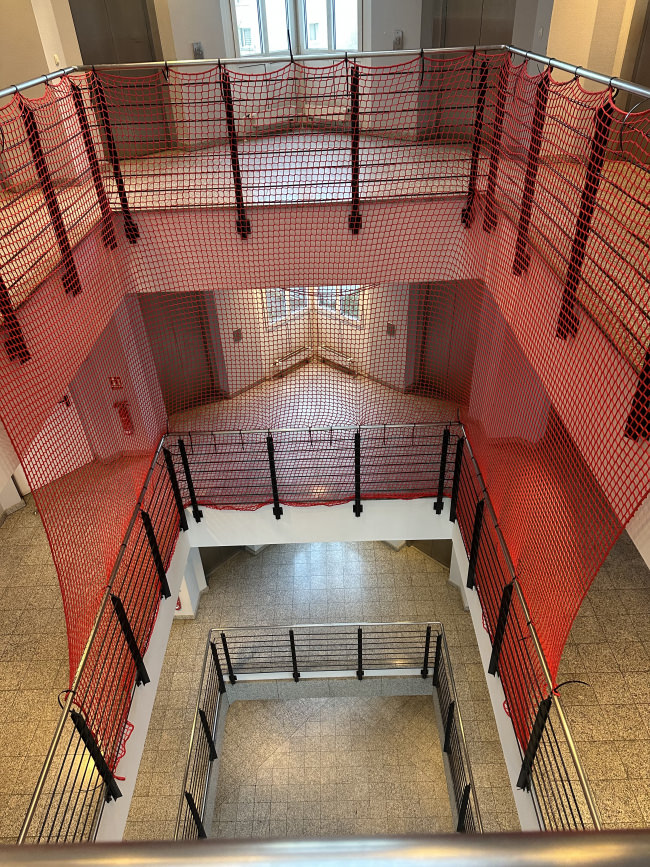

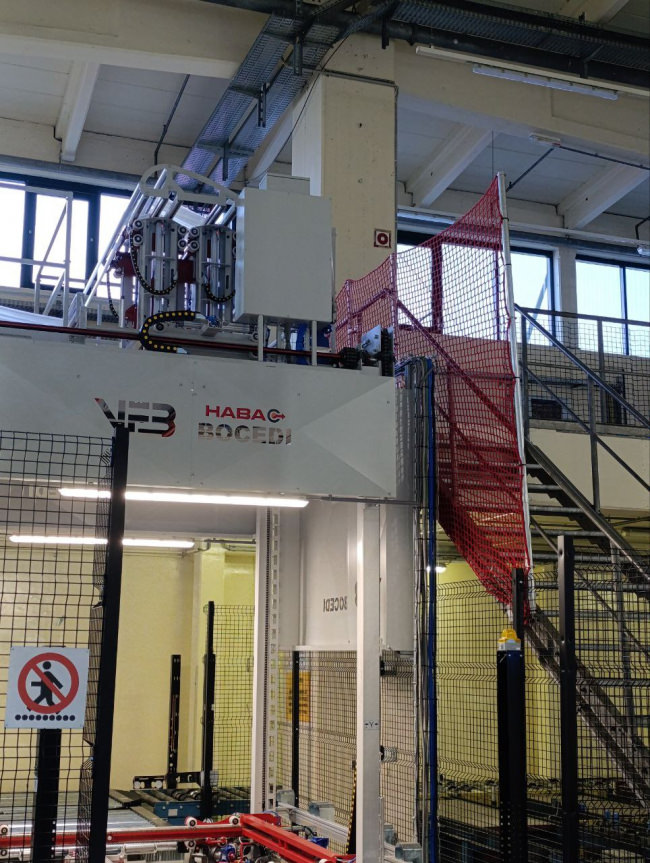

Kundenfoto von Scaffolding Safety Net pursuant to EN 1263-1 by the m² (Custom-Made)

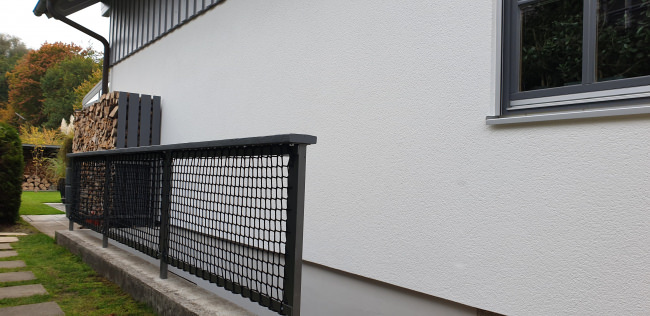

Kundenfoto von Scaffolding Safety Net pursuant to EN 1263-1 by the m² (Custom-Made)
Kundenfoto von Scaffolding Safety Net pursuant to EN 1263-1 by the m² (Custom-Made)
Kundenfoto von Scaffolding Safety Net pursuant to EN 1263-1 by the m² (Custom-Made)

Recommended accessory

Quick-Release Strap Fastener, Sewn to the Selvage Cord
excl. VAT *12,10 €incl. VAT *22,50 €
Quick-Release Strap Fastener
excl. VAT *1starting at1,90 €incl. VAT *2starting at2,26 €
Isilink Clip EN 1263-1
excl. VAT *10,95 €incl. VAT *21,13 €
Scaffolding Cord
excl. VAT *11,15 €incl. VAT *21,37 €
Nylon Rope 8 mm - Available by the Meter
excl. VAT *1starting at1,13 € / mincl. VAT *2starting at1,35 € / m
Lashing Cord for Scaffolding Nets - Spool
excl. VAT *172,02 €incl. VAT *285,70 €
Storage Bag
excl. VAT *111,43 €incl. VAT *213,60 €

Customer Reviews

  -  16/11/2022

Wir haben mit dem Schutznetz die Spiel- und Schlaf-Empore unseres Jüngsten abgesichert. Nachdem er mit seinen gut zwei Jahren das Klettern für sich entdeckt hat, groß genug war um alleine die Leiter hinauf zu kommen und damit auch wiederholt oben auf der Empore stand und freudig herunter winkte, haben wir zügig das Schutznetz bestellt und angebracht. Wir haben es so befestigt, dass am Leiterende der Zugang geöffnet und geschlossen werden kann, damit ist er oben jetzt safe. Qualität super, Verarbeitung super, gutes Gefühl wenn der kleine Mann oben rumtanzt. :-)

  -  20/03/2023

Das Produkt wurde schnell und gut verpackt geliefert.
Wie beschrieben, ist das Netz sehr robust und solide verarbeitet.

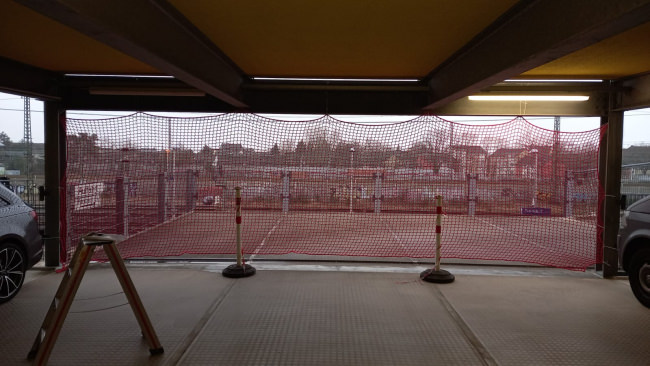

Aufgrund von Arbeiten, muss das oberste Parkdeck einer Hochgarage abgesperrt werden.
Das Netz konnte genau auf Maß bestellt werden, wodurch die Montage sehr einfach von statten ging.
Auch jetzt nach einigen Regentagen uns Stürmen, ist das Netz Formstabil und sieht aus wie am ersten Tag.
Die Beratung, die Ware und der Ablauf sind sehr zu empfehlen.

  -  27/02/2020

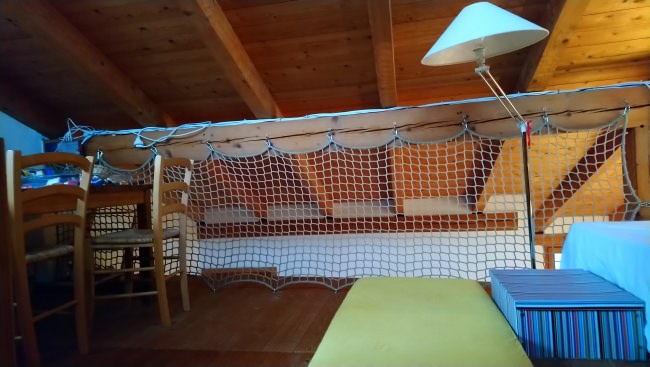

Die super Lösung für unseren eingezogenen Dachboden. In ca 9 Meter Höhe ist ungesichertes spielen für die kleinen Besucher nicht erlaubt. Zur Freude unserer Enkel darf nun auf der gemütlichen Empore ungestört und sicher gespielt werden. Außerdem vermittelt das Material eine Seeräuber-Stimmung und ist unbedenklich, ohne Geruch oder abfärbung. Farbe passt gut zu unserem Holz.
