Ski Slope Safety Net S2 by the m² (Custom-Made)

Ski Piste Safety Net S2 by the m² (Custom-Made) | Safetynet365
Ski Piste Safety Net S2 by the m² (Custom-Made) | Safetynet365
Ski Piste Safety Net S2 by the m² (Custom-Made) | Safetynet365
Ski Piste Safety Net S2 by the m² (Custom-Made) | Safetynet365
Ski Piste Safety Net S2 by the m² (Custom-Made) | Safetynet365
Ski Piste Safety Net S2 by the m² (Custom-Made) | Safetynet365
Shipping Time: 26-28 working days
Item No.: 3000-070
Customise Your Product
Color(Please select)
excl. VAT *1 35,63 € incl. VAT *2 42,40 €
Add to cart

  •  Details
  •  Technical Specifications
  •  More images
  •  Reviews

Description

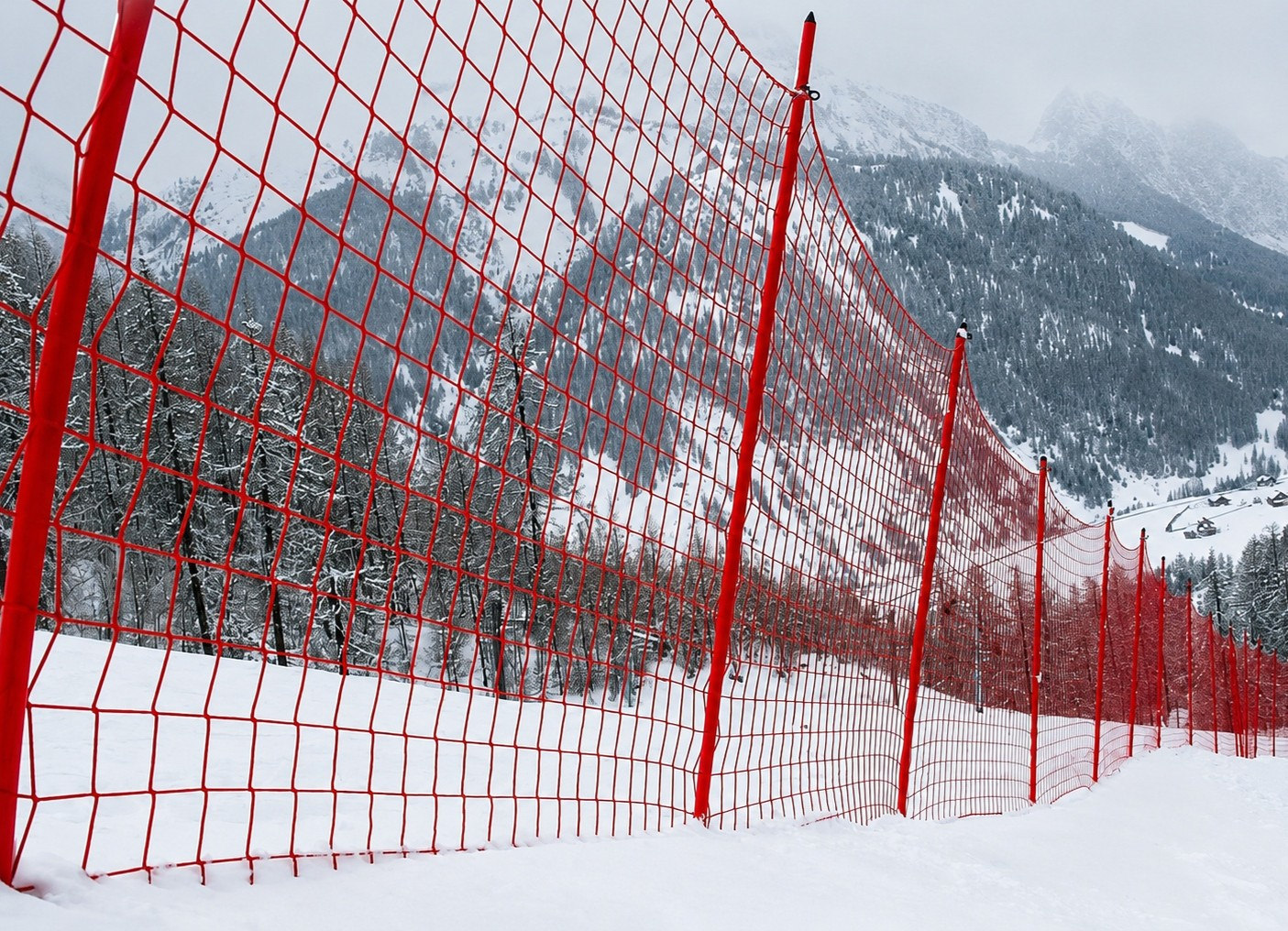

Ski piste safety nets in conformity with NF S 52-106 for flexible posts (Safety Net System S2)



The minimum height for S1 and S2 ski piste safety nets is 1.30 m.



The requirements for ski piste safety nets are regulated by the FIS. Besides a max. permissible mesh size of 100 mm, they must also be able to catch skiers who ski into the net at a certain speed. However, as there are no standardised testing procedures nor European standard for these requirements, the nets have been developed and tested in conformity with the French national standard NF S 52-106 (manufacture of nets for safety equipment). The minimum requirements for the energy absorption capacity of the nets are thereby based on EN 1263-1 (fall safety nets). Our ski piste nets fulfil all the necessary requirements and are characterised by the highest quality and durability.

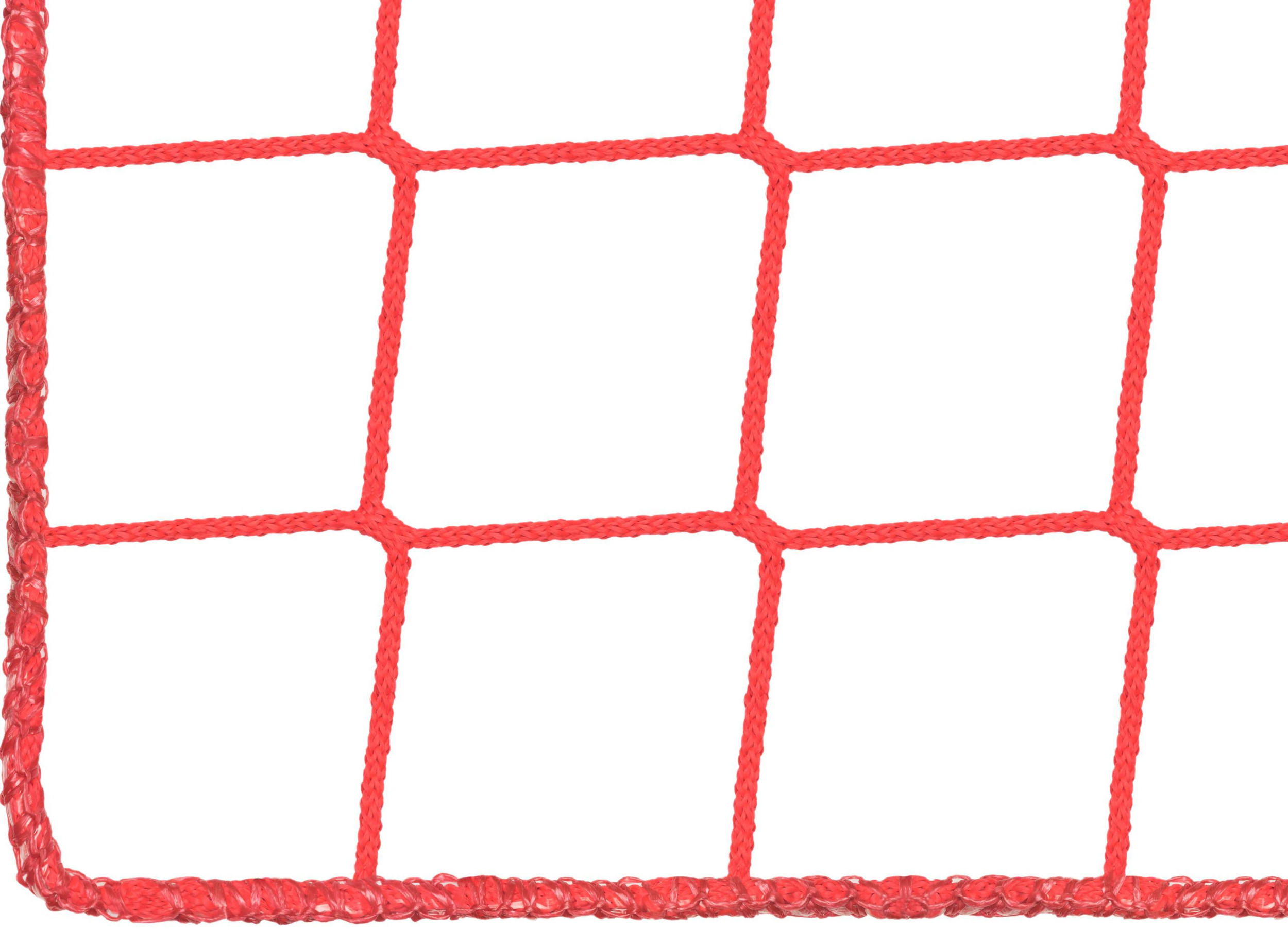

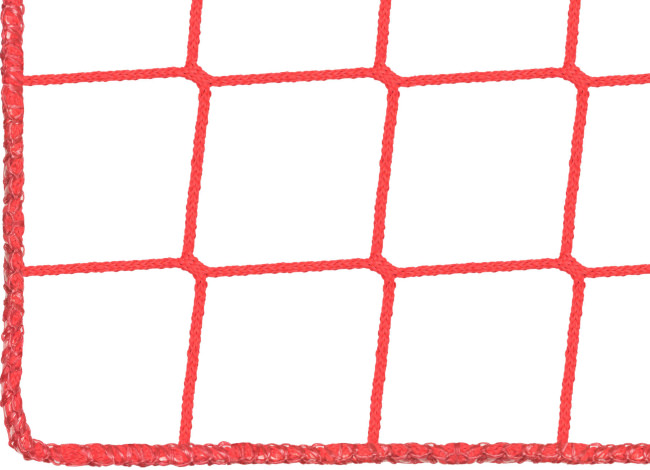

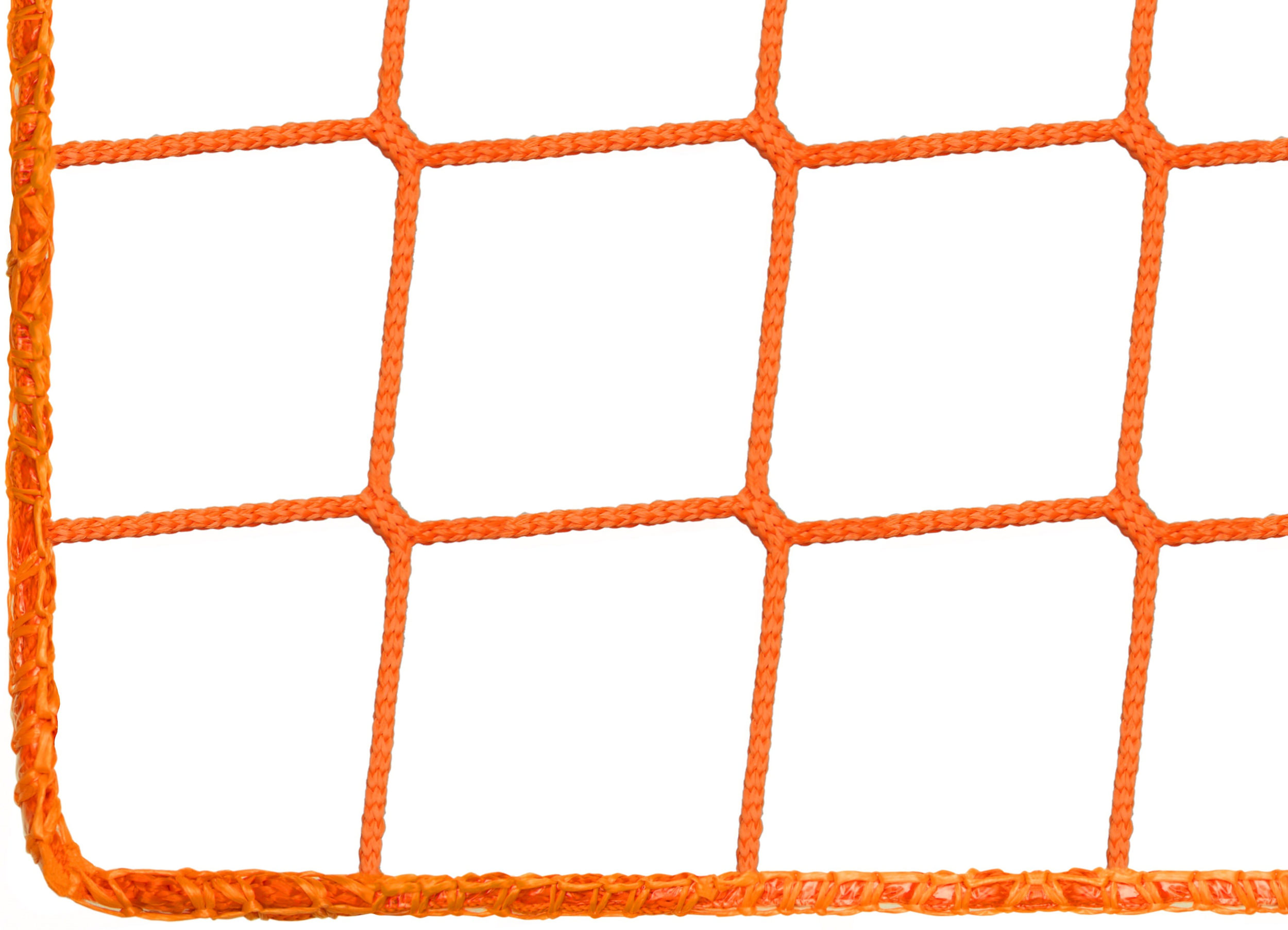

The net has a border measuring approx. 9 mm in thickness all around (see sample picture). An additional rope is sewn/linked to the border mesh. The border gives the net a neat outer edge on all sides and simultaneously ensures stable, stress-resistant anchorage points. The border and all seams are executed in the same color as the net.

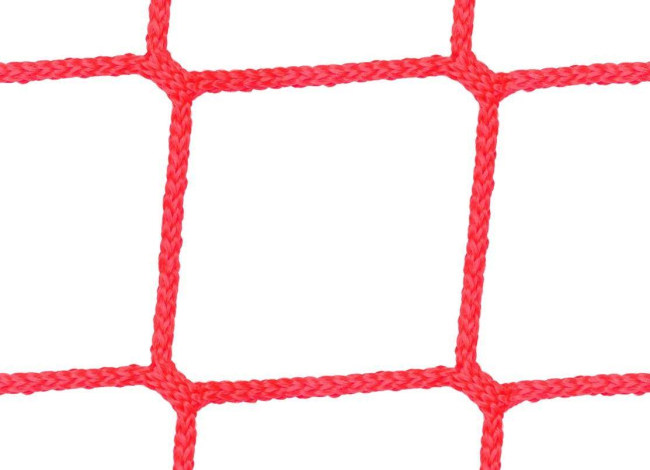

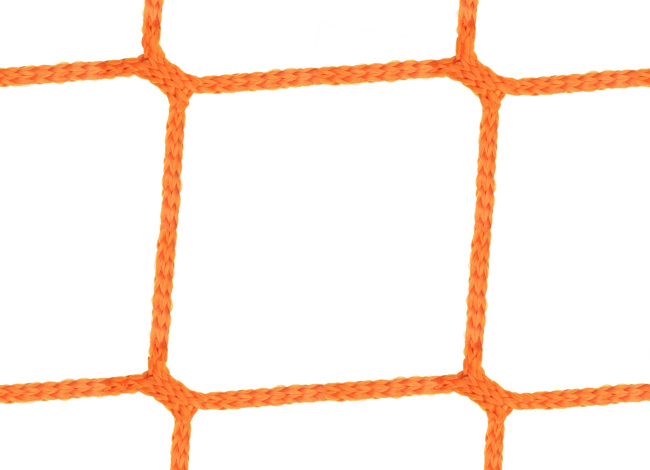

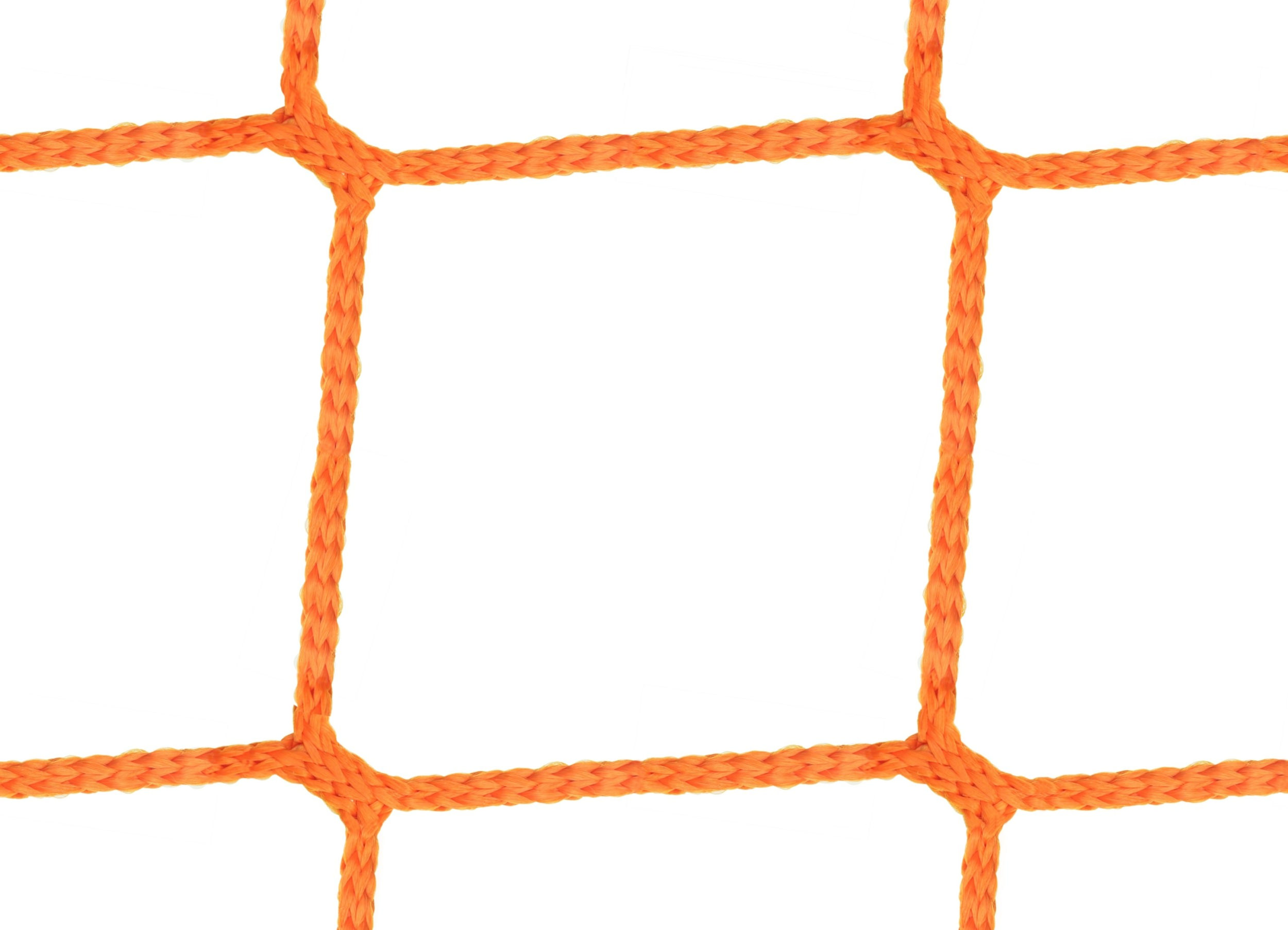

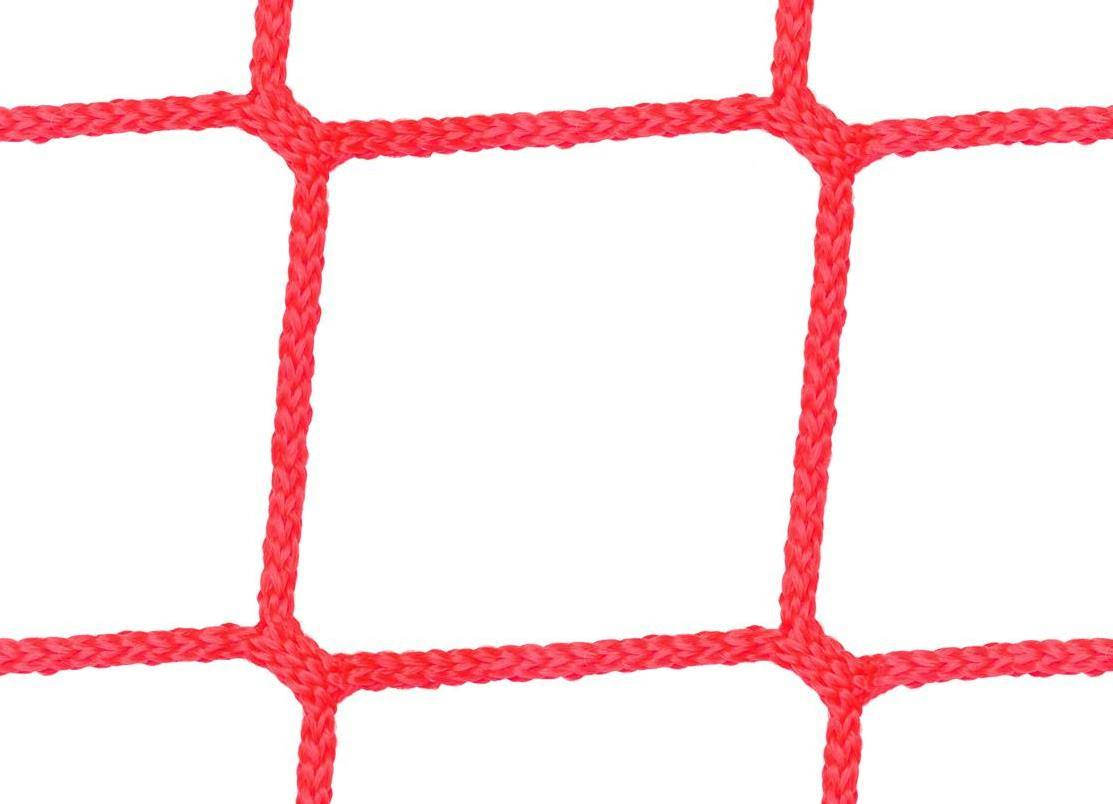

The safety net consists of woven, deep-dyed polypropylene filament yarn, which is a highly tearproof and stable synthetic fibre. Thanks to the knotless weave, which is no less stable than a knotted connection, the net keeps its shape perfectly.



Technical Specifications
Material:high tenacity polypropylene, knotless
Material Diameter:Ø 5.0 mm
Mesh Size:70 x 70 mm
Pose of Meshs:quadratic (square)
Mesh Connection:knotless braid
Edge Design:reinforced selvage cord of approx. 9 mm, with integral surround rope (sewn)
Max. Tensile Strength of a Mesh necessary force to tear a single mesh (tear resistance):3200 N equal to the weight force of a mass of 326 kilograms
Energy Absorption (approx.) The specifications refer to a test net, which is 3.00 x 3.00 m.:4.6 kJ
Densile Breaking Force Referred to Density:7.0 cN/den
Breaking Elongation of Filament:15%
Standards and Rules:EN 1263-1, NF S 52-106
Certificate:Oeko-Tex® certificate 12.0.02466
Net Class:A2 Maximum mesh size: 100 mm,
Minimum breaking strength: 4.14 kJ
Safety Net System:S2 (flexible posts)
Continuous Operating Temperature:-40 to +80 °C
Melting Point:165 °C
Washing Temperature (max.):30 °C
Yarn Moisture Regain:0%
Tensile Strength Reduction Because Of Moisture:0%
Resistance to Weak/Strong Acids measured at 25 °C ambient temperature:very good/good
Resistance to Weak/Strong Alkalis measured at 25 °C ambient temperature:good/not good
Resistance to Organic Solvents measured at 25 °C ambient temperature:good
Resistance to Benzine and Greases measured at 25 °C ambient temperature:very good
Bending Strength & Abrasion Resistance:good
Weather-Resistance:good
UV-Resistance:300 kly
Tensile Strength After Two Years of Climatic Influences:90%
Elasticity After Years of Climatic Influences:good long-term flexibility, little elongation
Flexibility When Used in Water:stays flexible
Contraction When Used in Water:low contraction
Contraction When Used Outside:no contraction
Behavior in High Heat / Fire:melting
Electrical Characteristics:isolating, no electrical conductivity
Customs Tariff No.:56081930
Weight per Unit Area:325 g/m²

Download product data sheet (PDF)



Your satisfaction and safety are very important to us. Regular quality inspections guarantee the high standard of our products. Our nets and fabric are designed to fulfil the most exacting standards and are characterised by their exceptional durability.



Not sure which net thickness is right for your specific purpose or do you perhaps have a different question? Trust our many years' experience and contact us!



Download product data sheet (PDF)



Technical Specifications
Material:high tenacity polypropylene, knotless
Material Diameter:Ø 5.0 mm
Mesh Size:70 x 70 mm
Pose of Meshs:quadratic (square)
Mesh Connection:knotless braid
Edge Design:reinforced selvage cord of approx. 9 mm, with integral surround rope (sewn)
Max. Tensile Strength of a Mesh necessary force to tear a single mesh (tear resistance):3200 N equal to the weight force of a mass of 326 kilograms
Energy Absorption (approx.) The specifications refer to a test net, which is 3.00 x 3.00 m.:4.6 kJ
Densile Breaking Force Referred to Density:7.0 cN/den
Breaking Elongation of Filament:15%
Standards and Rules:EN 1263-1, NF S 52-106
Certificate:Oeko-Tex® certificate 12.0.02466
Net Class:A2 Maximum mesh size: 100 mm,
Minimum breaking strength: 4.14 kJ
Safety Net System:S2 (flexible posts)
Continuous Operating Temperature:-40 to +80 °C
Melting Point:165 °C
Washing Temperature (max.):30 °C
Yarn Moisture Regain:0%
Tensile Strength Reduction Because Of Moisture:0%
Resistance to Weak/Strong Acids measured at 25 °C ambient temperature:very good/good
Resistance to Weak/Strong Alkalis measured at 25 °C ambient temperature:good/not good
Resistance to Organic Solvents measured at 25 °C ambient temperature:good
Resistance to Benzine and Greases measured at 25 °C ambient temperature:very good
Bending Strength & Abrasion Resistance:good
Weather-Resistance:good
UV-Resistance:300 kly
Tensile Strength After Two Years of Climatic Influences:90%
Elasticity After Years of Climatic Influences:good long-term flexibility, little elongation
Flexibility When Used in Water:stays flexible
Contraction When Used in Water:low contraction
Contraction When Used Outside:no contraction
Behavior in High Heat / Fire:melting
Electrical Characteristics:isolating, no electrical conductivity
Customs Tariff No.:56081930
Weight per Unit Area:325 g/m²
