Rack Safety Net by the mē (Custom-Made)

Rack Safety Net Custom-Made (45 mm mesh) | Safetynet365
Rack Safety Net Custom-Made (45 mm mesh) | Safetynet365
Rack Safety Net Custom-Made (45 mm mesh) | Safetynet365
Rack Safety Net Custom-Made (45 mm mesh) | Safetynet365
Rack Safety Net Custom-Made (45 mm mesh) | Safetynet365
Rack Safety Net Custom-Made (45 mm mesh) | Safetynet365
Rack Safety Net Custom-Made (45 mm mesh) | Safetynet365
Rack Safety Net Custom-Made (45 mm mesh) | Safetynet365
Rack Safety Net Custom-Made (45 mm mesh) | Safetynet365
Rack Safety Net Custom-Made (45 mm mesh) | Safetynet365
Rack Safety Net Custom-Made (45 mm mesh) | Safetynet365
Rack Safety Net Custom-Made (45 mm mesh) | Safetynet365
Rack Safety Net Custom-Made (45 mm mesh) | Safetynet365
Rack Safety Net Custom-Made (45 mm mesh) | Safetynet365
Rack Safety Net Custom-Made (45 mm mesh) | Safetynet365
Rack Safety Net Custom-Made (45 mm mesh) | Safetynet365
Rack Safety Net Custom-Made (45 mm mesh) | Safetynet365
Rack Safety Net Custom-Made (45 mm mesh) | Safetynet365
Shipping Time: 18-20 working days
Item No.: 209-045
Customise Your Product
Color:
excl. VAT *1 0,00 €incl. VAT *2 0,00 €
Add to cart

  •  Description
  •  Technical Specifications
  •  More Images
  •  Recommendation
  •  Reviews
Description

Custom-made safety net for vertical fuse of pallet racks. The net is used in racking systems to protect goods from falling out of the rack or to protect people on traffic routes from falling objects.

Select the color above and enter the desired length and width in the appropriate fields. Net area, weight and price are calculated and displayed automatically.



The net can be connected directly to the shelf uprights and crossbars using straps or ropes. Alternatively, steel cables can be stretched in front of the surface to form a frame for the net. The net can then be easily attached with snap hooks or shackles on the steel cable.

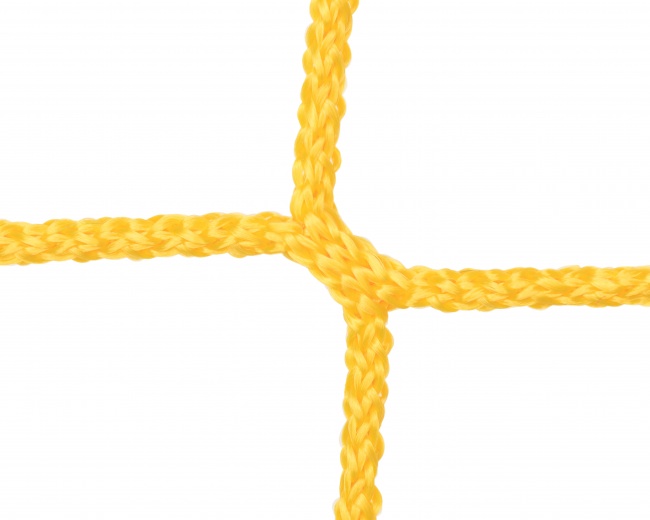

The safety net consists of woven, deep-dyed polypropylene filament yarn. This is a highly tearproof and stable synthetic fibre. Thanks to the knotless weave, which is no less stable than a knotted connection, the net keeps its shape perfectly.

The material is of course 100% non-toxic, and contact with mucus membranes (mouth, eyes) is completely safe as well. Thanks to their weather-resistance and UV-stability, our safety nets are suitable for both outdoor and indoor use.



Technical Specifications
Material:high tenacity polypropylene, knotless
Material Diameter:Ø 3.0 mm

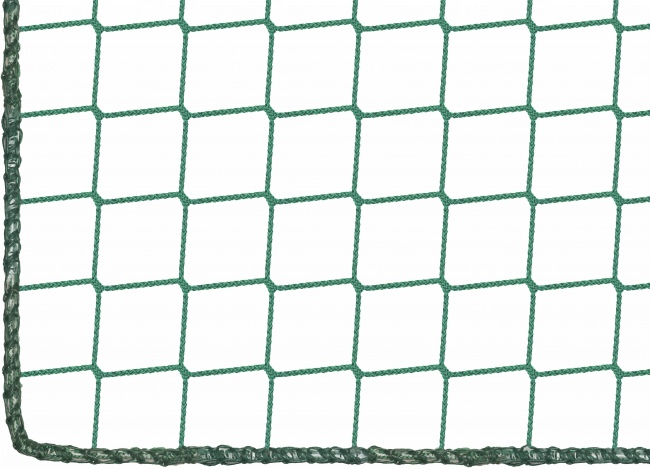

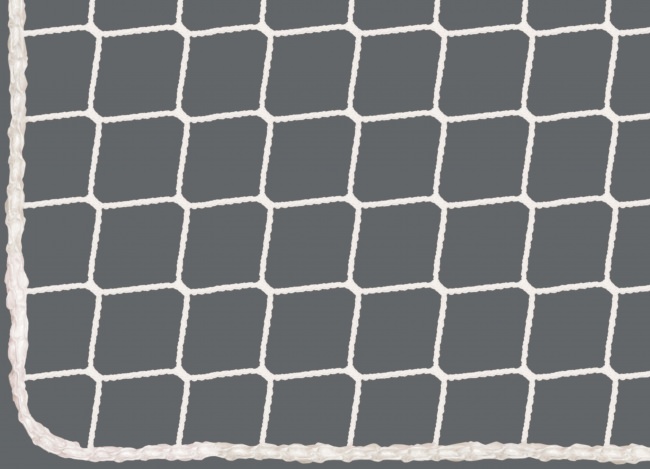

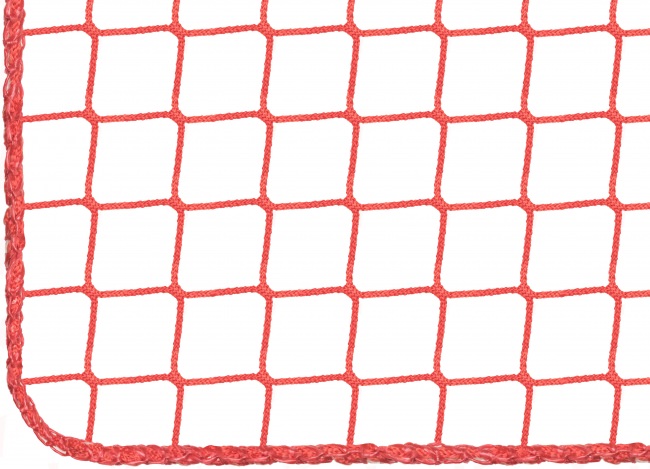

Mesh Size:45 x 45 mm
Pose of Meshs:quadratic (square)

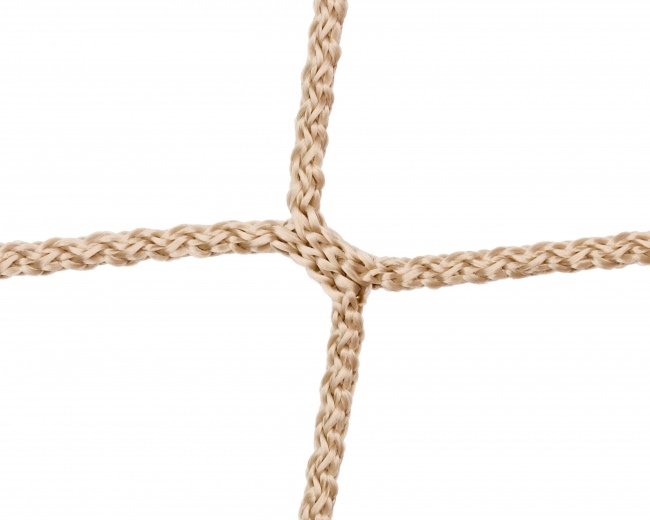

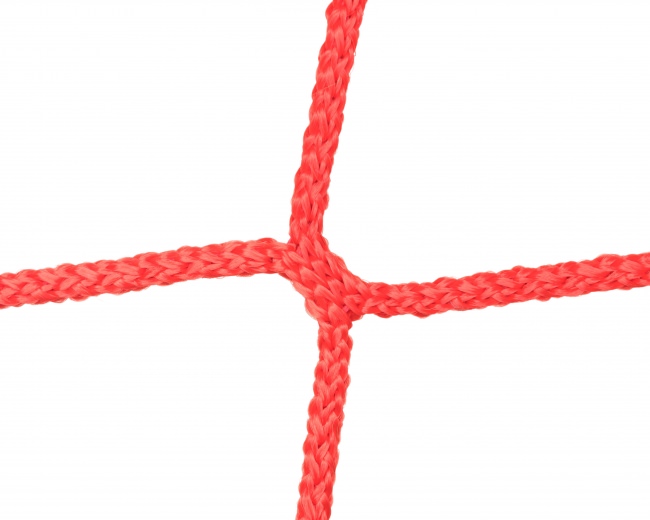

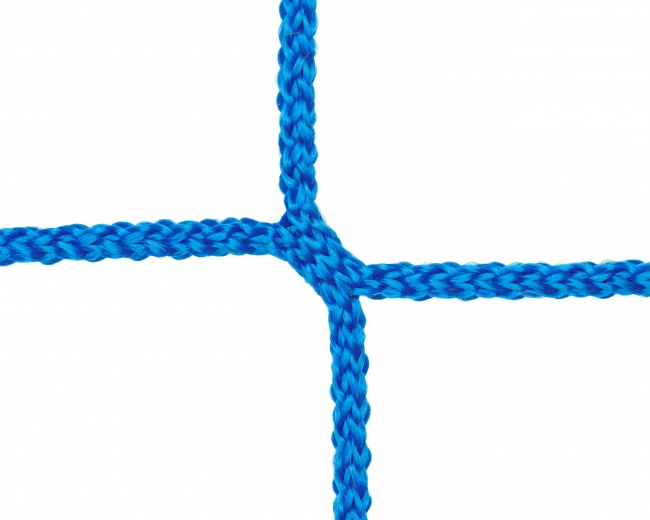

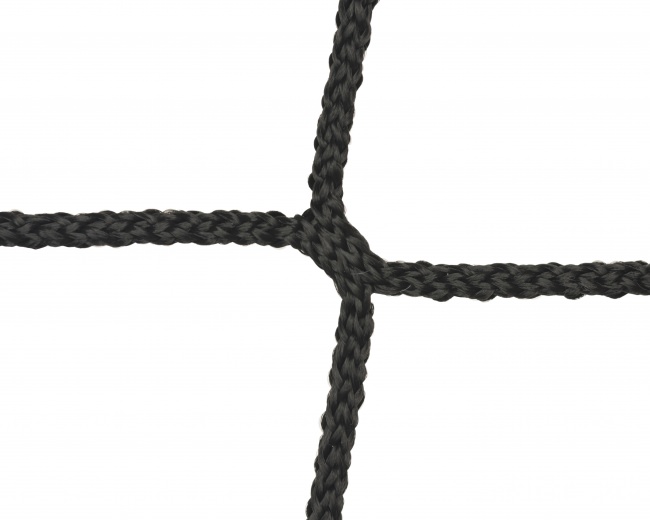

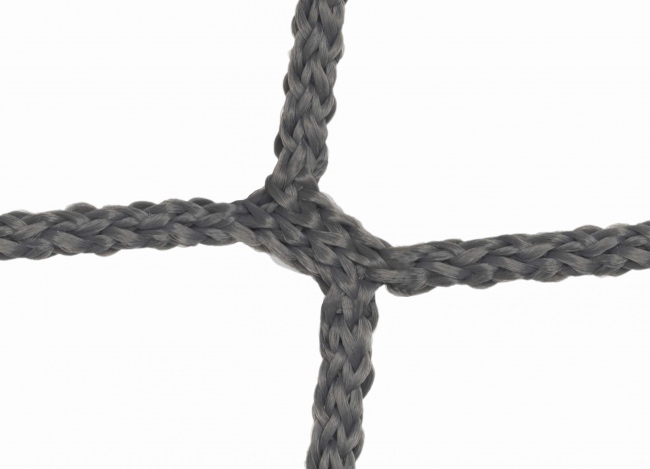

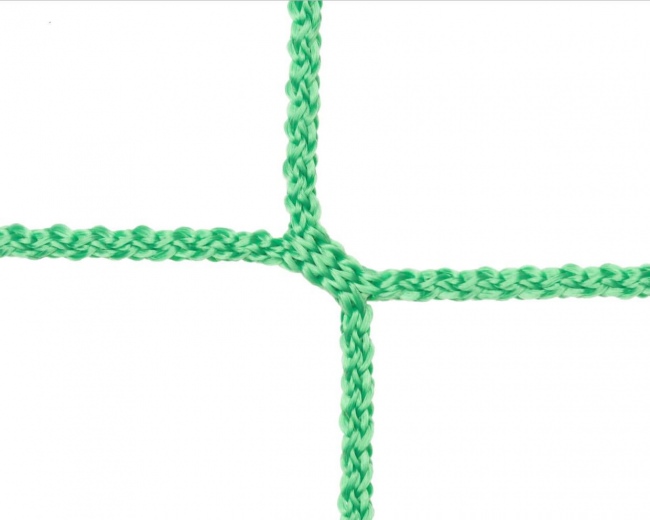

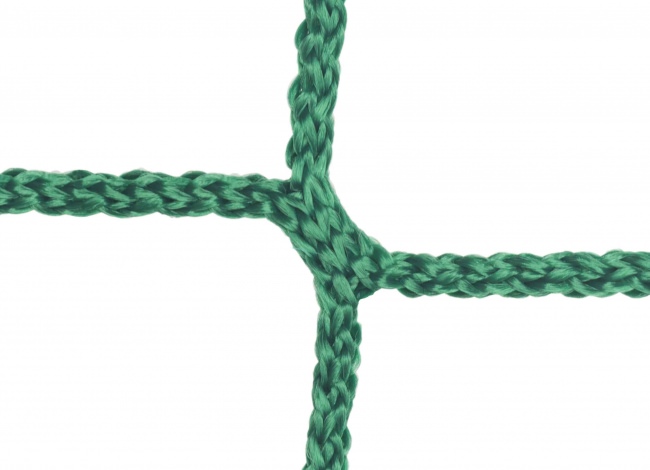

Mesh Connection:knotless braid

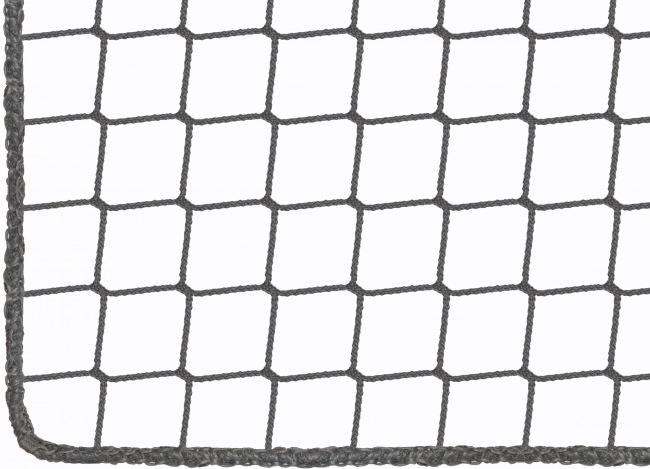

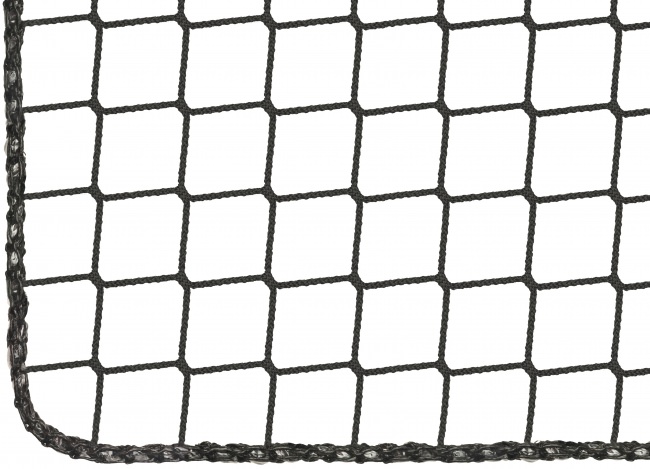

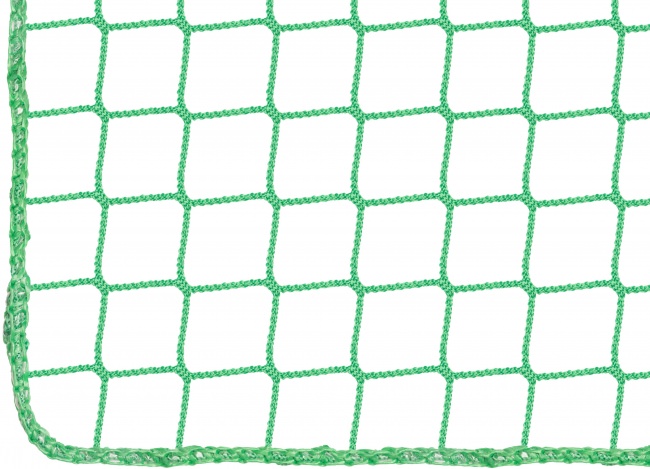

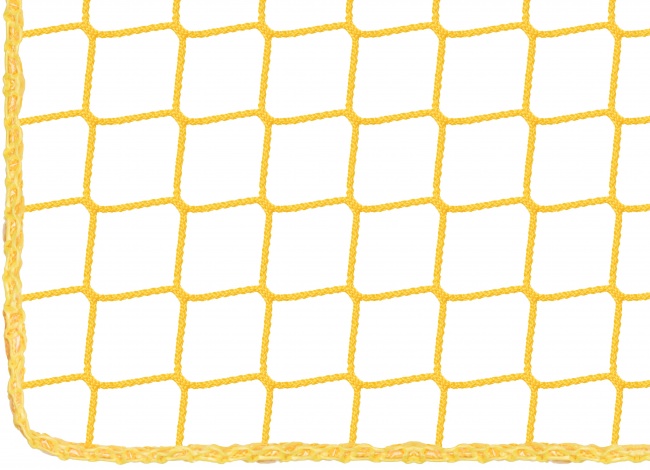

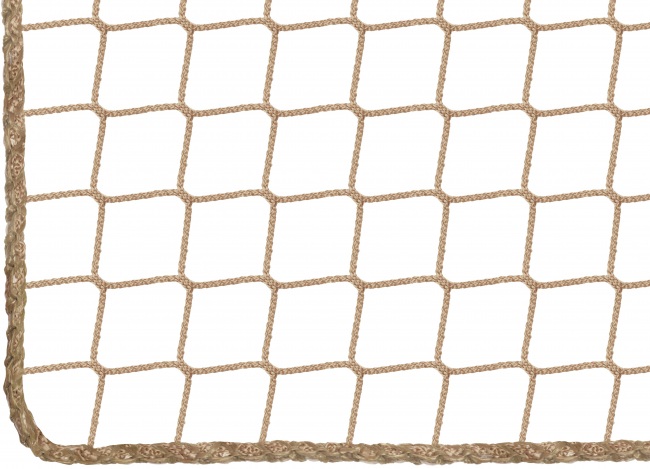

Edge Design:reinforced selvage cord of approx. 7 mm
Max. Tensile Strength of a Mesh necessary force to tear a single mesh (tear resistance):1250 N equal to the weight force of a mass of 127 kilograms
Densile Breaking Force Referred to Density:7.0 cN/den
Breaking Elongation of Filament:15%
Standards and Rules:ASR 12/1-3 "protection against falling objects", ASR 17/1,2 "route ways", DGUV rule 108-007 (formerly BG regulation no. 234)
Certificate:Oeko-Tex® certificate 12.0.02466
Continuous Operating Temperature:-40 to +80 °C
Melting Point:165 °C
Washing Temperature (max.):30 °C
Yarn Moisture Regain:0%
Tensile Strength Reduction Because Of Moisture:0%
Resistance to Weak/Strong Acids measured at 25 °C ambient temperature:very good/good
Resistance to Weak/Strong Alkalis measured at 25 °C ambient temperature:good/not good
Resistance to Organic Solvents measured at 25 °C ambient temperature:good
Resistance to Benzine and Greases measured at 25 °C ambient temperature:very good
Bending Strength & Abrasion Resistance:good
Weather-Resistance:good
UV-Resistance:300 kly
Tensile Strength After Two Years of Climatic Influences:90%
Elasticity After Years of Climatic Influences:good long-term flexibility, little elongation
Flexibility When Used in Water:stays flexible
Contraction When Used in Water:low contraction
Contraction When Used Outside:no contraction
Behavior in High Heat / Fire:melting
Electrical Characteristics:isolating, no electrical conductivity
Customs Tariff No.:56081930
Weight per Unit Area:150 g/mē

 Download product data sheet (PDF)



Your satisfaction and safety are very important to us. Regular quality inspections guarantee the high standard of our products. Our nets and fabric are designed to fulfil the most exacting standards and are characterised by their exceptional durability.



Not sure which net thickness is right for your specific purpose or do you perhaps have a different question? Trust our many years' experience and contact us!





 Download product data sheet (PDF)



Technical Specifications
Material:high tenacity polypropylene, knotless
Material Diameter:Ø 3.0 mm
Mesh Size:45 x 45 mm
Pose of Meshs:quadratic (square)
Mesh Connection:knotless braid
Edge Design:reinforced selvage cord of approx. 7 mm
Max. Tensile Strength of a Mesh necessary force to tear a single mesh (tear resistance):1250 N equal to the weight force of a mass of 127 kilograms
Densile Breaking Force Referred to Density:7.0 cN/den
Breaking Elongation of Filament:15%
Standards and Rules:ASR 12/1-3 "protection against falling objects", ASR 17/1,2 "route ways", DGUV rule 108-007 (formerly BG regulation no. 234)
Certificate:Oeko-Tex® certificate 12.0.02466
Continuous Operating Temperature:-40 to +80 °C
Melting Point:165 °C
Washing Temperature (max.):30 °C
Yarn Moisture Regain:0%
Tensile Strength Reduction Because Of Moisture:0%
Resistance to Weak/Strong Acids measured at 25 °C ambient temperature:very good/good
Resistance to Weak/Strong Alkalis measured at 25 °C ambient temperature:good/not good
Resistance to Organic Solvents measured at 25 °C ambient temperature:good
Resistance to Benzine and Greases measured at 25 °C ambient temperature:very good
Bending Strength & Abrasion Resistance:good
Weather-Resistance:good
UV-Resistance:300 kly
Tensile Strength After Two Years of Climatic Influences:90%
Elasticity After Years of Climatic Influences:good long-term flexibility, little elongation
Flexibility When Used in Water:stays flexible
Contraction When Used in Water:low contraction
Contraction When Used Outside:no contraction
Behavior in High Heat / Fire:melting
Electrical Characteristics:isolating, no electrical conductivity
Customs Tariff No.:56081930
Weight per Unit Area:150 g/mē
More Images
Rack Safety Net Custom-Made (45 mm mesh) | Safetynet365
Rack Safety Net Custom-Made (45 mm mesh) | Safetynet365
Rack Safety Net Custom-Made (45 mm mesh) | Safetynet365
Rack Safety Net Custom-Made (45 mm mesh) | Safetynet365
Rack Safety Net Custom-Made (45 mm mesh) | Safetynet365
Rack Safety Net Custom-Made (45 mm mesh) | Safetynet365
Rack Safety Net Custom-Made (45 mm mesh) | Safetynet365
Rack Safety Net Custom-Made (45 mm mesh) | Safetynet365
Rack Safety Net Custom-Made (45 mm mesh) | Safetynet365
Rack Safety Net Custom-Made (45 mm mesh) | Safetynet365
Rack Safety Net Custom-Made (45 mm mesh) | Safetynet365
Rack Safety Net Custom-Made (45 mm mesh) | Safetynet365
Rack Safety Net Custom-Made (45 mm mesh) | Safetynet365
Rack Safety Net Custom-Made (45 mm mesh) | Safetynet365
Rack Safety Net Custom-Made (45 mm mesh) | Safetynet365
Rack Safety Net Custom-Made (45 mm mesh) | Safetynet365
Rack Safety Net Custom-Made (45 mm mesh) | Safetynet365

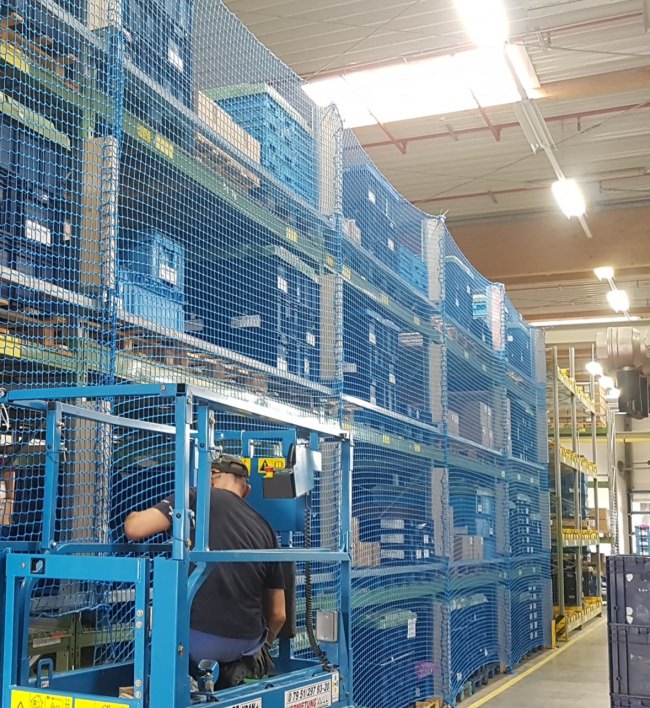

Pictures of our Customers
