Safety Net for Securing Light Domes 2.00 x 2.00 m

LoginRegister

0 Item

You do not have any products in your shopping cart yet.

CheckoutShopping Cart

Details
Technical Specifications
More images
Reviews

Ask a question

Description

Safety net for securing light domes in conformity with EN 1263-1 and EN 795:1996

Since a lack of fall protection measures at light domes and skylights can frequently lead to serious injuries or even fatal accidents, movable protection facilities like safety nets are ever more important. Our light dome nets offer reliable protection for persons engaged in maintenance work and snow-clearing work in winter.

Installation

The net has to be placed over the complete light dome frame for mounting. The belt strap has then to be contracted under the frame so far that the complete net construction can no longer slide upwards over the frame. The dimensions given are the dimensions of the net. The light dome net must be selected correspondingly larger than the size of the light dome frame.

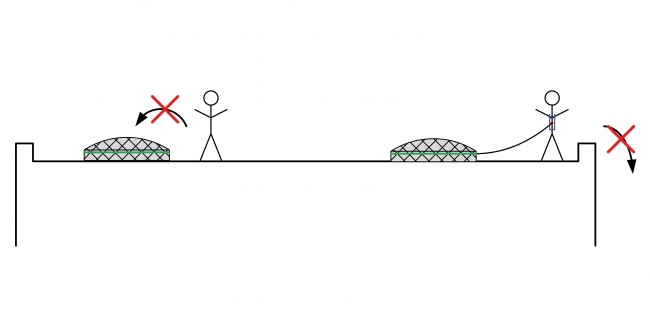

The skylight net is suitable for securing one person. When used as a fall protection, a professionally mounted skylight frame with overhang is a prerequisite. When used as a stop mechanism, a professionally mounted skylight frame with overhang and finished sealing is required.

Material

The net has a border measuring approx. 9 mm in thickness all around (see sample picture). An additional rope is sewn/linked to the border meshes. The border and all seams are executed in the same color as the net.

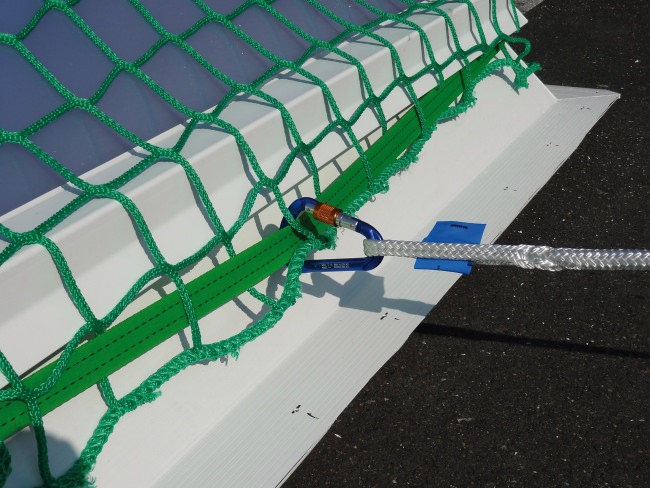

In addition, the light dome net is equipped with a 35 mm-thick belt strap with ratchet (permitted tractive force: 2000 daN). The tension belt is pulled together under the protruding parts of the light dome frame, thus providing stress-resistant anchorage for the net.

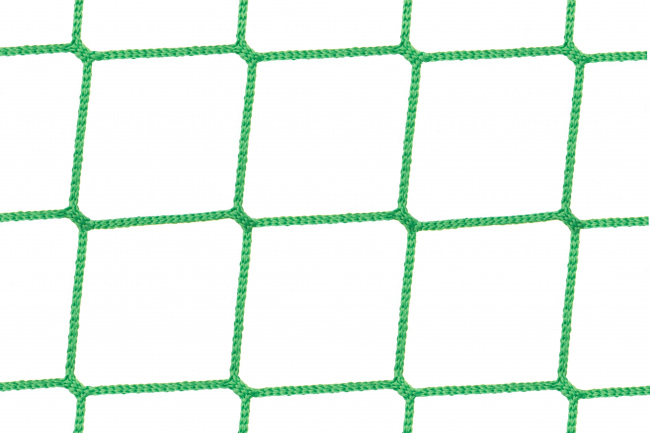

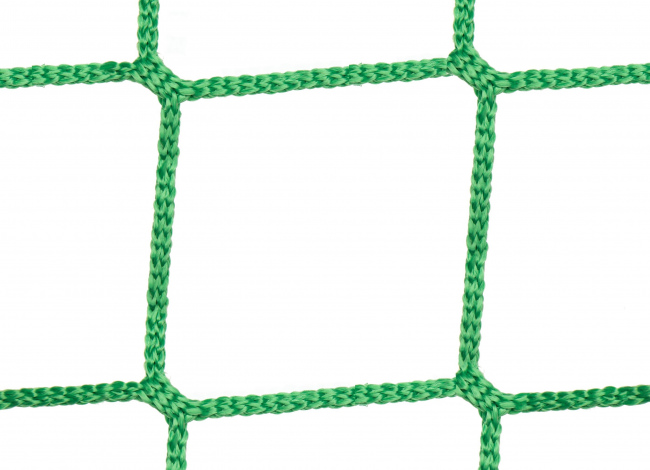

The safety net consists of woven, deep-dyed polypropylene filament yarn. This is a highly tearproof and stable synthetic fibre. Thanks to the knotless weave, which is no less stable than a knotted connection, the net keeps its shape perfectly.

The material is of course 100% non-toxic, and contact with mucus membranes (mouth, eyes) is completely safe as well. Thanks to their weather-resistance and UV-stability, our safety nets are suitable for both outdoor and indoor use.

Technical Specifications

:2.00 x 2.00 m

:high tenacity polypropylene, knotless

:Ø 4.75 mm

:100 x 100 mm

:quadratic (square)

:knotless braid

:reinforced selvage cord of approx. 9 mm, with integrated ratchet strap

:3000 N equal to the weight force of a mass of 306 kilograms

:belt strap: 2000 daN

:4.8 kJ

:38 J

:7.0 cN/den

:15%

:EN 795, EN 1263-1

:DEKRA certificate ZQS/B341/15, EC type examination certificate with CE-marking (CE 0158), Oeko-Tex® certificate 12.0.02466

:A2 Maximum mesh size: 100 mm,
Minimum breaking strength: 4.14 kJ

:S (rope-edged safety net)

:12 months

:3 pcs.

:-40 to +80 °C

:165 °C

:30 °C

:0%

:very good/good

:good/not good

:good

:very good

:good

:300 kly

:90%

:good long-term flexibility, little elongation

:stays flexible

:low contraction

:no contraction

:melting

:isolating, no electrical conductivity

:temporary fall protection and stop mechanism for one person

:56081930

:200 g/m²

:2.20 kg

Download product data sheet (PDF)

Your satisfaction and safety are very important to us. Regular quality inspections guarantee the high standard of our products. Our nets and fabric are designed to fulfil the most exacting standards and are characterised by their exceptional durability.

Not sure which net thickness is right for your specific purpose or do you perhaps have a different question? Trust our many years' experience and contact us!
