Air-Permeable Sheet by the m² (Custom-Made)

Air-Permeable Sheet by the m² (Custom-Made), Green | Safetynet365
Air-Permeable Sheet by the m² (Custom-Made), Green | Safetynet365
Shipping Time: 14-16 working days
Item No.: 785
Customise Your Product
Color(Please select)
Eyelet Spacing(Please select)
excl. VAT *1 46,22 € incl. VAT *2 55,00 €
Add to cart

  •  Details
  •  Technical Specifications
  •  More Pictures
  •  Customer Pictures
  •  Reviews

Description

High-quality made-to-measure tarpaulin for private and industrial use. Choose one of the above colors and enter the desired length and width into the appropriate fields. The surface area, weight and price will then be automatically calculated and shown.



Due to the type of textile it is possible that the material shrinks in the first weeks of use. The net may be produced bigger according to the ordered size. Please also note the stated production tolerance. Our tarpaulins are made of UV-resistant, air-permeable fabric with reinforced border and eyelets at chosen intervals. The value of the eyelet spacing is calculated with tolerance. If the eye clearance is not exactly compatible with the side length, the distance is averaged accordingly. The air-permeable material prevents the tarpaulin from ballooning in strong wind.



The material is of course 100% non-toxic, and contact with mucus membranes (mouth, eyes) is completely safe as well. Thanks to their weather-resistance and UV-stability, our tarpaulins are suitable for both outdoor and indoor use.



Technical Specifications
Material:high tenacity polypropylene
Type of Textile:closemesh fabric panels, air and water permeable
Mesh Size:2 x 6 mm
Production Tolerance:external dimensions: ± 2.5 cm
Shading:50%
Edge Design:with reinforced and stitched edges all around (approx. 40 mm wide)
Eyelets:inside diameter Ø 16 mm, all around, with chosen spacing (standard every 50 cm)
Breaking Elongation of Filament:15%
Continuous Operating Temperature:-40 to +80 °C
Melting Point:165 °C
Yarn Moisture Regain:0%
Tensile Strength Reduction Because Of Moisture:0%
Resistance to Weak/Strong Acids measured at 25 °C ambient temperature:very good/good
Resistance to Weak/Strong Alkalis measured at 25 °C ambient temperature:good/not good
Resistance to Organic Solvents measured at 25 °C ambient temperature:good
Resistance to Benzine and Greases measured at 25 °C ambient temperature:very good
Bending Strength & Abrasion Resistance:good
Weather-Resistance:good
Tensile Strength After Two Years of Climatic Influences:90%
Elasticity After Years of Climatic Influences:good long-term flexibility, no elongation
Flexibility When Used in Water:stays flexible
Contraction When Used in Water:low contraction
Contraction When Used Outside:low contraction
Behavior in High Heat / Fire:melting
Electrical Characteristics:isolating, no electrical conductivity
Customs Tariff No.:63079010
Area Density:550 g/m²

Download product data sheet (PDF)



Your satisfaction and safety are very important to us. Regular quality inspections guarantee the high standard of our products. Our nets and fabric are designed to fulfil the most exacting standards and are characterised by their exceptional durability.



Not sure which net thickness is right for your specific purpose or do you perhaps have a different question? Trust our many years' experience and contact us!



Download product data sheet (PDF)



Technical Specifications
Material:high tenacity polypropylene
Type of Textile:closemesh fabric panels, air and water permeable
Mesh Size:2 x 6 mm
Production Tolerance:external dimensions: ± 2.5 cm
Shading:50%
Edge Design:with reinforced and stitched edges all around (approx. 40 mm wide)
Eyelets:inside diameter Ø 16 mm, all around, with chosen spacing (standard every 50 cm)
Breaking Elongation of Filament:15%
Continuous Operating Temperature:-40 to +80 °C
Melting Point:165 °C
Yarn Moisture Regain:0%
Tensile Strength Reduction Because Of Moisture:0%
Resistance to Weak/Strong Acids measured at 25 °C ambient temperature:very good/good
Resistance to Weak/Strong Alkalis measured at 25 °C ambient temperature:good/not good
Resistance to Organic Solvents measured at 25 °C ambient temperature:good
Resistance to Benzine and Greases measured at 25 °C ambient temperature:very good
Bending Strength & Abrasion Resistance:good
Weather-Resistance:good
Tensile Strength After Two Years of Climatic Influences:90%
Elasticity After Years of Climatic Influences:good long-term flexibility, no elongation
Flexibility When Used in Water:stays flexible
Contraction When Used in Water:low contraction
Contraction When Used Outside:low contraction
Behavior in High Heat / Fire:melting
Electrical Characteristics:isolating, no electrical conductivity
Customs Tariff No.:63079010
Area Density:550 g/m²
Air-Permeable Sheet by the m² (Custom-Made), Green | Safetynet365

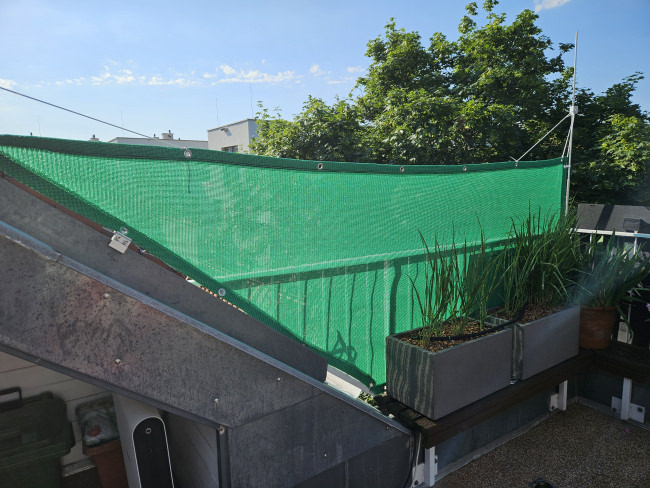

Kundenfoto von Air-Permeable Sheet by the m² (Custom-Made), Green
Kundenfoto von Air-Permeable Sheet by the m² (Custom-Made), Green
Kundenfoto von Air-Permeable Sheet by the m² (Custom-Made), Green
Kundenfoto von Air-Permeable Sheet by the m² (Custom-Made), Green
Kundenfoto von Air-Permeable Sheet by the m² (Custom-Made), Green
Kundenfoto von Air-Permeable Sheet by the m² (Custom-Made), Green

Customer Reviews

  -  23/06/2021

Carport closure to the neighbor as privacy and rain protection. The tarpaulin looks very stable and was easy to install thanks to the screws. The dimensions given were exactly right. Nothing can be said about the durability yet. Price/performance is good. Always happy to use. translated, original text: "Carportabschluss zum Nachbar als Sichtschutz und Regenschutz. Die Plane sieht sehr stabil aus und konnte aufgrund der Ösen einfach montiert werden. Die angegebenen Maße haben genau gepasst. Über die langlebichkeit kann noch nichts gesagt werden. Preis/Leistung passt. Immer wieder gerne."

  -  28/10/2023

After a long search, I finally found a technical privacy screen with air circulation. Workmanship and specified dimensions without complaint. Unfortunately, the quality is only available in light green, darker is less noticeable.
But I would recommend it.
 translated, original text: "Mach langer Suche, endlich einen technischen Sichtschutz mit Luftaustausch gefunden. Verarbeitung und angegebenen Maße ohne Beanstandung. In der Qualität leider nur in hellgrün Lieferbar, dunkler weniger auffällig.
Würd ich aber weiterempfehlen."

  -  20/08/2024

We use the air-permeable tarpaulins as privacy screens on the balconies for the residents of assisted living. These are larger garnitures for older people in need of care. translated, original text: "Wir verwenden die luftdurchlässigen Planen als Sichtschutz an den Balkonen für die Bewohner vom Betreuten Wohnen. Dies sind größere Garçonnière für ältere pflegebedürftige Menschen."

  -  19/05/2017

The tarpaulin is used as rain protection (external walls) for a firewood rack.
It is sturdy and could be attached easily with the screws.
 translated, original text: "Die Plane wird als Regenschutz (Außenwände) für einen Feuerholzdiemen verwendet.
Sie ist stabil und konnte mit den Ösen gut angebracht werden."

  -  05/07/2024

The air-permeable tarpaulin serves as a privacy screen for our balconies in assisted living. It makes our residents feel more comfortable. translated, original text: "Die luftdurchlässige Plane dient als Sichtschutz für unsere Balkone im Betreuten Wohnen. Unsere Bewohner fühlen sich dadurch wohler."

  -  18/10/2019

To cover a yellow bag storage area.
So far it seems stable. Everything was implemented as requested.
 translated, original text: "Zur Abdeckung eines Gelbe Sack Lagerplatzes.
Soweit macht es einen stabilen Eindruck. Alles wurde wunschgemäß umgesetzt."

  -  06/06/2022

Super robust and durable, the first one lasted a good two years and that under really heavy use translated, original text: "Super robust und langlebig das erste hat gute zwei Jahre gehalten und das bei echt massiver Beanspruchung"

  -  07/08/2023

The product was used in a stable as weather protection. The quality is impeccable. translated, original text: "Die Ware wurde in einen Stall als Wetterschutz verwendet. Die Qualität ist einwandfrei."

  -  20/10/2021

High quality wind protection for our garden house. Very satisfied. translated, original text: "Qualitativ hochwertiger Windschutz für unser Gartenhaus. Sehr zufrieden."

  -  26/04/2022

Privacy protection for a courtyard roof. Processed quickly and precisely. translated, original text: "Sichtschutz einer Hofüberdachung. Abwicklung schnell und präzise."

  -  08/02/2016

Great quality, used every day and still flawless. translated, original text: "Prima Qualität täglich im Einsatz und immer noch tadellos."

  -  02/03/2020

Load securing translated, original text: "Ladungssicherung"
