Wind Turbine Safety Net with Overlay Panel (100 mm Mesh)

Safety Net with Overlay Panel (100 mm Mesh, Heavy Woven Fabric) | Safetynet365
Safety Net with Overlay Panel (100 mm Mesh, Heavy Woven Fabric) | Safetynet365
Safety Net with Overlay Panel (100 mm Mesh, Heavy Woven Fabric) | Safetynet365
Safety Net with Overlay Panel (100 mm Mesh, Heavy Woven Fabric) | Safetynet365
Shipping Time: 17-19 working days
Item No.: 1903-100/720/35000
Customise Your Product
Color of Safety Net(Please select)
Color of Fabric Panel(Please select)
excl. VAT *1 64,03 € incl. VAT *2 76,20 €
Add to cart

  •  Details
  •  Technical Specifications
  •  More Pictures
  •  Reviews
  •  Recommended

Description

Geprüfte Sicherheit

Choose one of the above colors and enter the desired length and width into the appropriate fields. The surface area, weight and price of the net will then be automatically calculated and shown.

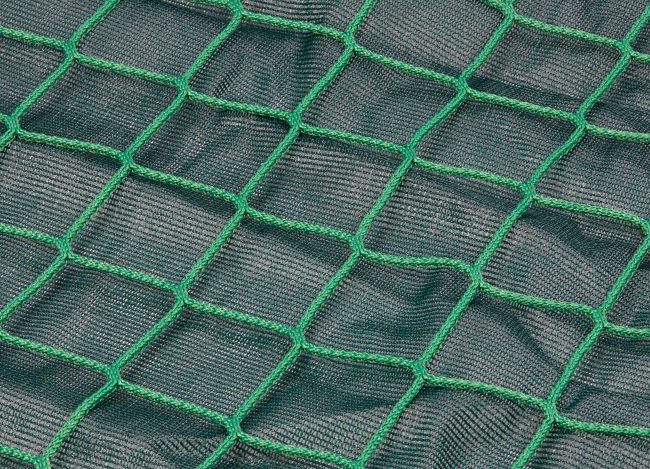

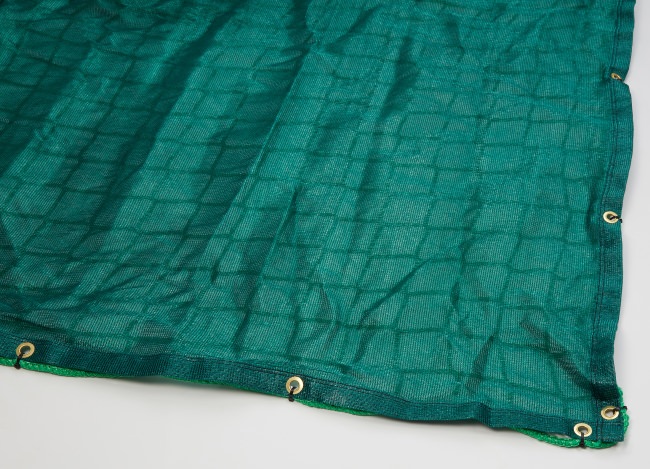

Fall safety net combination with border rope (System S) in conformity with EN 1263-1 for use in wind turbines. The combination with the heavy, air-permeable woven tarpaulin additionally protects workers inside from falling parts and tools. The woven tarpaulin distributes loads evenly on the load-bearing fall safety net.

The overlay panel has always to be mounted in the direction of load.

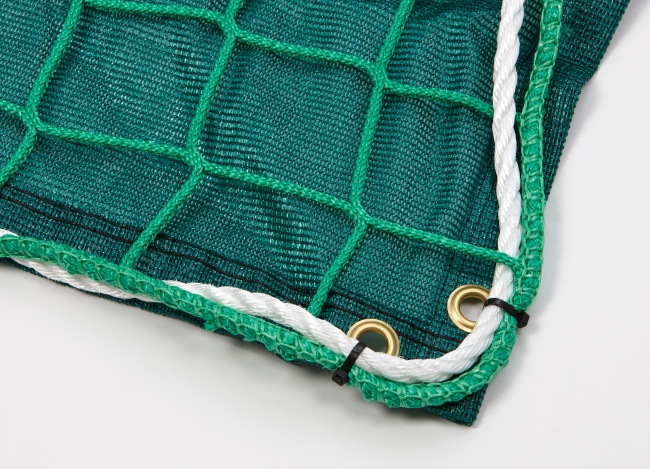

The net has a border measuring approx. 9 mm in thickness all around (see sample picture). An additional rope is sewn/linked to the border mesh. The border gives the net a neat outer edge on all sides and simultaneously ensures stable, stress-resistant anchorage points. The border and all seams are executed in the same color as the net. In addition, fall safety nets are equipped with a 12 mm-thick polysteel rope (30 kN), which is firmly attached to the border. The safety net consists of woven, deep-dyed polypropylene filament yarn, which is a highly tearproof and stable synthetic fibre. Thanks to the knotless weave, which is no less stable than a knotted connection, the net keeps its shape perfectly.



The material is of course 100% non-toxic, and contact with mucus membranes (mouth, eyes) is completely safe as well. Thanks to their weather-resistance and UV-stability, our safety nets are suitable for both outdoor and indoor use.



Technical Specifications
Material:high tenacity polypropylene, knotless, polyethylene
Type of Textile:closemesh fabric panels, air and water permeable
Material Diameter:Ø 5.0 mm
Mesh Size:1 x 3 mm, 100 x 100 mm
Pose of Meshs:quadratic (square)
Mesh Connection:knotless braid
Edge Design:reinforced selvage cord of approx. 9 mm, with edged rope
Edged Rope:polysteel rope (Ø 12 mm, white), all around
Max. Tensile Strength of a Mesh necessary force to tear a single mesh (tear resistance):3200 N equal to the weight force of a mass of 326 kilograms
Energy Absorption (approx.) The specifications refer to a test net, which is 3.00 x 3.00 m.:4.8 kJ
Tensile Strength of Edged Rope:30 kN
Densile Breaking Force Referred to Density:7.0 cN/den
Breaking Elongation of Filament:15%
Standards and Rules:BG regulation no. 179, DGUV standard 101-011, EN 1263-1
Certificate:GS verification certificate 23100030, Oeko-Tex® certificate 12.0.02466
Net Class:A2 Maximum mesh size: 100 mm,
Minimum breaking strength: 4.14 kJ
Safety Net System:S (rope-edged safety net)
Regular Inspection Interval:12 months
Number of Test Meshes Test meshes are rows of meshes which are connected with the net to determine the aging behavior. They can be removed from the net without impairing its functionality.:3 pcs.
Washing Temperature (max.):30 °C
Yarn Moisture Regain:0%
Tensile Strength Reduction Because Of Moisture:0%
Weather-Resistance:good
UV-Resistance:300 kly
Elasticity After Years of Climatic Influences:good long-term flexibility, little elongation
Flexibility When Used in Water:stays flexible
Contraction When Used in Water:low contraction
Contraction When Used Outside:no contraction
Electrical Characteristics:isolating, no electrical conductivity
Customs Tariff No.:56081930
Area Density:475 g/m²

Download product data sheet (PDF)



Our building site nets (fall safety nets, guardrail safety nets) are produced in conformity with the currently valid standards and regulations. The nets are certified in conformity with EN 1263-1, approved by the BauBG (German Building Trade Association) and have a test certificate.



Your satisfaction and safety are very important to us. Regular quality inspections guarantee the high standard of our products. Our nets and fabric are designed to fulfil the most exacting standards and are characterised by their exceptional durability.



Not sure which net thickness is right for your specific purpose or do you perhaps have a different question? Trust our many years' experience and contact us!



Download product data sheet (PDF)



Technical Specifications
Material:high tenacity polypropylene, knotless, polyethylene
Type of Textile:closemesh fabric panels, air and water permeable
Material Diameter:Ø 5.0 mm
Mesh Size:1 x 3 mm, 100 x 100 mm
Pose of Meshs:quadratic (square)
Mesh Connection:knotless braid
Edge Design:reinforced selvage cord of approx. 9 mm, with edged rope
Edged Rope:polysteel rope (Ø 12 mm, white), all around
Max. Tensile Strength of a Mesh necessary force to tear a single mesh (tear resistance):3200 N equal to the weight force of a mass of 326 kilograms
Energy Absorption (approx.) The specifications refer to a test net, which is 3.00 x 3.00 m.:4.8 kJ
Tensile Strength of Edged Rope:30 kN
Densile Breaking Force Referred to Density:7.0 cN/den
Breaking Elongation of Filament:15%
Standards and Rules:BG regulation no. 179, DGUV standard 101-011, EN 1263-1
Certificate:GS verification certificate 23100030, Oeko-Tex® certificate 12.0.02466
Net Class:A2 Maximum mesh size: 100 mm,
Minimum breaking strength: 4.14 kJ
Safety Net System:S (rope-edged safety net)
Regular Inspection Interval:12 months
Number of Test Meshes Test meshes are rows of meshes which are connected with the net to determine the aging behavior. They can be removed from the net without impairing its functionality.:3 pcs.
Washing Temperature (max.):30 °C
Yarn Moisture Regain:0%
Tensile Strength Reduction Because Of Moisture:0%
Weather-Resistance:good
UV-Resistance:300 kly
Elasticity After Years of Climatic Influences:good long-term flexibility, little elongation
Flexibility When Used in Water:stays flexible
Contraction When Used in Water:low contraction
Contraction When Used Outside:no contraction
Electrical Characteristics:isolating, no electrical conductivity
Customs Tariff No.:56081930
Area Density:475 g/m²
