Staircase Barrier Net - Available by the Meter

Staircase Barrier Net - Available by the Meter | Safetynet365
Staircase Barrier Net - Available by the Meter | Safetynet365
Staircase Barrier Net - Available by the Meter | Safetynet365
Staircase Barrier Net - Available by the Meter | Safetynet365
Staircase Barrier Net - Available by the Meter | Safetynet365
Staircase Barrier Net - Available by the Meter | Safetynet365
Staircase Barrier Net - Available by the Meter | Safetynet365
Staircase Barrier Net - Available by the Meter | Safetynet365
Staircase Barrier Net - Available by the Meter | Safetynet365
Shipping Time: 9-11 working days
Item No.: 9100-06
Customise Your Product
Color:
excl. VAT *1 0,00 €incl. VAT *2 0,00 €
Add to cart

  •  Description
  •  Technical Specifications
  •  More Images
  •  Reviews
Description

Please note: The length is given in centimeters.



Rigid net to shut off separate areas or secure entrances or staircases. Thanks to the PVC coating, the net is very dimensionally stable and remains in shape even when it is only fastened to the two outer sides. The net is simply fixed with the 6 sewn in Quick-Release Strap Fasteners on the side to existing posts, gutters or hooks. The setup and removal is done in no time. When removed, the net can easily be rolled up and stowed away to save space.

The net has a clean finish all around and is additionally bordered on three sides (left, right, top) with a 10 cm thick webbing (in the folded state about 5 cm wide). The clamping locks left and right are also sewn firmly to the net. A glass fiber reinforced plastic rod is sewn in at the two lateral ends in each case. This ensures special stability in the edge area and facilitates tensioning the net at the same time.



If the net is dimensioned slightly smaller than the clear opening, the tension can be well controlled via the belt fasteners on the sides. The stretchability of the material is low, so it should not be too small. In this case we recommend a reduction of the length measure by 5 to 10 cm.

From a certain length onwards, the net will sag, which can no longer be prevented by tensioning with muscle power alone (see customer pictures under "More Images"). We recommend using an additional post or a separate rope to support the net from a span of 6.00 meters.

The maximum length, which can safely be bridged without middle support, is 10 meters (1000 cm).



Our safety nets are suitable for outdoor use as well as for indoor use due to weather resistance and UV stabilization.



Technical Specifications
Height Above Ground:1.00 m
Material:polyester, coated with PVC
Material Diameter:Ø 4.0 mm
Mesh Size:40 x 40 mm
Pose of Meshs:quadratic (square)
Edge Design:with edged polyester tape (5 cm wide), with sewn on buckled straps (respectively 3 on the left and on the right side), 50 cm long, with side sewn bars out of fiberglass reinforced plastic
Tensile Strength of Buckle Straps:breaking load when used as restraint according to EN 12195-2: 5000 N
Continuous Operating Temperature:-25 bis +60 °C
Melting Point:180 °C
Yarn Moisture Regain:0%
Tensile Strength Reduction Because Of Moisture:0%
Resistance to Weak/Strong Acids measured at 25 °C ambient temperature:good/not good
Resistance to Weak/Strong Alkalis measured at 25 °C ambient temperature:good/not good
Resistance to Organic Solvents measured at 25 °C ambient temperature:not good
Resistance to Benzine and Greases measured at 25 °C ambient temperature:very good
Bending Strength & Abrasion Resistance:very good
Weather-Resistance:good
UV-Resistance:300 kly
Elasticity After Years of Climatic Influences:good long-term flexibility, no elongation
Flexibility When Used in Water:stays flexible
Contraction When Used in Water:no contraction
Contraction When Used Outside:no contraction
Behavior in High Heat / Fire:melting
Electrical Characteristics:isolating, no electrical conductivity
Customs Tariff No.:56081930

 Download product data sheet (PDF)



Your satisfaction and safety are very important to us. Regular quality inspections guarantee the high standard of our products. Our nets and fabric are designed to fulfil the most exacting standards and are characterised by their exceptional durability.



Not sure which net thickness is right for your specific purpose or do you perhaps have a different question? Trust our many years' experience and contact us!

 Download product data sheet (PDF)



Technical Specifications
Height Above Ground:1.00 m
Material:polyester, coated with PVC
Material Diameter:Ø 4.0 mm
Mesh Size:40 x 40 mm
Pose of Meshs:quadratic (square)
Edge Design:with edged polyester tape (5 cm wide), with sewn on buckled straps (respectively 3 on the left and on the right side), 50 cm long, with side sewn bars out of fiberglass reinforced plastic
Tensile Strength of Buckle Straps:breaking load when used as restraint according to EN 12195-2: 5000 N
Continuous Operating Temperature:-25 bis +60 °C
Melting Point:180 °C
Yarn Moisture Regain:0%
Tensile Strength Reduction Because Of Moisture:0%
Resistance to Weak/Strong Acids measured at 25 °C ambient temperature:good/not good
Resistance to Weak/Strong Alkalis measured at 25 °C ambient temperature:good/not good
Resistance to Organic Solvents measured at 25 °C ambient temperature:not good
Resistance to Benzine and Greases measured at 25 °C ambient temperature:very good
Bending Strength & Abrasion Resistance:very good
Weather-Resistance:good
UV-Resistance:300 kly
Elasticity After Years of Climatic Influences:good long-term flexibility, no elongation
Flexibility When Used in Water:stays flexible
Contraction When Used in Water:no contraction
Contraction When Used Outside:no contraction
Behavior in High Heat / Fire:melting
Electrical Characteristics:isolating, no electrical conductivity
Customs Tariff No.:56081930
More Images
Staircase Barrier Net - Available by the Meter | Safetynet365
Staircase Barrier Net - Available by the Meter | Safetynet365
Staircase Barrier Net - Available by the Meter | Safetynet365
Staircase Barrier Net - Available by the Meter | Safetynet365
Staircase Barrier Net - Available by the Meter | Safetynet365
Staircase Barrier Net - Available by the Meter | Safetynet365
Staircase Barrier Net - Available by the Meter | Safetynet365
Staircase Barrier Net - Available by the Meter | Safetynet365

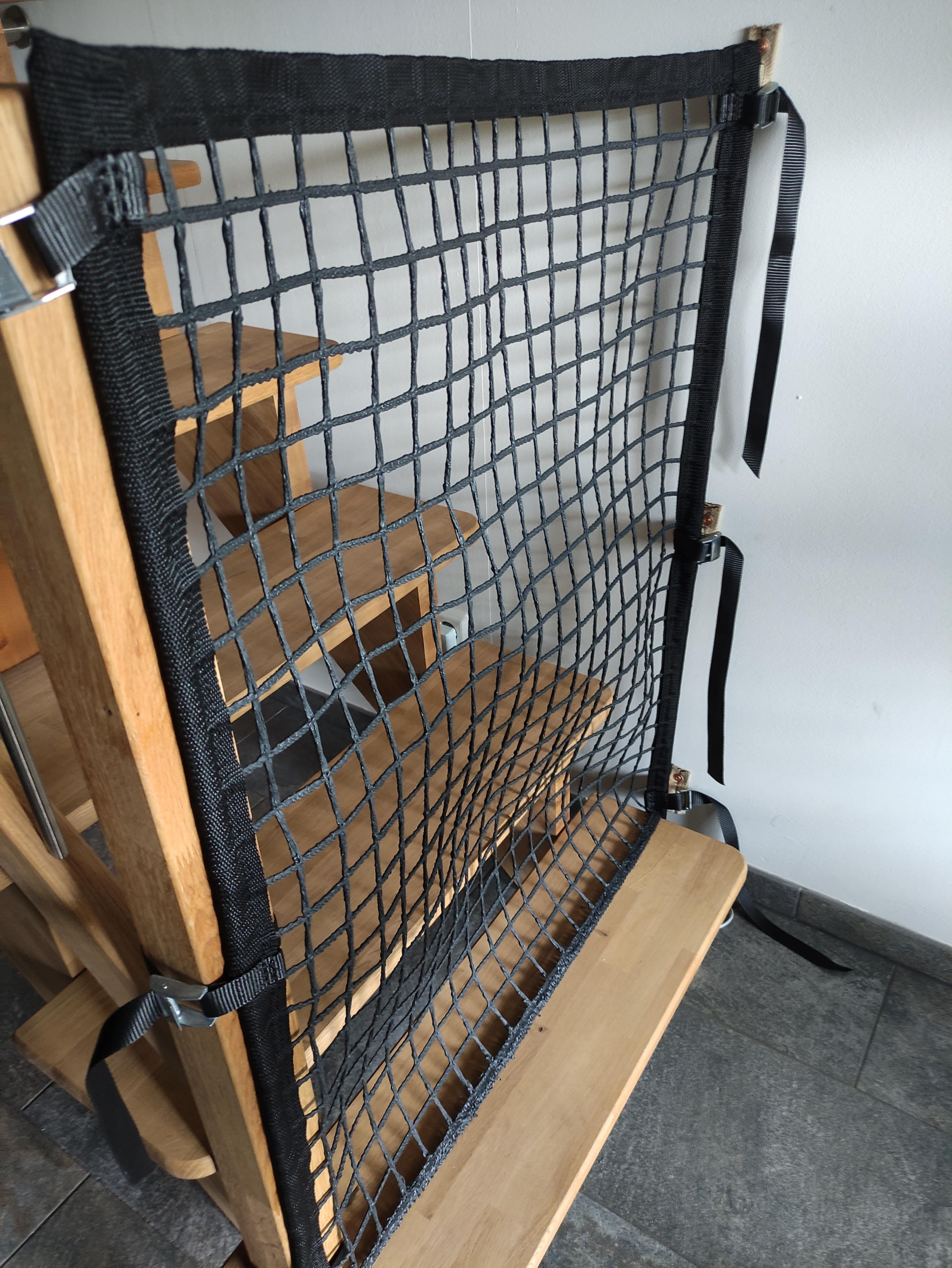

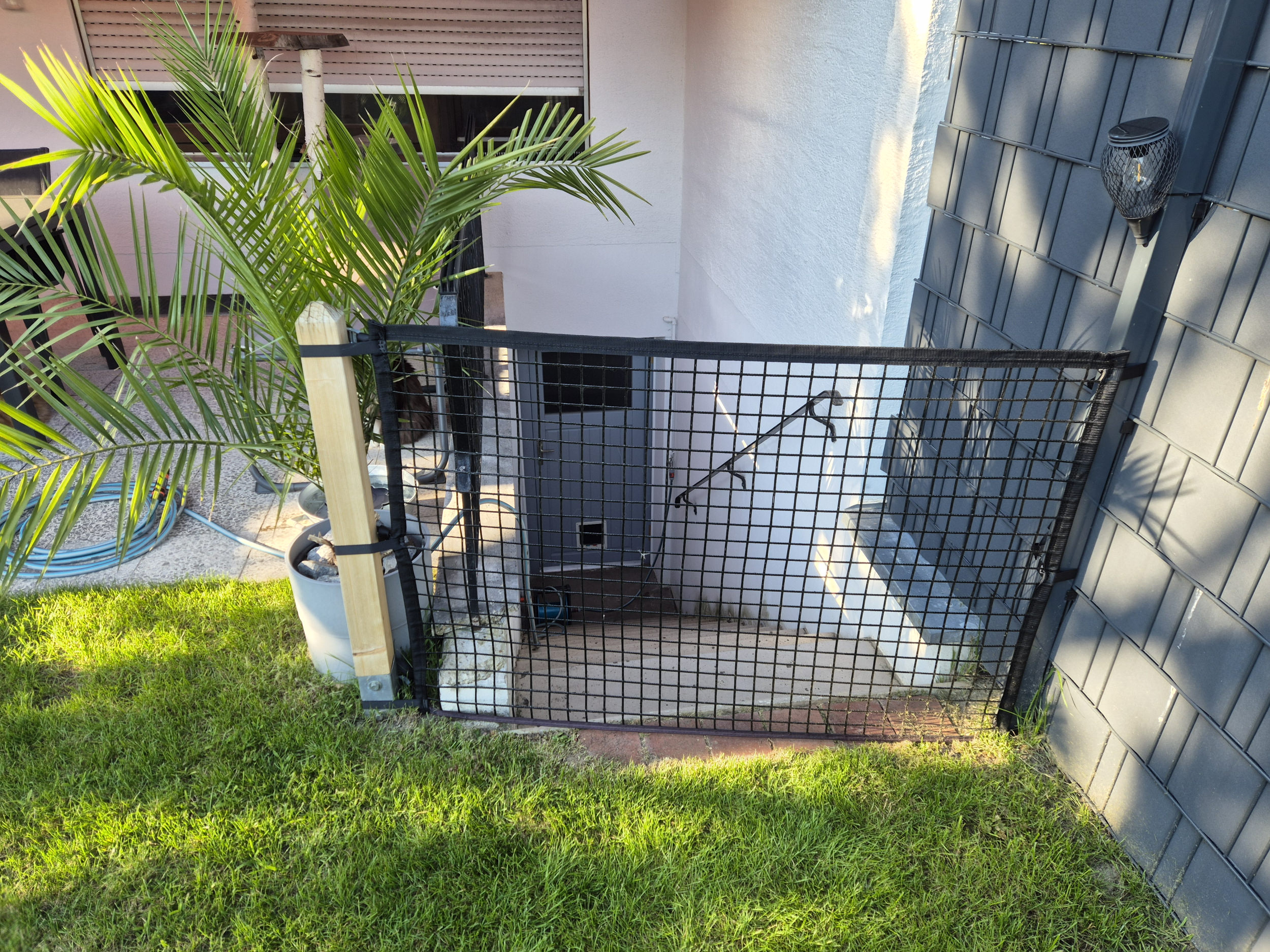

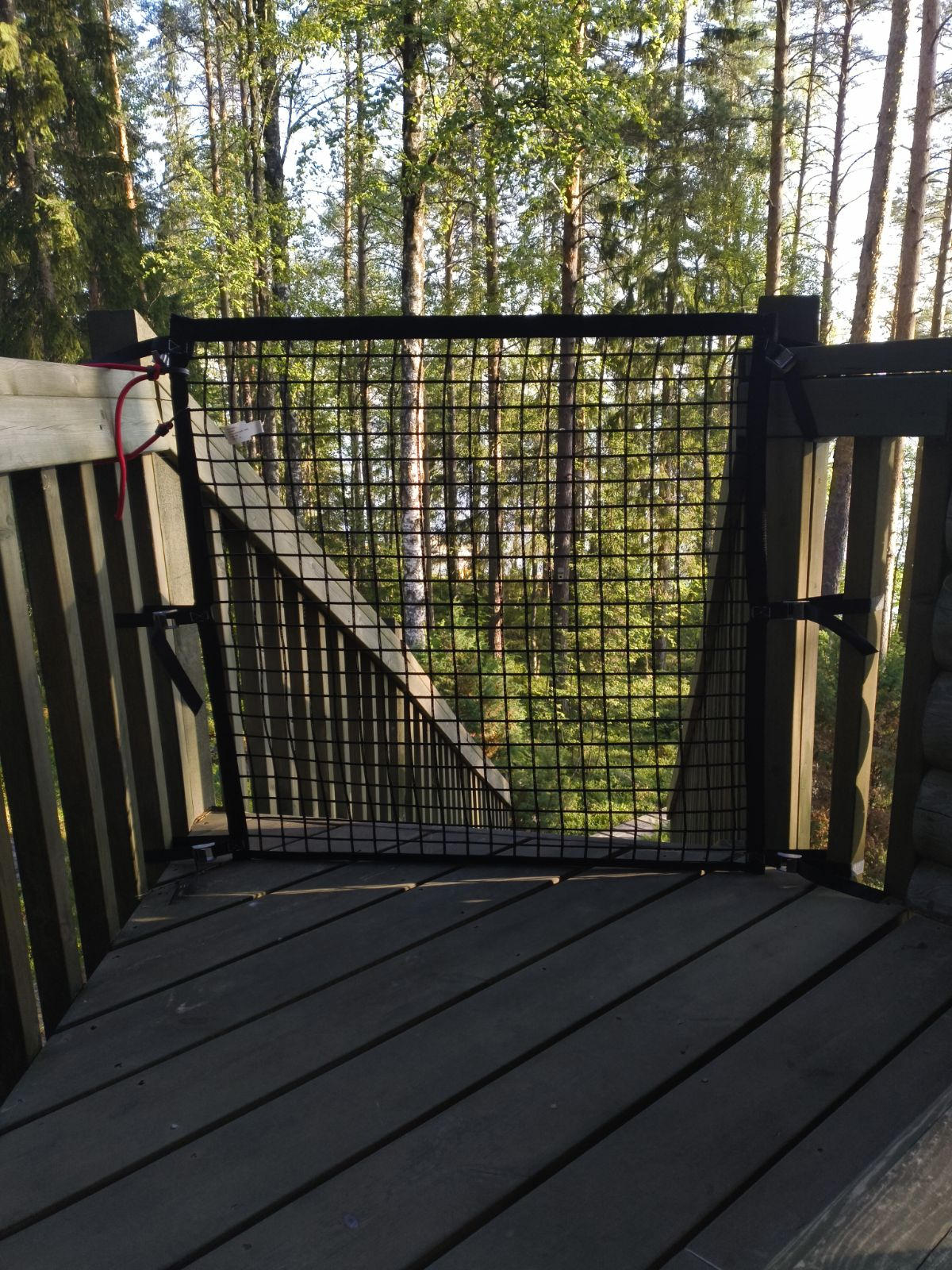

Pictures of our Customers
Kundenfoto von Staircase Barrier Net - Available by the Meter
Kundenfoto von Staircase Barrier Net - Available by the Meter
Kundenfoto von Staircase Barrier Net - Available by the Meter
Kundenfoto von Staircase Barrier Net - Available by the Meter
Kundenfoto von Staircase Barrier Net - Available by the Meter
Kundenfoto von Staircase Barrier Net - Available by the Meter
Kundenfoto von Staircase Barrier Net - Available by the Meter
Kundenfoto von Staircase Barrier Net - Available by the Meter
Kundenfoto von Staircase Barrier Net - Available by the Meter
Kundenfoto von Staircase Barrier Net - Available by the Meter
Kundenfoto von Staircase Barrier Net - Available by the Meter
Kundenfoto von Staircase Barrier Net - Available by the Meter
Kundenfoto von Staircase Barrier Net - Available by the Meter
Kundenfoto von Staircase Barrier Net - Available by the Meter
Kundenfoto von Staircase Barrier Net - Available by the Meter
Kundenfoto von Staircase Barrier Net - Available by the Meter
Kundenfoto von Staircase Barrier Net - Available by the Meter
Kundenfoto von Staircase Barrier Net - Available by the Meter
Kundenfoto von Staircase Barrier Net - Available by the Meter
Kundenfoto von Staircase Barrier Net - Available by the Meter
Kundenfoto von Staircase Barrier Net - Available by the Meter
Kundenfoto von Staircase Barrier Net - Available by the Meter
Kundenfoto von Staircase Barrier Net - Available by the Meter
Kundenfoto von Staircase Barrier Net - Available by the Meter
Kundenfoto von Staircase Barrier Net - Available by the Meter
Kundenfoto von Staircase Barrier Net - Available by the Meter
Kundenfoto von Staircase Barrier Net - Available by the Meter
Kundenfoto von Staircase Barrier Net - Available by the Meter
Customer Reviews:

Write the first Review!
