Shipping Time: 20-25 working days
Item No.: 145x
Customise Your Product
Height Above Ground(Please select)
Post Type(Please select)
Cover Cap Type(Please select)
excl. VAT *1 252,45 € incl. VAT *2 300,42 €
Add to cart

  •  Details
  •  More images
  •  Recommendation
  •  Reviews

Description

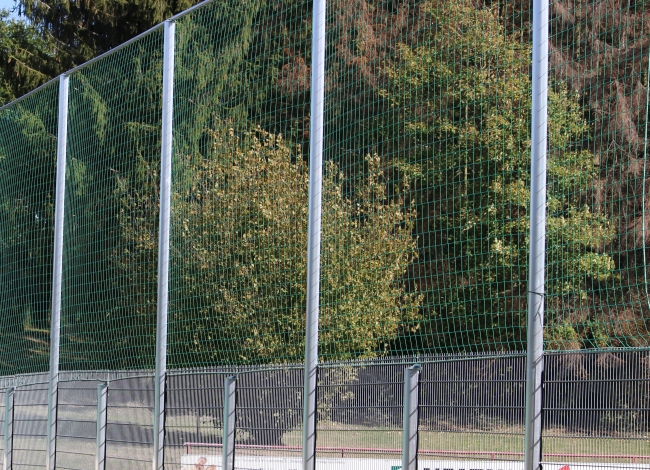

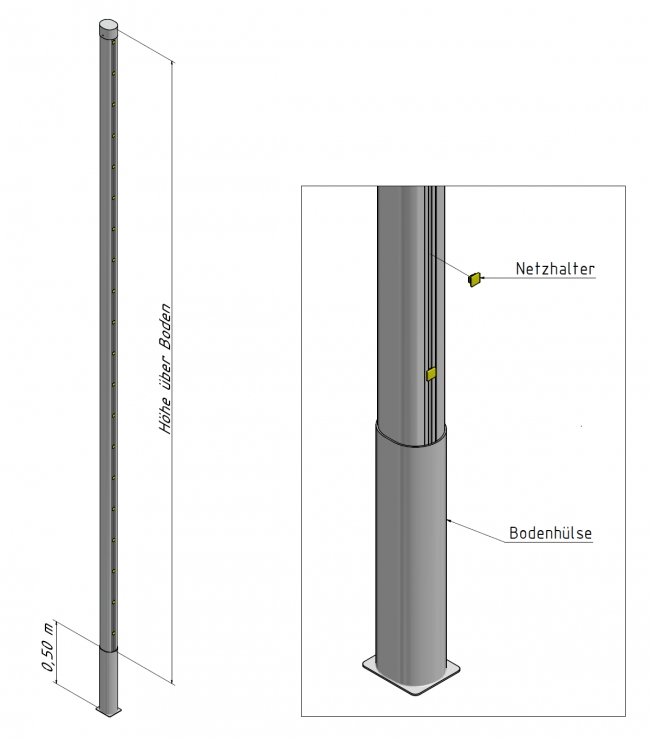

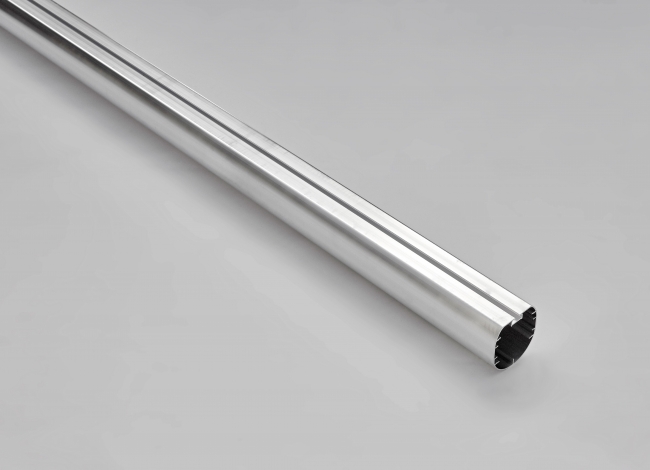

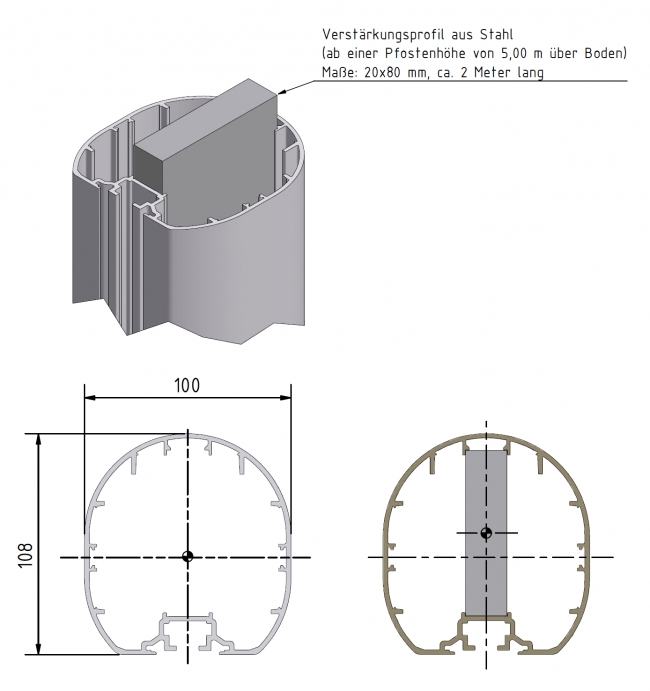

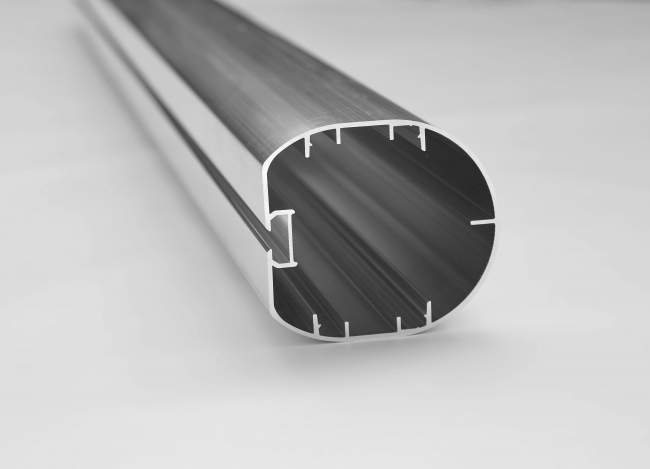

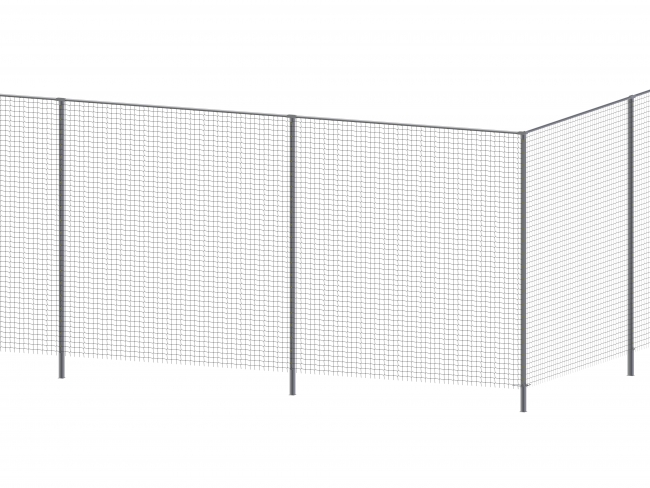

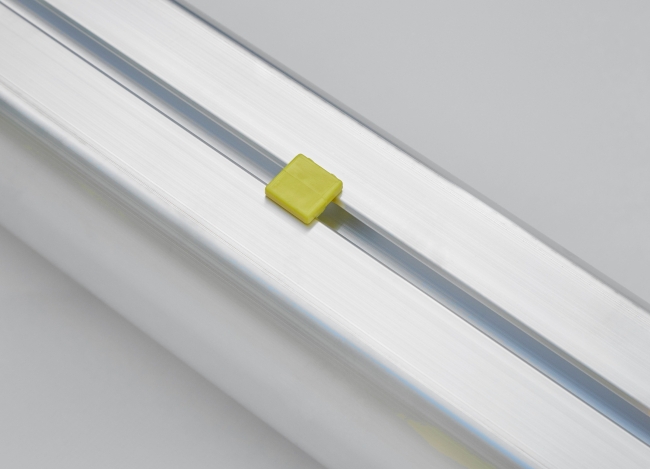

Support posts of different heights for putting up ball catch installations. Each support post consists of an exceptionally stable and warp-resistant aluminium profile measuring 100 x 108 mm. From a height of 5.00 m above ground, the post is reinforced with an additional solid profile of steel. The longer side includes a groove for inserting the net holder included in the delivery. In the case of installations which are to be set up across a corner, please order the appropriate number of corner posts required. These are suitably equipped with a second groove over the corner. The ground sleeve to install in concrete is included.

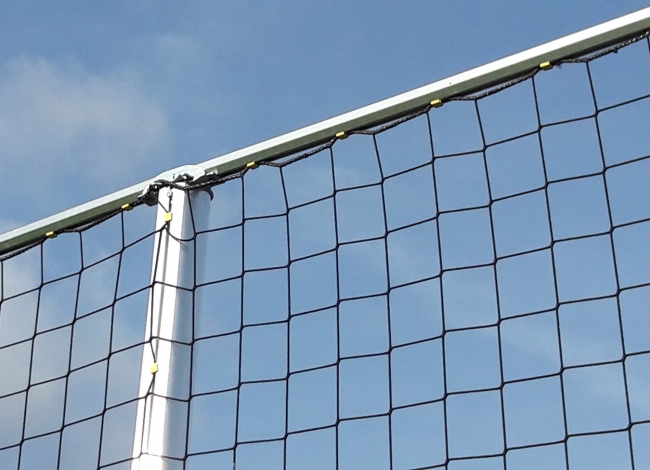

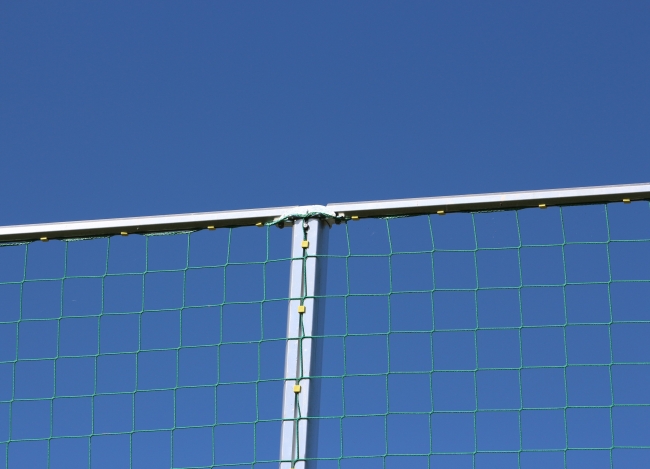

We recommend the deployment of additional crossbars to increase the stability of the installation and to prevent the outer posts from buckling. These should be installed at least between the outer pairs of posts on each side of the ball catch installation. Alternatively, crossbars can be used between each pair of posts of the installation. This increases the rigidity of the installation, looks more attractive and saves you the work of spanning the top of the installation with steel ropes.



Recommended distance between posts: 5.00 m

Maximum distance between posts: 6.00 m

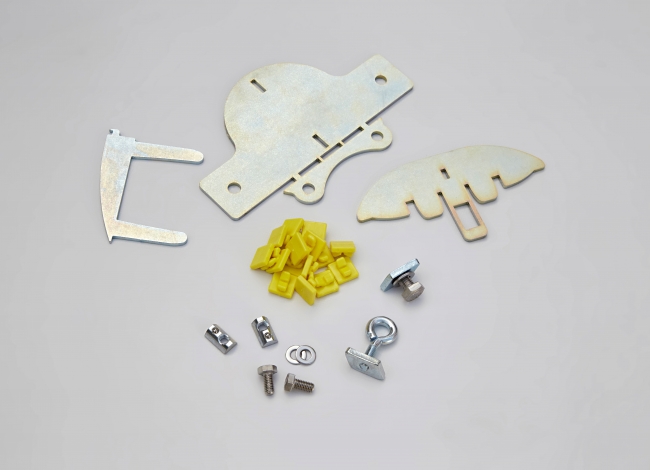

Scope of Delivery

  • 1x aluminium support post (2.5 mm thick, Ø 100 x 108 mm)
  • 1x aluminium ground sleeve, 70 cm long

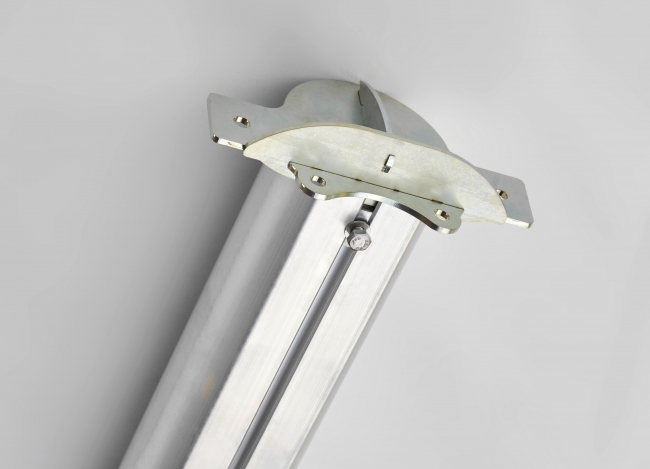

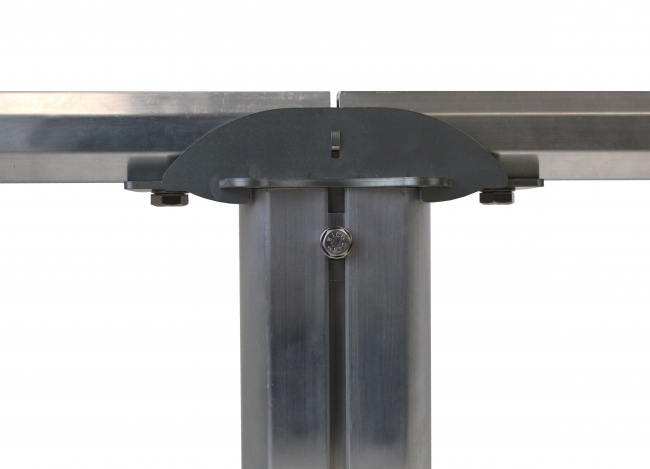

  • 1x aluminium cover cap (if required, with welded-on holder for crossbars)
  • 2x hexagon screw for fixing the cover cap
  • 1x sliding nut

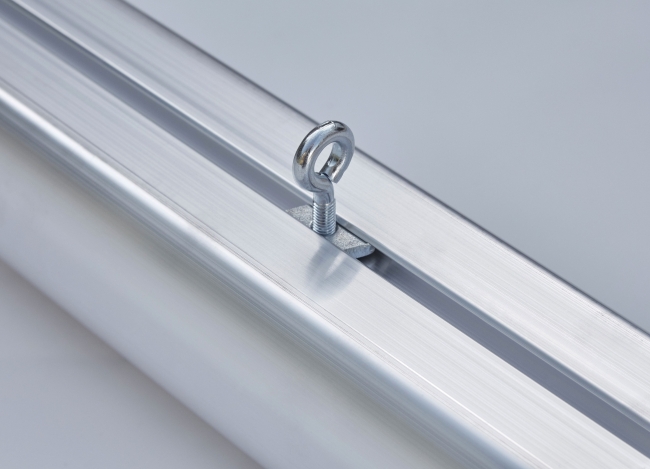

  • 1x eye screw M10x30 mm
  • Net holders (appropriate quantity for the selected size of post)
  • From a height of 5.00 m above ground: 1x reinforcing steel strip (80 x 20 x 2000 mm)

The scope of delivery varies according to the selected version of the posts (height, cover cap with or without holder). You will always get the required amount of accessories.



Technical Specifications

    Post Material: Aluminium EN AW-6060 T66, stainless
    Post Measurements: oval shaped profile, flattened, 100 x 108 mm; 2.60 - 7.70 m long
    Post Material Strength: 2.5 mm
    Ground Sleeve Material: Aluminium EN AW-6060 T66, stainless
    Ground Sleeve Measurements: oval shaped profile 125 x 110 mm; 0.70 m long
    Ground Sleeve Material Strength: 2.5 mm
    Reinforcement Profile: solid steel profile, stainless, 80 x 20 mm; 2.00 m long
    Verifiable Calculations: Yes



Measurements & Weight

Heigth above GroundTotal Height (approx.)Depth of Ground SleeveConcrete Foundation SizeWeight
2.00 m2.60 m50 cmapprox. 60 x 60 x 60 cm7.50 kg
3.00 m3.60 m50 cmapprox. 60 x 60 x 60 cm10.00 kg
4.00 m4.60 m50 cmapprox. 60 x 60 x 60 cm12.50 kg
5.00 m5.70 m50 cmapprox. 70 x 70 x 70 cm18.00 kg
6.00 m6.70 m50 cmapprox. 70 x 70 x 70 cm22.00 kg
7.00 m7.70 m50 cmapprox. 70 x 70 x 70 cm26.00 kg

More Images

Aluminium Support Posts for Ball Stop Fences | Safetynet365
Aluminium Support Posts for Ball Stop Fences | Safetynet365
Aluminium Support Posts for Ball Stop Fences | Safetynet365
Aluminium Support Posts for Ball Stop Fences | Safetynet365
Aluminium Support Posts for Ball Stop Fences | Safetynet365
Aluminium Support Posts for Ball Stop Fences | Safetynet365
Aluminium Support Posts for Ball Stop Fences | Safetynet365
Aluminium Support Posts for Ball Stop Fences | Safetynet365
Aluminium Support Posts for Ball Stop Fences | Safetynet365
Aluminium Support Posts for Ball Stop Fences | Safetynet365
Aluminium Support Posts for Ball Stop Fences | Safetynet365
Aluminium Support Posts for Ball Stop Fences | Safetynet365
Aluminium Support Posts for Ball Stop Fences | Safetynet365
Aluminium Support Posts for Ball Stop Fences | Safetynet365
Aluminium Support Posts for Ball Stop Fences | Safetynet365
Aluminium Support Posts for Ball Stop Fences | Safetynet365
Aluminium Support Posts for Ball Stop Fences | Safetynet365
Aluminium Support Posts for Ball Stop Fences | Safetynet365

Recommended accessory

Crossbars for Ball Stop Fences
excl. VAT *1starting at26,95 € / mincl. VAT *2starting at32,07 € / m
Snap Hook 60 x 6 mm
excl. VAT *10,42 €incl. VAT *20,50 €
Nylon Ring, open
excl. VAT *10,75 €incl. VAT *20,89 €
Steel Cable 4 mm - Available by the Meter
excl. VAT *1starting at1,51 € / mincl. VAT *2starting at1,80 € / m
Steel Cable 4/5 mm (PVC-Coated) - Available by the Meter
excl. VAT *1starting at2,10 € / mincl. VAT *2starting at2,50 € / m
Thimbles and Turnbuckles M8 (Pair)
excl. VAT *119,62 €incl. VAT *223,35 €

Customer Reviews

  -  14/06/2016

2 Pfosten im Garten für 11m langes und 3 m hohes Ballfangnetz reichen aus. Hochwertige Ausführung - sehen so aus als wären es Torpfosten. Netz lässt sich ebenfalls superstabil mit den gelben Clips befestigen.
