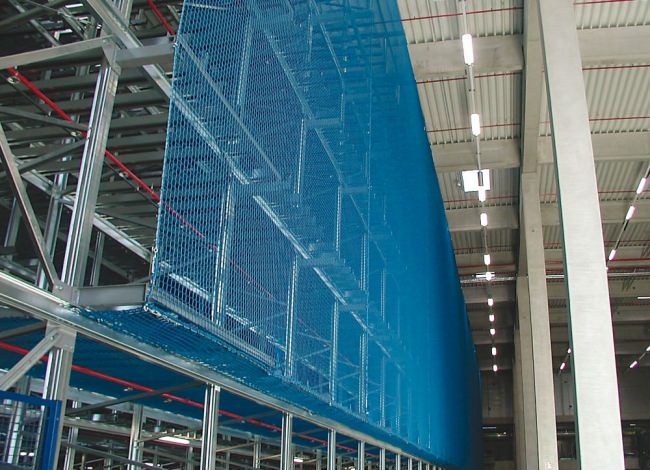

Pallet rack safety net for one 2.70-m-wide shelf bays
In high-bay storage facilities safety measures must be implemented to prevent the stored material from falling and to prevent the falling material from injuring any people. The use of pallet rack safety nets offers one possibility for this purpose. One positive side effect is the protection of valuable goods from extensive damage caused by falling down.
General advantages of the net solution:
Nets have a low individual weight, and are flexible and easy to install.
If need be, the nets can easily be dismantled to remove falling objects or to enable access to the material stored on the secured shelf bay.
Our high-strength polypropylene nets are available in different colors.
Plastic nets have the added benefit that they do not corrode, ensuring the nets always keep looking neat.
Advantages compared to metal mesh:
The soft material has a better energy absorption capacity.
Falling goods are better protected due to the nets’ stretching capacity.
When deployed as a fall safety net, the person is better protected from injury too.
Nets are easier to exchange.
Dimensions:2.80 x 3.00 m
Material:high tenacity polypropylene, knotless
Material Diameter:Ø 5.0 mm

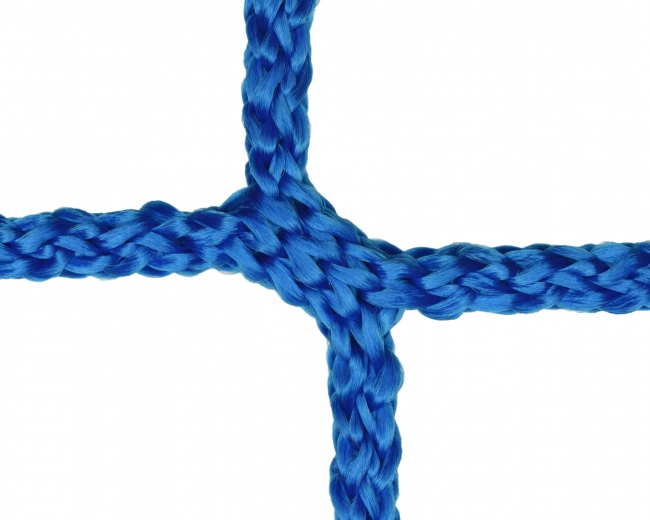

Mesh Size:45 x 45 mm
Pose of Meshs:quadratic (square)
Mesh Connection:knotless braid
Edge Design:reinforced selvage cord of approx. 7 mm
Max. Tensile Strength of a Mesh necessary force to tear a single mesh (tear resistance):3200 N equal to the weight force of a mass of 326 kilograms
Densile Breaking Force Referred to Density:7.0 cN/den
Breaking Elongation of Filament:15%
Standards and Rules:ASR 12/1-3 "protection against falling objects", ASR 17/1,2 "route ways", DGUV rule 108-007 (formerly BG regulation no. 234)
Certificate:Oeko-Tex® certificate 12.0.02466
Continuous Operating Temperature:-40 to +80 °C
Melting Point:165 °C
Washing Temperature (max.):30 °C
Yarn Moisture Regain:0%
Tensile Strength Reduction Because Of Moisture:0%
Resistance to Weak/Strong Acids measured at 25 °C ambient temperature:very good/good
Resistance to Weak/Strong Alkalis measured at 25 °C ambient temperature:good/not good
Resistance to Organic Solvents measured at 25 °C ambient temperature:good
Resistance to Benzine and Greases measured at 25 °C ambient temperature:very good
Bending Strength & Abrasion Resistance:good
Tensile Strength After Two Years of Climatic Influences:90%
Elasticity After Years of Climatic Influences:good long-term flexibility, little elongation
Flexibility When Used in Water:stays flexible
Contraction When Used in Water:low contraction
Contraction When Used Outside:no contraction
Behavior in High Heat / Fire:melting
Electrical Characteristics:isolating, no electrical conductivity
Your satisfaction and safety are very important to us. Regular quality inspections guarantee the high standard of our products. Our nets and fabric are designed to fulfil the most exacting standards and are characterised by their exceptional durability.
Not sure which net thickness is right for your specific purpose or do you perhaps have a different question? Trust our many years' experience and contact us!
