Custom-made Light Dome Safety Net

Custom-made Light Dome Securing Net | Safetynet365
Custom-made Light Dome Securing Net | Safetynet365
Custom-made Light Dome Securing Net | Safetynet365
Custom-made Light Dome Securing Net | Safetynet365
Custom-made Light Dome Securing Net | Safetynet365
Shipping Time: 8-10 working days
Item No.: 1741-100

Customise Your Product

Color:
Width:
cm
Length:
cm
Graduated Prices (for each):
from 1 m:    58,49 €/m
from 5 m:    39,48 €/m
from 10 m:    35,09 €/m
from 20 m:    29,24 €/m
  • Net Area:
  • Price per m: 0,00 €
  • Total Weight:
Qty pcs.
excl. VAT *1 0,00 €incl. VAT *2 0,00 €
Add to cart

  •  Description
  •  Technical Specifications
  •  More Images
  •  Reviews
Description
DEKRA

Custom-made safety net for securing light domes in conformity with EN 1263-1 and EN 795:1996. Enter the desired length and width into the appropriate fields. The surface area, weight and price of the net will then be automatically calculated and shown.

Please note: The Dekra test for light dome safety nets only applies to nets with lateral lengths between 2.00 and 3.00 m. All nets with at least one side length outside of this area have not been tested and are only manufactured on the basis of the test.



Since a lack of fall protection measures at light domes and skylights can frequently lead to serious injuries or even fatal accidents, movable protection facilities like safety nets are ever more important. Our light dome nets offer reliable protection for persons engaged in maintenance work and snow-clearing work in winter.



Installation

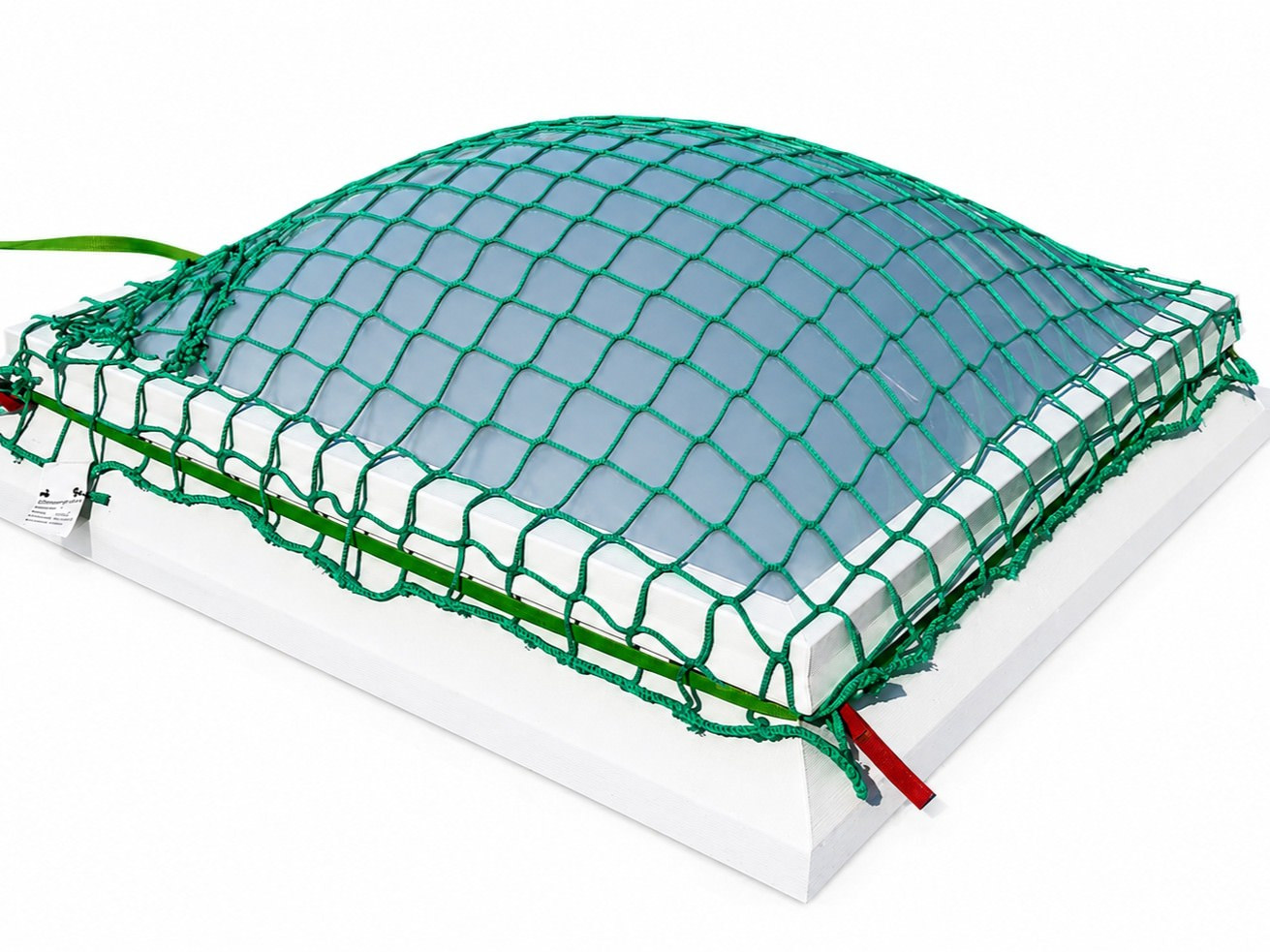

The net has to be placed over the complete light dome frame for mounting. The belt strap has then to be contracted under the frame so far that the complete net construction can no longer slide upwards over the frame. The dimensions given are the dimensions of the net. The light dome net must be selected correspondingly larger than the size of the light dome frame.

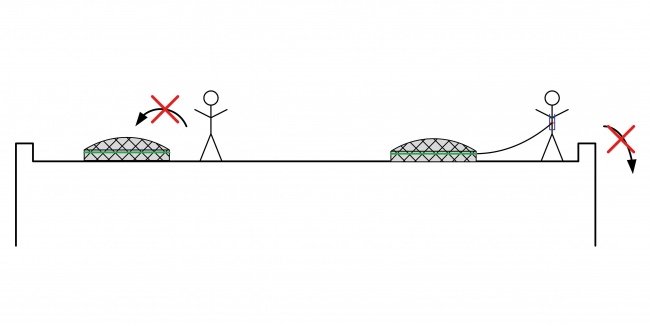

The skylight net is suitable for securing one person. When used as a fall protection, a professionally mounted skylight frame with overhang is a prerequisite. When used as a stop mechanism, a professionally mounted skylight frame with overhang and finished sealing is required.



Material

The net has a border measuring approx. 9 mm in thickness all around (see sample picture). An additional rope is sewn/linked to the border meshes. The border and all seams are executed in the same color as the net.

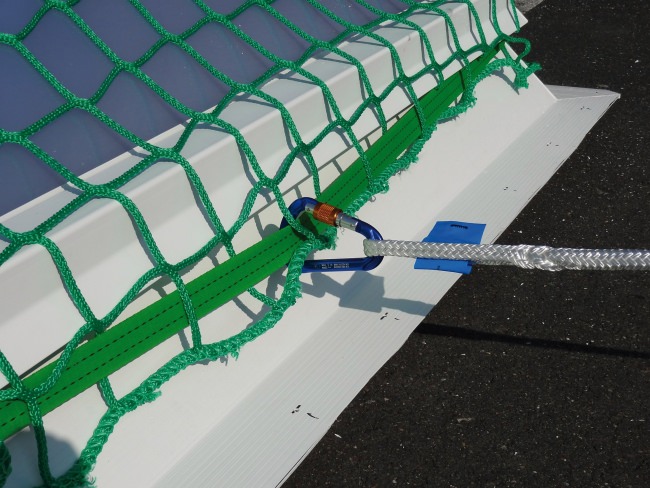

In addition, the light dome net is equipped with a 35 mm-thick belt strap with ratchet (permitted tractive force: 2000 daN). The tension belt is pulled together under the protruding parts of the light dome frame, thus providing stress-resistant anchorage for the net.

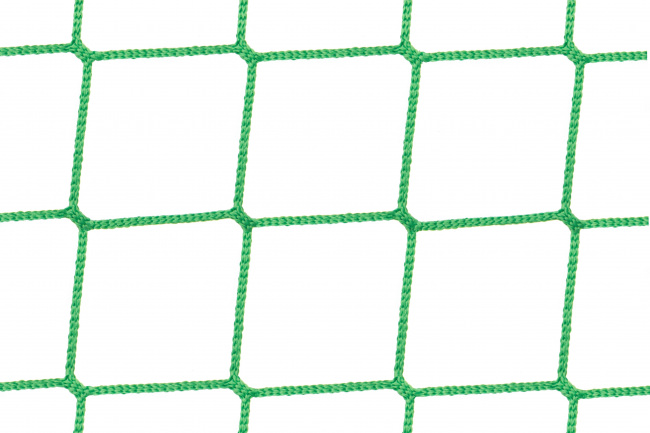

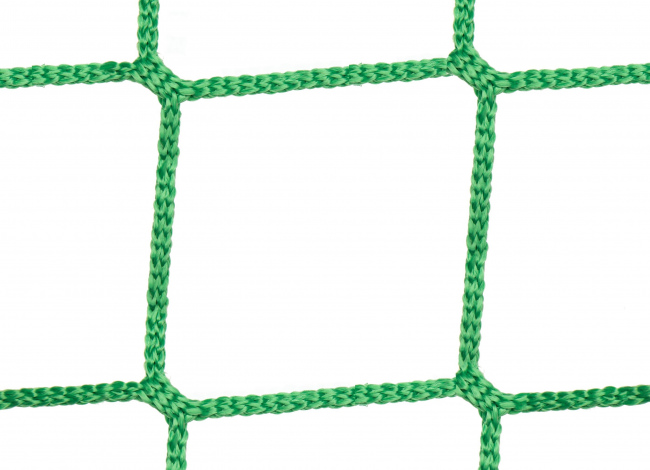

The safety net consists of woven, deep-dyed polypropylene filament yarn. This is a highly tearproof and stable synthetic fibre. Thanks to the knotless weave, which is no less stable than a knotted connection, the net keeps its shape perfectly.

The material is of course 100% non-toxic, and contact with mucus membranes (mouth, eyes) is completely safe as well. Thanks to their weather-resistance and UV-stability, our safety nets are suitable for both outdoor and indoor use.



Technical Specifications
Material:high tenacity polypropylene, knotless
Material Diameter: 4.75 mm
Mesh Size:100 x 100 mm
Pose of Meshs:quadratic (square)
Mesh Connection:knotless braid
Edge Design:reinforced selvage cord of approx. 9 mm, with integrated ratchet strap
Max. Tensile Strength of a Mesh necessary force to tear a single mesh (tear resistance):3000 N equal to the weight force of a mass of 306 kilograms
Permissible Tensile Force:belt strap: 2000 daN
Energy Absorption (approx.) The specifications refer to a test net, which is 3.00 x 3.00 m.:4.8 kJ
Minimum Tensile Load of Test Mesh:38 J
Standards and Rules:EN 795, EN 1263-1
Certificate:DEKRA certificate ZQS/B341/15, (DEKRA certificate only applies to nets with lateral lengths between 2.00 and 3.00 m), EC type examination certificate with CE-marking (CE 0158), Oeko-Tex® certificate 12.0.02466
Net Class:A2 Maximum mesh size: 100 mm,
Minimum breaking strength: 4.14 kJ
Safety Net System:S (rope-edged safety net)
Regular Inspection Interval:12 months
Number of Test Meshes Test meshes are rows of meshes which are connected with the net to determine the aging behavior. They can be removed from the net without impairing its functionality.:3 pcs.
Continuous Operating Temperature:-40 to +80 C
Melting Point:165 C
Yarn Moisture Regain:0%
Resistance to Weak/Strong Acids measured at 25 C ambient temperature:very good/good
Resistance to Weak/Strong Alkalis measured at 25 C ambient temperature:good/bad
Resistance to Organic Solvents measured at 25 C ambient temperature:good
Resistance to Benzine and Greases measured at 25 C ambient temperature:very good
Bending Strength & Abrasion Resistance:good
Weather-Resistance:good
UV-Resistance:300 kly
Tensile Strength After Two Years of Climatic Influences:90%
Application:fall protection and stop mechanism for one person
Customs Tariff No.:56081930

 Download product data sheet (PDF)



Your satisfaction and safety are very important to us. Regular quality inspections guarantee the high standard of our products. Our nets and fabric are designed to fulfil the most exacting standards and are characterised by their exceptional durability.



Not sure which net thickness is right for your specific purpose or do you perhaps have a different question? Trust our many years' experience and contact us!

 Download product data sheet (PDF)



Technical Specifications
Material:high tenacity polypropylene, knotless
Material Diameter: 4.75 mm
Mesh Size:100 x 100 mm
Pose of Meshs:quadratic (square)
Mesh Connection:knotless braid
Edge Design:reinforced selvage cord of approx. 9 mm, with integrated ratchet strap
Max. Tensile Strength of a Mesh necessary force to tear a single mesh (tear resistance):3000 N equal to the weight force of a mass of 306 kilograms
Permissible Tensile Force:belt strap: 2000 daN
Energy Absorption (approx.) The specifications refer to a test net, which is 3.00 x 3.00 m.:4.8 kJ
Minimum Tensile Load of Test Mesh:38 J
Standards and Rules:EN 795, EN 1263-1
Certificate:DEKRA certificate ZQS/B341/15, (DEKRA certificate only applies to nets with lateral lengths between 2.00 and 3.00 m), EC type examination certificate with CE-marking (CE 0158), Oeko-Tex® certificate 12.0.02466
Net Class:A2 Maximum mesh size: 100 mm,
Minimum breaking strength: 4.14 kJ
Safety Net System:S (rope-edged safety net)
Regular Inspection Interval:12 months
Number of Test Meshes Test meshes are rows of meshes which are connected with the net to determine the aging behavior. They can be removed from the net without impairing its functionality.:3 pcs.
Continuous Operating Temperature:-40 to +80 C
Melting Point:165 C
Yarn Moisture Regain:0%
Resistance to Weak/Strong Acids measured at 25 C ambient temperature:very good/good
Resistance to Weak/Strong Alkalis measured at 25 C ambient temperature:good/bad
Resistance to Organic Solvents measured at 25 C ambient temperature:good
Resistance to Benzine and Greases measured at 25 C ambient temperature:very good
Bending Strength & Abrasion Resistance:good
Weather-Resistance:good
UV-Resistance:300 kly
Tensile Strength After Two Years of Climatic Influences:90%
Application:fall protection and stop mechanism for one person
Customs Tariff No.:56081930
