Description
Lifting net with 2-ton payload in conformity with EN 1263-1

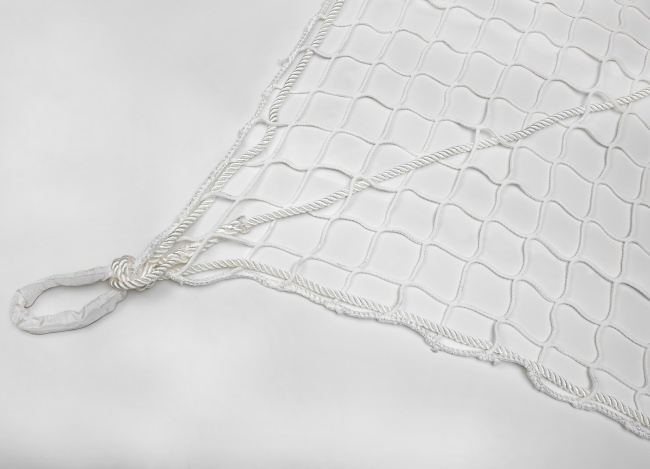

The net is equipped with a 14 mm-thick nylon border rope and 4 loops with chafing protection at the corners. In addition, for better force distribution, cross ropes (polyamide, 14 mm) are threaded through the net and attached to the upper border rope.
Technical Specifications
Dimensions:4.00 x 4.00 m
Material:high tenacity polypropylene, knotless
Material Diameter:Ø 6.0 mm

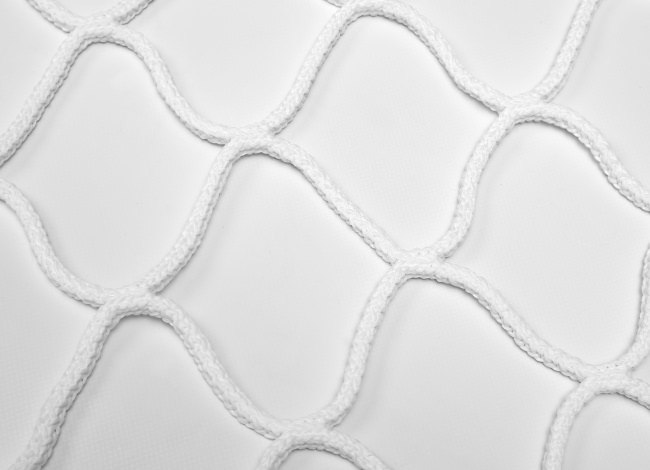

Mesh Size:100 x 100 mm
Pose of Meshs:quadratic (square)
Mesh Connection:knotless braid
Edge Design:reinforced selvage cord of approx. 9 mm, with edged rope, with two cross ropes through the net (PA Ø 14 mm), incl. loops with scuff protection on the corners
Edged Rope:nylon rope (Ø 14 mm, white), all around
Max. Tensile Strength of a Mesh necessary force to tear a single mesh (tear resistance):4200 N equal to the weight force of a mass of 428 kilograms
Densile Breaking Force Referred to Density:7.0 cN/den
Breaking Elongation of Filament:15%
Payload:2 tons
Standards and Rules:EN 1263-1
Certificate:Oeko-Tex® certificate 12.0.02466
Continuous Operating Temperature:-40 to +80 °C
Melting Point:165 °C
Washing Temperature (max.):30 °C
Yarn Moisture Regain:0%
Tensile Strength Reduction Because Of Moisture:0%
Resistance to Weak/Strong Acids measured at 25 °C ambient temperature:very good/good
Resistance to Weak/Strong Alkalis measured at 25 °C ambient temperature:good/not good
Resistance to Organic Solvents measured at 25 °C ambient temperature:good
Resistance to Benzine and Greases measured at 25 °C ambient temperature:very good
Bending Strength & Abrasion Resistance:good
Weather-Resistance:good
UV-Resistance:300 kly
Tensile Strength After Two Years of Climatic Influences:90%
Elasticity After Years of Climatic Influences:good long-term flexibility, little elongation
Flexibility When Used in Water:stays flexible
Contraction When Used in Water:low contraction
Contraction When Used Outside:no contraction
Behavior in High Heat / Fire:melting
Electrical Characteristics:isolating, no electrical conductivity
Customs Tariff No.:56081930
Area Density:360 g/m²
Total Weight:11.20 kg
Download product data sheet (PDF)
Your satisfaction and safety are very important to us. Regular quality inspections guarantee the high standard of our products. Our nets and fabric are designed to fulfil the most exacting standards and are characterised by their exceptional durability.
Not sure which net thickness is right for your specific purpose or do you perhaps have a different question? Trust our many years' experience and contact us!
Download product data sheet (PDF)
Technical Specifications
Dimensions:4.00 x 4.00 m
Material:high tenacity polypropylene, knotless
Material Diameter:Ø 6.0 mm
Mesh Size:100 x 100 mm
Pose of Meshs:quadratic (square)
Mesh Connection:knotless braid
Edge Design:reinforced selvage cord of approx. 9 mm, with edged rope, with two cross ropes through the net (PA Ø 14 mm), incl. loops with scuff protection on the corners
Edged Rope:nylon rope (Ø 14 mm, white), all around
Max. Tensile Strength of a Mesh necessary force to tear a single mesh (tear resistance):4200 N equal to the weight force of a mass of 428 kilograms
Densile Breaking Force Referred to Density:7.0 cN/den
Breaking Elongation of Filament:15%
Payload:2 tons
Standards and Rules:EN 1263-1
Certificate:Oeko-Tex® certificate 12.0.02466
Continuous Operating Temperature:-40 to +80 °C
Melting Point:165 °C
Washing Temperature (max.):30 °C
Yarn Moisture Regain:0%
Tensile Strength Reduction Because Of Moisture:0%
Resistance to Weak/Strong Acids measured at 25 °C ambient temperature:very good/good
Resistance to Weak/Strong Alkalis measured at 25 °C ambient temperature:good/not good
Resistance to Organic Solvents measured at 25 °C ambient temperature:good
Resistance to Benzine and Greases measured at 25 °C ambient temperature:very good
Bending Strength & Abrasion Resistance:good
Weather-Resistance:good
UV-Resistance:300 kly
Tensile Strength After Two Years of Climatic Influences:90%
Elasticity After Years of Climatic Influences:good long-term flexibility, little elongation
Flexibility When Used in Water:stays flexible
Contraction When Used in Water:low contraction
Contraction When Used Outside:no contraction
Behavior in High Heat / Fire:melting
Electrical Characteristics:isolating, no electrical conductivity
Customs Tariff No.:56081930
Area Density:360 g/m²
Total Weight:11.20 kg
