Guardrail Net 1.50 x 5.00 m with Isilink Clips

Scaffolding Net 1.50 x 5.00 m with Isilink Clips | Safetynet365
Scaffolding Net 1.50 x 5.00 m with Isilink Clips | Safetynet365
Scaffolding Net 1.50 x 5.00 m with Isilink Clips | Safetynet365
Scaffolding Net 1.50 x 5.00 m with Isilink Clips | Safetynet365
Scaffolding Net 1.50 x 5.00 m with Isilink Clips | Safetynet365
Scaffolding Net 1.50 x 5.00 m with Isilink Clips | Safetynet365
Scaffolding Net 1.50 x 5.00 m with Isilink Clips | Safetynet365
Scaffolding Net 1.50 x 5.00 m with Isilink Clips | Safetynet365
Scaffolding Net 1.50 x 5.00 m with Isilink Clips | Safetynet365
Scaffolding Net 1.50 x 5.00 m with Isilink Clips | Safetynet365
Shipping Time: 3-5 working days
Item No.: 3005-100

Customise Your Product

Color:
Qty pcs.
excl. VAT *1 32,50 € incl. VAT *2 38,68 €
Add to cart

  • Description
  • Technical Specifications
  • More Images
  • Reviews

Description

Geprüfte Sicherheit

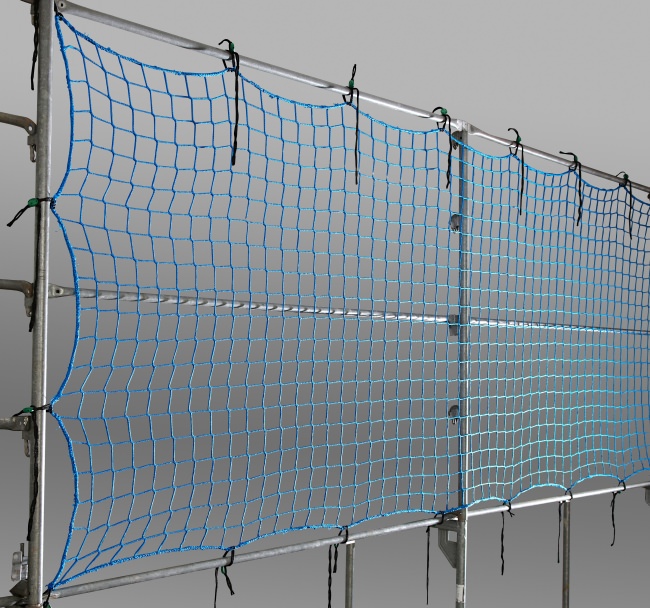

Guardrail safety net in conformity with EN 1263-1 and BG regulation no. 179 with linked-on border rope (safety net system U) and sewn Isilink clips at 75 cm intervals



Guardrail safety nets and nets in roof safety scaffolding must conform to EN 1263-1 and the BGR 179 safety rule. These nets are designated ‘Safety Net System U’ (safety net in supporting constructions for vertical use). When deploying nets, the intermediate rail can be dispensed with. Our guardrail safety nets fulfil all the necessary legal requirements and are characterised by the highest quality and durability.



The net has a border measuring approx. 9 mm in thickness all around (see sample picture). An additional rope is sewn/linked to the border meshes. The border gives the net a neat outer edge on all sides while simultaneously providing stable, stress-resistant anchorage points. The border and all seams are executed in the same color as the net.

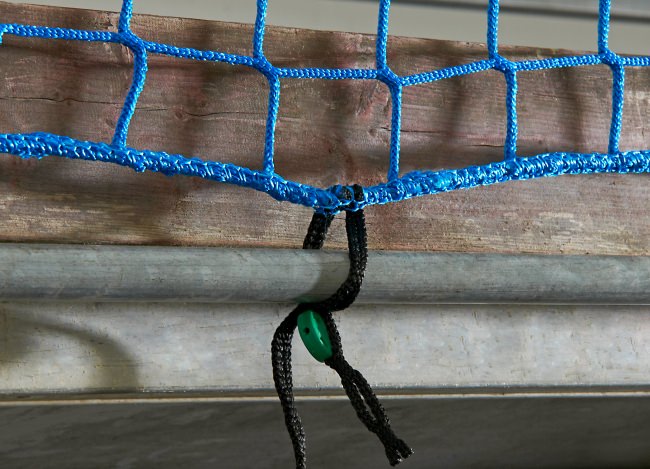

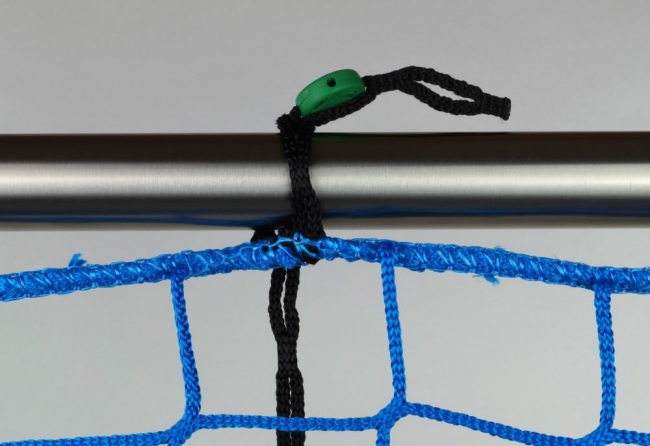

In addition, the guardrail safety net is equipped with Isilink clips for easy anchorage to scaffolding rails. These are sewn on at maximum intervals of 75 cm and have a length of approx. 60 cm. This method of anchoring nets to scaffolding is approved by the German BauBG association.

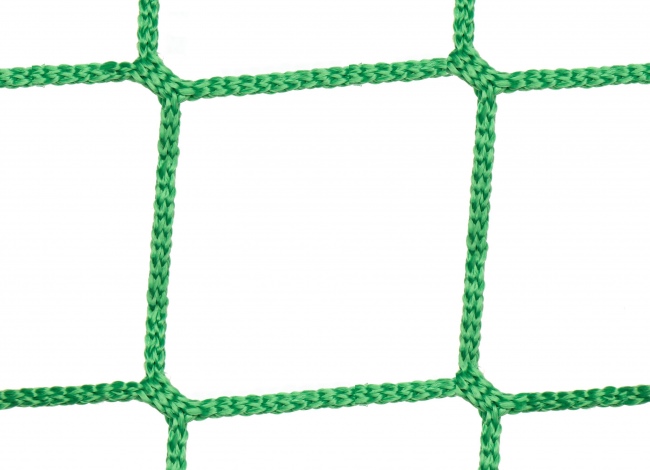

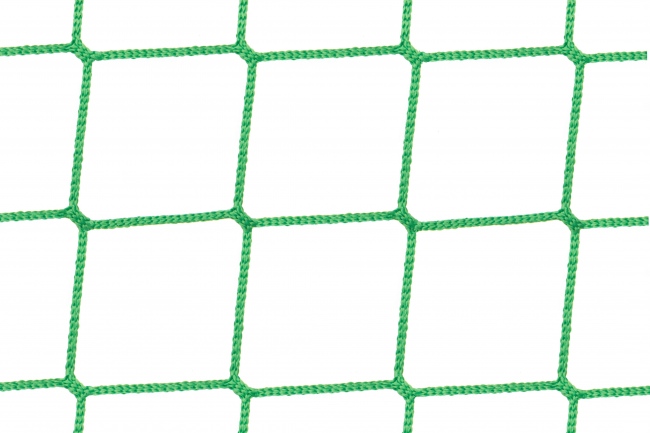

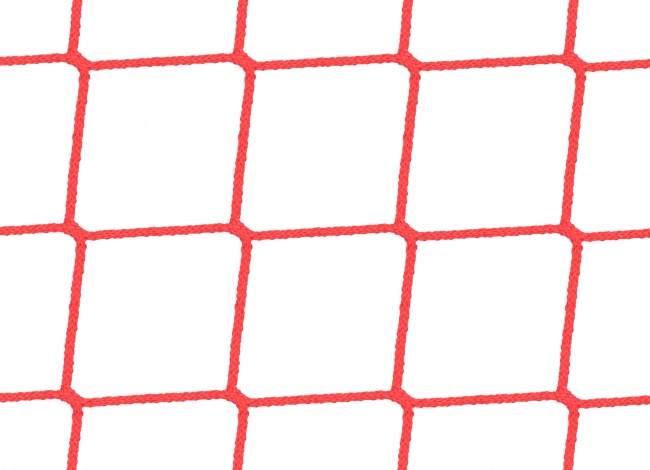

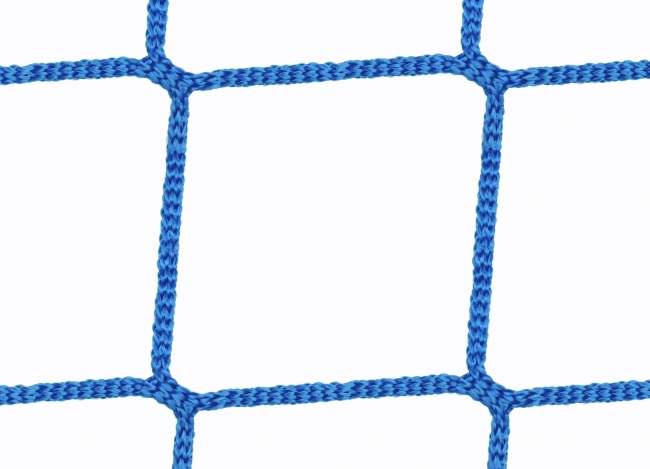

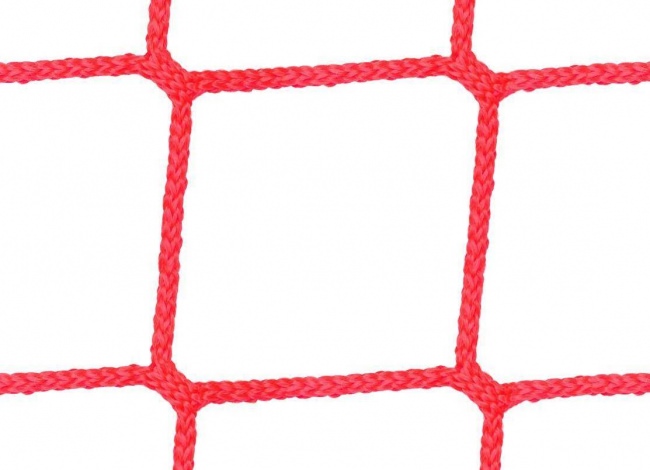

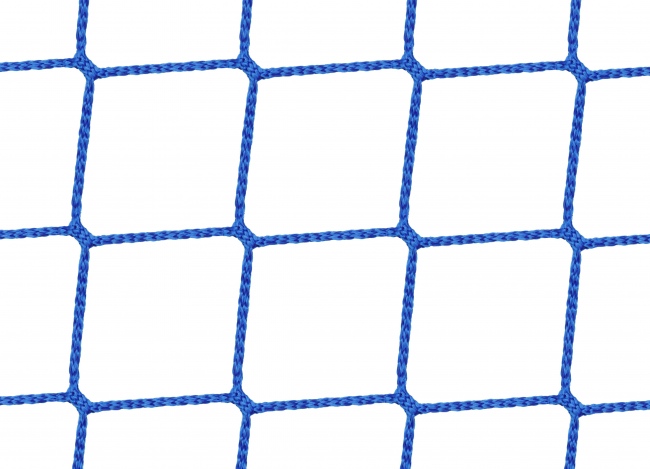

The safety net consists of woven, deep-dyed polypropylene filament yarn. This is a highly tearproof and stable synthetic fibre. Thanks to the knotless weave, which is no less stable than a knotted connection, the net keeps its shape perfectly.

The material is of course 100% non-toxic, and contact with mucus membranes (mouth, eyes) is completely safe as well. Thanks to their weather-resistance and UV-stability, our safety nets are suitable for both outdoor and indoor use.



Technical Specifications

Dimensions:1.50 x 5.00 m
Material:high tenacity polypropylene, knotless
Material Diameter: 5.0 mm
Mesh Size:100 x 100 mm
Pose of Meshs:quadratic (square)
Mesh Connection:knotless braid
Edge Design:reinforced selvage cord of approx. 9 mm, with integral surround rope and sewn Isilink clips (at an interval of 75 cm (max.), length approx. 60 cm
Max. Tensile Strength of a Mesh necessary force to tear a single mesh (tear resistance):3200 N equal to the weight force of a mass of 326 kilograms
Energy Absorption (approx.) The specifications refer to a test net, which is 3.00 x 3.00 m.:4.4 kJ
Standard:BG regulation no. 179, EN 1263-1
Certificate:DGUV verification certificate 13090, Oeko-Tex® certificate 12.0.02466
Net Class:A2 Maximum mesh size: 100 mm,
Minimum breaking strength: 4.14 kJ
Safety Net System:U (safety net in load-bearing construction for vertical use)
Regular Inspection Interval:12 months
Number of Test Meshes Test meshes are rows of meshes which are connected with the net to determine the aging behavior. They can be removed from the net without impairing its functionality.:3 pcs.
Continuous Operating Temperature:-40 to +80 C
Melting Point:165 C
Yarn Moisture Regain:0%
Resistance to Weak/Strong Acids measured at 25 C ambient temperature:very good/good
Resistance to Weak/Strong Alkalis measured at 25 C ambient temperature:good/bad
Resistance to Organic Solvents measured at 25 C ambient temperature:good
Resistance to Benzine and Greases measured at 25 C ambient temperature:very good
Bending Strength & Abrasion Resistance:good
Weather-Resistance:good
UV-Resistance:300 kly
Tensile Strength After Two Years of Climatic Influences:90%
Customs Tariff No.:56081930
Weight per Unit Area:250 g/m
Total Weight:3.25 kg

 Download product data sheet (PDF)



Our building site nets (fall safety nets, guardrail safety nets) are produced in conformity with the currently valid standards and regulations. The nets are certified in conformity with EN 1263-1, approved by the BauBG (German Building Trade Association) and have a GS (Tested Safety) test certificate.



Your satisfaction and safety are very important to us. Regular quality inspections guarantee the high standard of our products. Our nets and fabric are designed to fulfil the most exacting standards and are characterised by their exceptional durability.



Not sure which net thickness is right for your specific purpose or do you perhaps have a different question? Trust our many years' experience and contact us!



 Download product data sheet (PDF)



Technical Specifications

Dimensions:1.50 x 5.00 m
Material:high tenacity polypropylene, knotless
Material Diameter: 5.0 mm
Mesh Size:100 x 100 mm
Pose of Meshs:quadratic (square)
Mesh Connection:knotless braid
Edge Design:reinforced selvage cord of approx. 9 mm, with integral surround rope and sewn Isilink clips (at an interval of 75 cm (max.), length approx. 60 cm
Max. Tensile Strength of a Mesh necessary force to tear a single mesh (tear resistance):3200 N equal to the weight force of a mass of 326 kilograms
Energy Absorption (approx.) The specifications refer to a test net, which is 3.00 x 3.00 m.:4.4 kJ
Standard:BG regulation no. 179, EN 1263-1
Certificate:DGUV verification certificate 13090, Oeko-Tex® certificate 12.0.02466
Net Class:A2 Maximum mesh size: 100 mm,
Minimum breaking strength: 4.14 kJ
Safety Net System:U (safety net in load-bearing construction for vertical use)
Regular Inspection Interval:12 months
Number of Test Meshes Test meshes are rows of meshes which are connected with the net to determine the aging behavior. They can be removed from the net without impairing its functionality.:3 pcs.
Continuous Operating Temperature:-40 to +80 C
Melting Point:165 C
Yarn Moisture Regain:0%
Resistance to Weak/Strong Acids measured at 25 C ambient temperature:very good/good
Resistance to Weak/Strong Alkalis measured at 25 C ambient temperature:good/bad
Resistance to Organic Solvents measured at 25 C ambient temperature:good
Resistance to Benzine and Greases measured at 25 C ambient temperature:very good
Bending Strength & Abrasion Resistance:good
Weather-Resistance:good
UV-Resistance:300 kly
Tensile Strength After Two Years of Climatic Influences:90%
Customs Tariff No.:56081930
Weight per Unit Area:250 g/m
Total Weight:3.250 kg
