Guardrail Net 1.50 x 10.00 m

Guardrail Net 1.50 x 10.00 m pursuant to EN Standard 1263-1 | Safetynet365
Guardrail Net 1.50 x 10.00 m pursuant to EN Standard 1263-1 | Safetynet365
Guardrail Net 1.50 x 10.00 m pursuant to EN Standard 1263-1 | Safetynet365
Guardrail Net 1.50 x 10.00 m pursuant to EN Standard 1263-1 | Safetynet365
Guardrail Net 1.50 x 10.00 m pursuant to EN Standard 1263-1 | Safetynet365
Guardrail Net 1.50 x 10.00 m pursuant to EN Standard 1263-1 | Safetynet365
Guardrail Net 1.50 x 10.00 m pursuant to EN Standard 1263-1 | Safetynet365
Shipping Time: 8-10 working days
Item No.: 3003-060
Customise Your Product
Color(Please select)
excl. VAT *1 90,75 € incl. VAT *2 107,99 €
Add to cart

  •  Details
  •  Technical Specifications
  •  More images
  •  Recommendation
  •  Reviews

Description

DGUV

Guardrail safety net in conformity with EN 1263-1 and DGUV information 201-011 with linked-on border rope (safety net system U)



Guardrail safety nets and nets in roof safety scaffolding must conform to EN 1263-1 and the DGUV information 201-011. These nets are designated ‘Safety Net System U’ (safety net in supporting constructions for vertical use). When deploying nets, the intermediate rail can be dispensed with. Our guardrail safety nets fulfil all the necessary legal requirements and are characterised by the highest quality and durability.

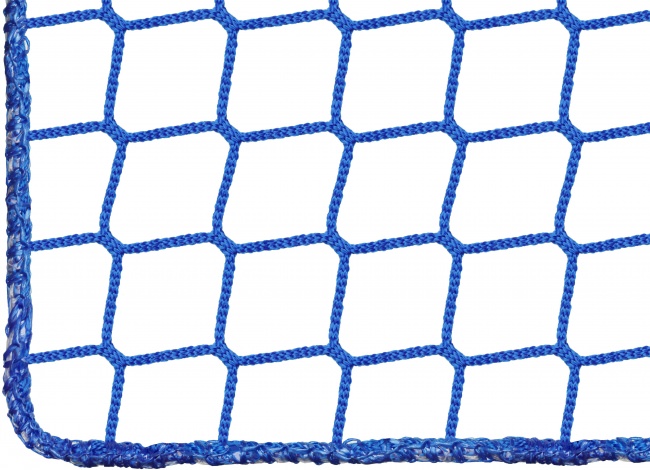

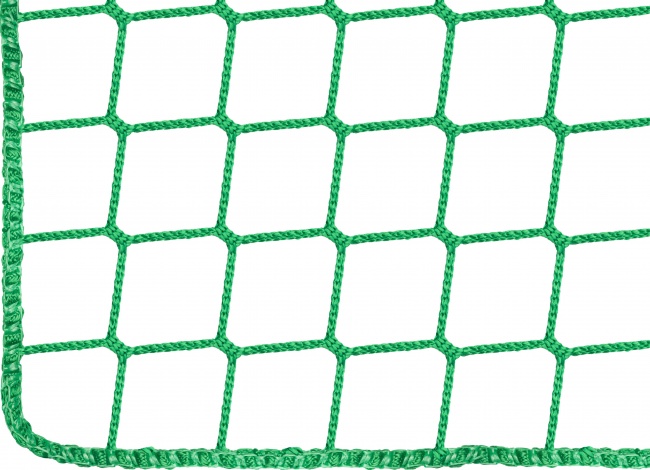

The net has a border measuring approx. 9 mm in thickness all around (see sample picture). An additional rope is sewn/linked to the border meshes. The border gives the net a neat outer edge on all sides while simultaneously providing stable, stress-resistant anchorage points. The border and all seams are executed in the same color as the net.

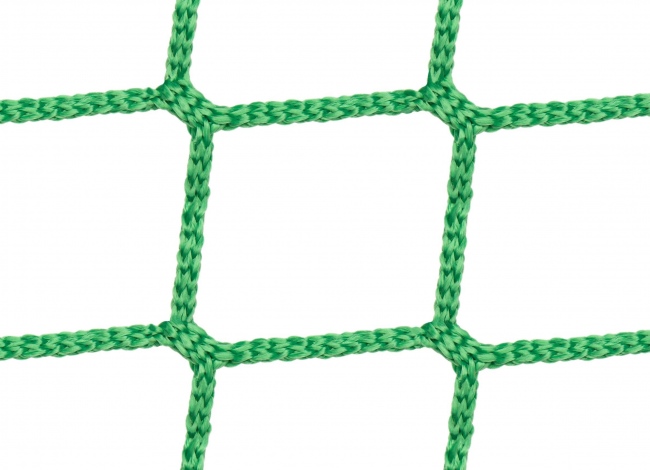

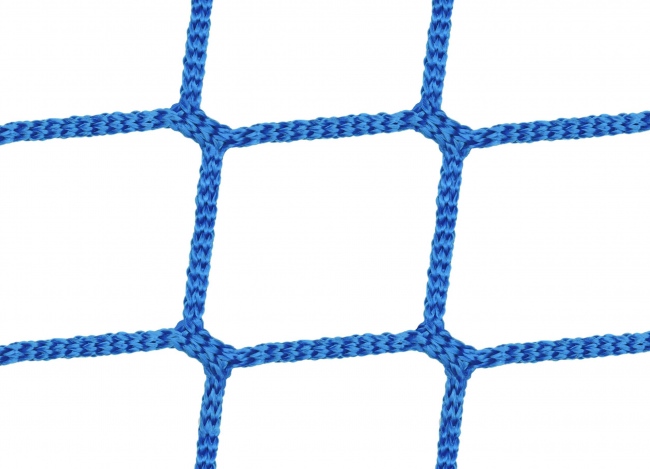

The safety net consists of woven, deep-dyed polypropylene filament yarn. This is a highly tearproof and stable synthetic fibre. Thanks to the knotless weave, which is no less stable than a knotted connection, the net keeps its shape perfectly.

The material is of course 100% non-toxic, and contact with mucus membranes (mouth, eyes) is completely safe as well. Thanks to their weather-resistance and UV-stability, our safety nets are suitable for both outdoor and indoor use.



Technical Specifications
Dimensions:1.50 x 10.00 m
Material:high tenacity polypropylene, knotless
Material Diameter:Ø 5.0 mm
Mesh Size:60 x 60 mm
Pose of Meshs:quadratic (square)
Mesh Connection:knotless braid
Edge Design:reinforced selvage cord of approx. 9 mm, with integral surround rope (sewn)
Max. Tensile Strength of a Mesh necessary force to tear a single mesh (tear resistance):3200 N equal to the weight force of a mass of 326 kilograms
Energy Absorption (approx.) The specifications refer to a test net, which is 3.00 x 3.00 m.:6.1 kJ
Densile Breaking Force Referred to Density:7.0 cN/den
Breaking Elongation of Filament:15%
Standards and Rules:BG regulation no. 179, DGUV information 101-011, DGUV information 201-023, EN 1263-1
Certificate:BG Eurotest verification certificate 18100021, Oeko-Tex® certificate 12.0.02466
Net Class:A1 Maximum mesh size: 60 mm,
Minimum breaking strength: 4.14 kJ
Safety Net System:U (safety net in load-bearing construction for vertical use)
Regular Inspection Interval:12 months
Number of Test Meshes Test meshes are rows of meshes which are connected with the net to determine the aging behavior. They can be removed from the net without impairing its functionality.:3 pcs.
Continuous Operating Temperature:-40 to +80 °C
Melting Point:165 °C
Washing Temperature (max.):30 °C
Yarn Moisture Regain:0%
Tensile Strength Reduction Because Of Moisture:0%
Resistance to Weak/Strong Acids measured at 25 °C ambient temperature:very good/good
Resistance to Weak/Strong Alkalis measured at 25 °C ambient temperature:good/not good
Resistance to Organic Solvents measured at 25 °C ambient temperature:good
Resistance to Benzine and Greases measured at 25 °C ambient temperature:very good
Bending Strength & Abrasion Resistance:good
Weather-Resistance:good
UV-Resistance:300 kly
Tensile Strength After Two Years of Climatic Influences:90%
Elasticity After Years of Climatic Influences:good long-term flexibility, little elongation
Flexibility When Used in Water:stays flexible
Contraction When Used in Water:low contraction
Contraction When Used Outside:no contraction
Behavior in High Heat / Fire:melting
Electrical Characteristics:isolating, no electrical conductivity
Customs Tariff No.:56081930
Weight per Unit Area:350 g/m²
Total Weight:5.00 kg

Download product data sheet (PDF)



Our building site nets (fall safety nets, guardrail safety nets) are produced in conformity with the currently valid standards and regulations. The nets are certified in conformity with EN 1263-1, approved by the BauBG (German Building Trade Association) and have a test certificate.



Your satisfaction and safety are very important to us. Regular quality inspections guarantee the high standard of our products. Our nets and fabric are designed to fulfil the most exacting standards and are characterised by their exceptional durability.



Not sure which net thickness is right for your specific purpose or do you perhaps have a different question? Trust our many years' experience and contact us!



Download product data sheet (PDF)



Technical Specifications
Dimensions:1.50 x 10.00 m
Material:high tenacity polypropylene, knotless
Material Diameter:Ø 5.0 mm
Mesh Size:60 x 60 mm
Pose of Meshs:quadratic (square)
Mesh Connection:knotless braid
Edge Design:reinforced selvage cord of approx. 9 mm, with integral surround rope (sewn)
Max. Tensile Strength of a Mesh necessary force to tear a single mesh (tear resistance):3200 N equal to the weight force of a mass of 326 kilograms
Energy Absorption (approx.) The specifications refer to a test net, which is 3.00 x 3.00 m.:6.1 kJ
Densile Breaking Force Referred to Density:7.0 cN/den
Breaking Elongation of Filament:15%
Standards and Rules:BG regulation no. 179, DGUV information 101-011, DGUV information 201-023, EN 1263-1
Certificate:BG Eurotest verification certificate 18100021, Oeko-Tex® certificate 12.0.02466
Net Class:A1 Maximum mesh size: 60 mm,
Minimum breaking strength: 4.14 kJ
Safety Net System:U (safety net in load-bearing construction for vertical use)
Regular Inspection Interval:12 months
Number of Test Meshes Test meshes are rows of meshes which are connected with the net to determine the aging behavior. They can be removed from the net without impairing its functionality.:3 pcs.
Continuous Operating Temperature:-40 to +80 °C
Melting Point:165 °C
Washing Temperature (max.):30 °C
Yarn Moisture Regain:0%
Tensile Strength Reduction Because Of Moisture:0%
Resistance to Weak/Strong Acids measured at 25 °C ambient temperature:very good/good
Resistance to Weak/Strong Alkalis measured at 25 °C ambient temperature:good/not good
Resistance to Organic Solvents measured at 25 °C ambient temperature:good
Resistance to Benzine and Greases measured at 25 °C ambient temperature:very good
Bending Strength & Abrasion Resistance:good
Weather-Resistance:good
UV-Resistance:300 kly
Tensile Strength After Two Years of Climatic Influences:90%
Elasticity After Years of Climatic Influences:good long-term flexibility, little elongation
Flexibility When Used in Water:stays flexible
Contraction When Used in Water:low contraction
Contraction When Used Outside:no contraction
Behavior in High Heat / Fire:melting
Electrical Characteristics:isolating, no electrical conductivity
Customs Tariff No.:56081930
Weight per Unit Area:350 g/m²
Total Weight:5.00 kg
