Shipping Time: 8-10 working days
Item No.: 215-045
Customise Your Product
Color(Please select)
excl. VAT *1 37,48 € incl. VAT *2 44,60 €
Add to cart

  •  Details
  •  Technical Specifications
  •  More Pictures
  •  Reviews

Description

Net for vertical or horizontal attachment to conveyor belts, to prevent objects from falling off. Unlike in the case of hard mesh, the objects can be caught in a soft net. At the same time, the net material protects the objects caught thanks to its capacity to stretch. The use of nets also protects people from injury due to falling objects.

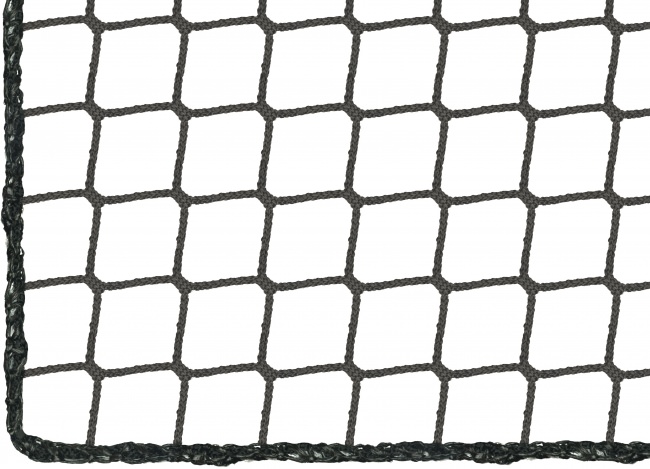

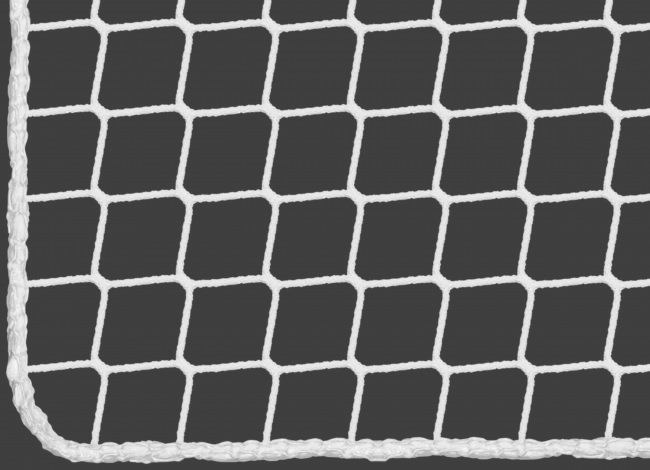

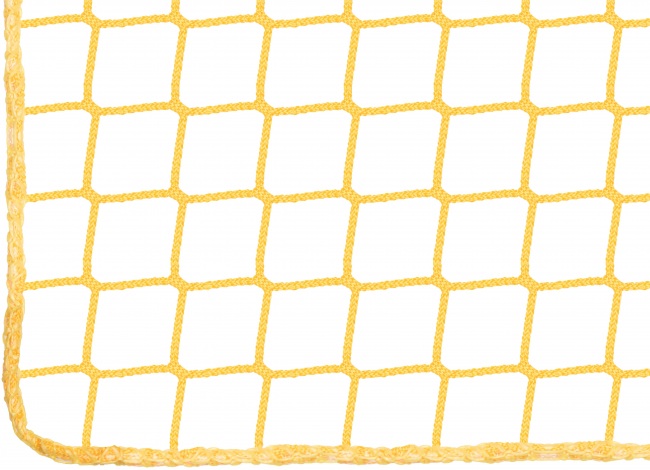

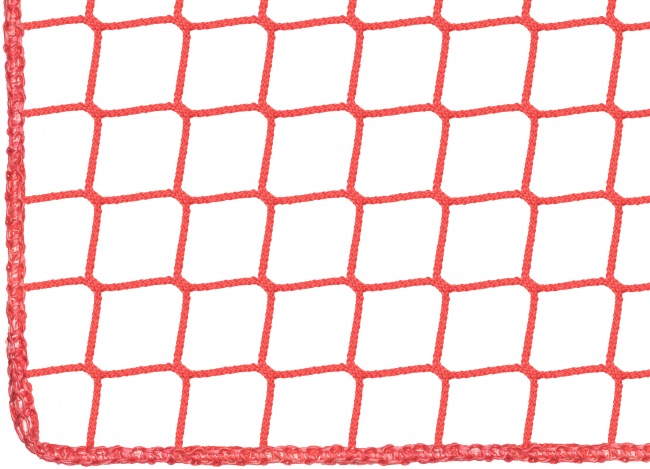

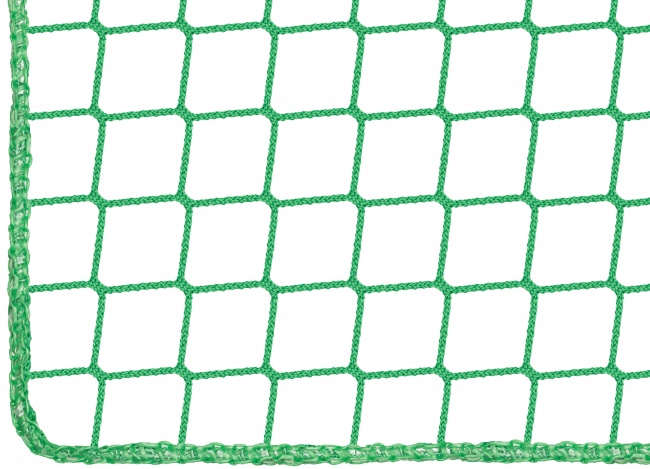

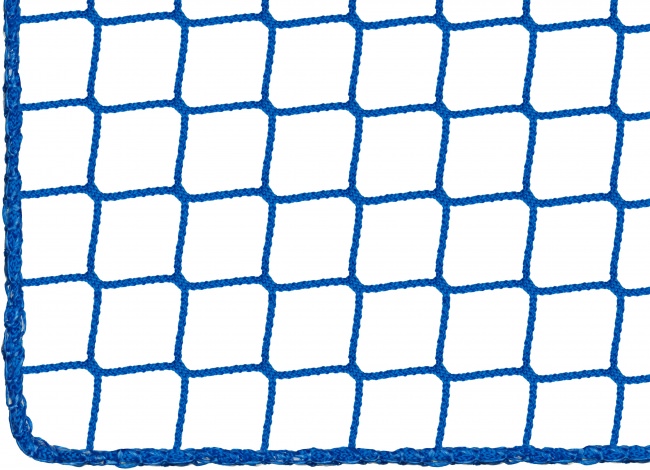

The net has a border measuring approx. 7 mm in thickness all around (see sample picture). An additional rope is sewn/linked to the border mesh. The border gives the net a neat outer edge on all sides and simultaneously ensures stable, stress-resistant anchorage points. The border and all seams are executed in the same color as the net.

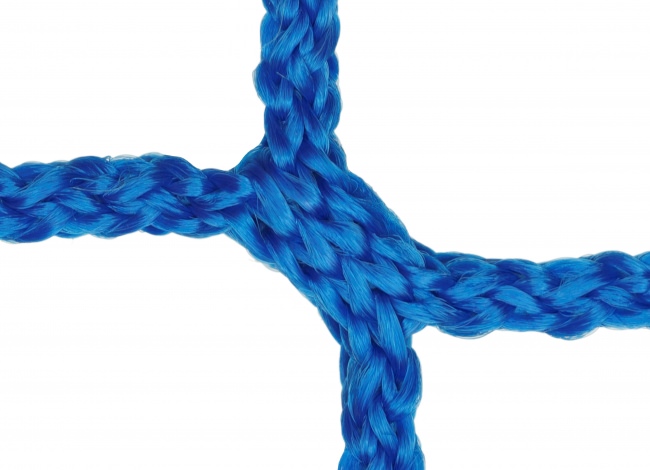

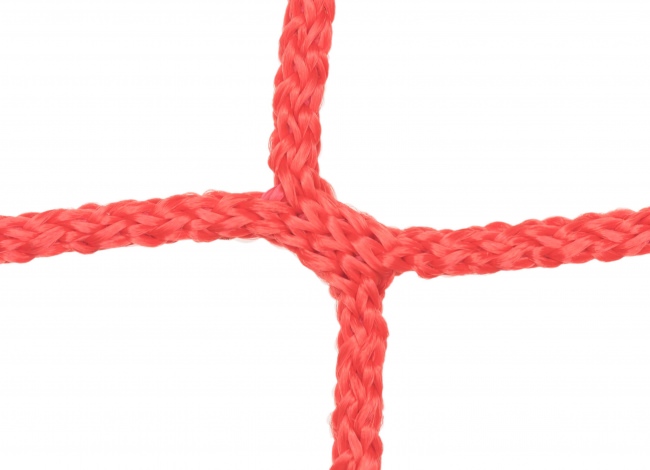

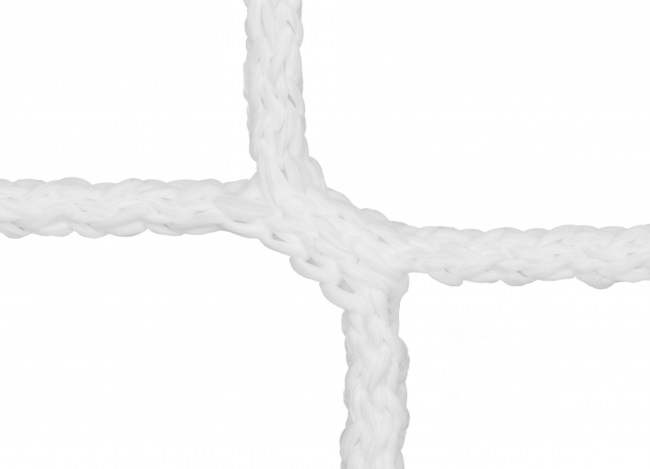

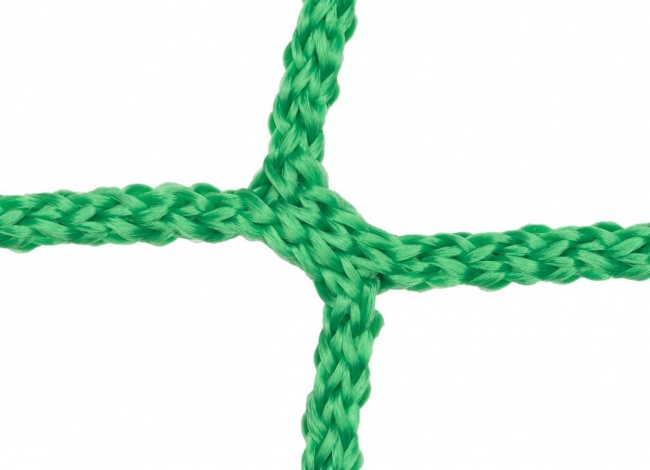

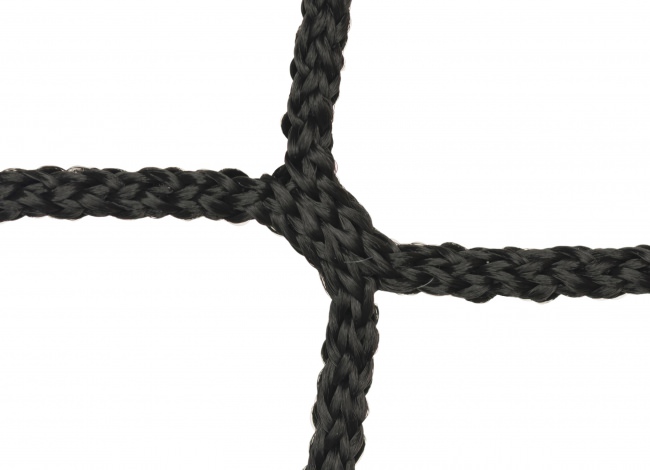

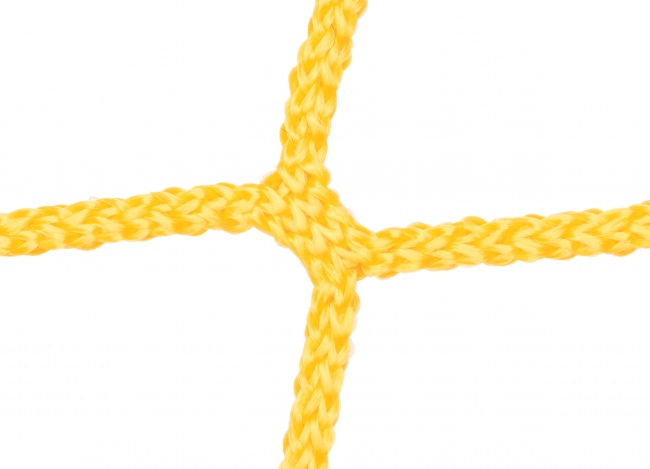

The safety net consists of woven, deep-dyed polypropylene filament yarn. This is a highly tearproof and stable synthetic fibre. Thanks to the knotless weave, which is no less stable than a knotted connection, the net keeps its shape perfectly.



Technical Specifications
Material:high tenacity polypropylene, knotless
Material Diameter:Ø 4.0 mm
Mesh Size:45 x 45 mm
Pose of Meshs:quadratic (square)
Mesh Connection:knotless braid
Edge Design:reinforced selvage cord of approx. 7 mm
Max. Tensile Strength of a Mesh necessary force to tear a single mesh (tear resistance):1600 N equal to the weight force of a mass of 163 kilograms
Densile Breaking Force Referred to Density:7.0 cN/den
Breaking Elongation of Filament:15%
Standards and Rules:ASR 12/1-3 "protection against falling objects", ASR 17/1,2 "route ways"
Certificate:Oeko-Tex® certificate 12.0.02466
Continuous Operating Temperature:-40 to +80 °C
Melting Point:165 °C
Washing Temperature (max.):30 °C
Yarn Moisture Regain:0%
Tensile Strength Reduction Because Of Moisture:0%
Resistance to Weak/Strong Acids measured at 25 °C ambient temperature:very good/good
Resistance to Weak/Strong Alkalis measured at 25 °C ambient temperature:good/not good
Resistance to Organic Solvents measured at 25 °C ambient temperature:good
Resistance to Benzine and Greases measured at 25 °C ambient temperature:very good
Bending Strength & Abrasion Resistance:good
Weather-Resistance:good
UV-Resistance:300 kly
Tensile Strength After Two Years of Climatic Influences:90%
Elasticity After Years of Climatic Influences:good long-term flexibility, little elongation
Flexibility When Used in Water:stays flexible
Contraction When Used in Water:low contraction
Contraction When Used Outside:no contraction
Behavior in High Heat / Fire:melting
Electrical Characteristics:isolating, no electrical conductivity
Customs Tariff No.:56081930
Area Density:210 g/m²

Download product data sheet (PDF)



Your satisfaction and safety are very important to us. Regular quality inspections guarantee the high standard of our products. Our nets and fabric are designed to fulfil the most exacting standards and are characterised by their exceptional durability.



Not sure which net thickness is right for your specific purpose or do you perhaps have a different question? Trust our many years' experience and contact us!



Download product data sheet (PDF)



Technical Specifications
Material:high tenacity polypropylene, knotless
Material Diameter:Ø 4.0 mm
Mesh Size:45 x 45 mm
Pose of Meshs:quadratic (square)
Mesh Connection:knotless braid
Edge Design:reinforced selvage cord of approx. 7 mm
Max. Tensile Strength of a Mesh necessary force to tear a single mesh (tear resistance):1600 N equal to the weight force of a mass of 163 kilograms
Densile Breaking Force Referred to Density:7.0 cN/den
Breaking Elongation of Filament:15%
Standards and Rules:ASR 12/1-3 "protection against falling objects", ASR 17/1,2 "route ways"
Certificate:Oeko-Tex® certificate 12.0.02466
Continuous Operating Temperature:-40 to +80 °C
Melting Point:165 °C
Washing Temperature (max.):30 °C
Yarn Moisture Regain:0%
Tensile Strength Reduction Because Of Moisture:0%
Resistance to Weak/Strong Acids measured at 25 °C ambient temperature:very good/good
Resistance to Weak/Strong Alkalis measured at 25 °C ambient temperature:good/not good
Resistance to Organic Solvents measured at 25 °C ambient temperature:good
Resistance to Benzine and Greases measured at 25 °C ambient temperature:very good
Bending Strength & Abrasion Resistance:good
Weather-Resistance:good
UV-Resistance:300 kly
Tensile Strength After Two Years of Climatic Influences:90%
Elasticity After Years of Climatic Influences:good long-term flexibility, little elongation
Flexibility When Used in Water:stays flexible
Contraction When Used in Water:low contraction
Contraction When Used Outside:no contraction
Behavior in High Heat / Fire:melting
Electrical Characteristics:isolating, no electrical conductivity
Customs Tariff No.:56081930
Area Density:210 g/m²
