Main pageBelt Strap Cargo NetsFor Lorries 3.5 t - 7.5 tBelt Strap Cargo Net For Lorries 3050 x 4250 mm - Complete Set
- Details
- Technical Specifications
- More images
- Reviews
Description
Cargo net for the flexible securing of loads for vehicles with a permissible maximum weight of 3.5 to 7.5 tons. The cargo net net consists of high-strength, extremely tearproof polyester. It can be used for securing both form-fit and force-fit loads. Delivery includes the appropriate tension belts (6 pieces) as well as detailed operating instructions.
Our cargo nets nets are produced in conformity with the currently valid standards and regulations. The nets have GS test certification as well as an identification mark showing conformity with the VDI 2700 ff. and EN 12195-2 standards.
Maximum Loading Weight
| LClashing point: | 800 daN |
| LCnet total: | 3600 daN |
| Calculation for 4 tension belts, 2 in each direction | |||||
|---|---|---|---|---|---|
| Frictional coefficient µ | Maximum loading weight in kg (per net) | ||||
| α = 20° β = 6° | α = 20° β = 55° | α = 65° β = 6° | α = 65° β = 55° | ||
| metal on metal | 0.1 | 500 | 1300 | 500 | 700 |
| wood on metal metal on wood | 0.2 | 900 | 1600 | 1200 | 1100 |
| non-slip mat | 0.5 | 6000 | 3800 | 4700 | 3700 |
| non-slip mat | 0.6 | 9000 | 6000 | 7800 | 6400 |
Lengthwise acceleration coefficient: 0.8
Crosswise acceleration coefficient: 0.5
Technical Specifications
Dimensions:3050 x 4250 mm
Material:polyester
Strap Width:50 mm
Mesh Size:300 x 300 mm
Pose of Meshs:quadratic (square)
Mesh Connection:seamed
Edge Design:with D rings

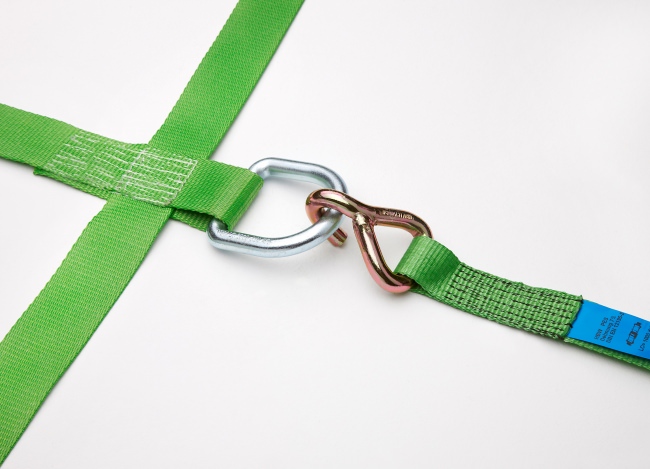

Eyelets:D rings out of steel, directly sewn to the strap
Permissible Tensile Force:800 daN (lashing point), 3600 daN (net total)
Breaking Elongation of Filament:10%
Standards and Rules:EN 12195-2, VDI standard 2700
Certificate:GS verification certificate
Continuous Operating Temperature:-40 to +100 °C
Melting Point:260 °C
Washing Temperature (max.):90 °C
Yarn Moisture Regain:0.5 to 2.0%
Tensile Strength Reduction Because Of Moisture:0%
Resistance to Weak/Strong Acids measured at 25 °C ambient temperature:good/not good
Resistance to Weak/Strong Alkalis measured at 25 °C ambient temperature:good/good
Resistance to Organic Solvents measured at 25 °C ambient temperature:good
Resistance to Benzine and Greases measured at 25 °C ambient temperature:good
Bending Strength & Abrasion Resistance:good
Tensile Strength After Two Years of Climatic Influences:90%
Elasticity After Years of Climatic Influences:good long-term flexibility, little elongation
Flexibility When Used in Water:stays flexible
Contraction When Used in Water:low contraction
Contraction When Used Outside:no contraction
Behavior in High Heat / Fire:melting
Electrical Characteristics:isolating, no electrical conductivity

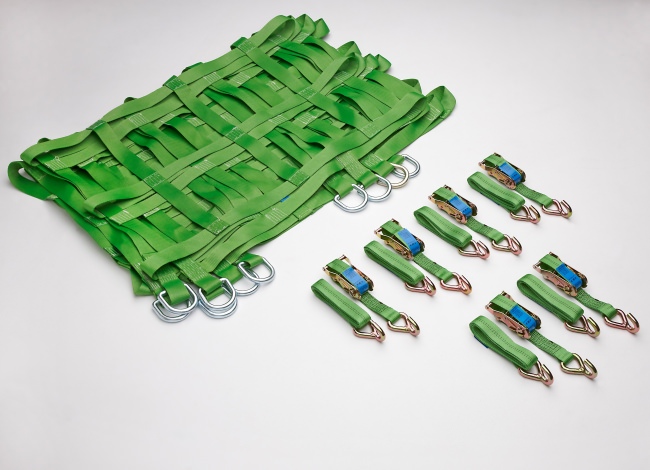

Included Parts:cargo net incl. 6 tension belts (two-piece load restraint assembly, max. tensile force: 1000 daN, length: 2.00 m)
Customs Tariff No.:63079010
Total Weight:16.00 kg
Download product data sheet (PDF)
Download product data sheet (PDF)
Technical Specifications
Dimensions:3050 x 4250 mm
Material:polyester
Strap Width:50 mm
Mesh Size:300 x 300 mm
Pose of Meshs:quadratic (square)
Mesh Connection:seamed
Edge Design:with D rings
Eyelets:D rings out of steel, directly sewn to the strap
Permissible Tensile Force:800 daN (lashing point), 3600 daN (net total)
Breaking Elongation of Filament:10%
Standards and Rules:EN 12195-2, VDI standard 2700
Certificate:GS verification certificate
Continuous Operating Temperature:-40 to +100 °C
Melting Point:260 °C
Washing Temperature (max.):90 °C
Yarn Moisture Regain:0.5 to 2.0%
Tensile Strength Reduction Because Of Moisture:0%
Resistance to Weak/Strong Acids measured at 25 °C ambient temperature:good/not good
Resistance to Weak/Strong Alkalis measured at 25 °C ambient temperature:good/good
Resistance to Organic Solvents measured at 25 °C ambient temperature:good
Resistance to Benzine and Greases measured at 25 °C ambient temperature:good
Bending Strength & Abrasion Resistance:good
Tensile Strength After Two Years of Climatic Influences:90%
Elasticity After Years of Climatic Influences:good long-term flexibility, little elongation
Flexibility When Used in Water:stays flexible
Contraction When Used in Water:low contraction
Contraction When Used Outside:no contraction
Behavior in High Heat / Fire:melting
Electrical Characteristics:isolating, no electrical conductivity
Included Parts:cargo net incl. 6 tension belts (two-piece load restraint assembly, max. tensile force: 1000 daN, length: 2.00 m)
Customs Tariff No.:63079010
Total Weight:16.00 kg
More Images
Customer Reviews
There are no reviews for this product yet.
