Description

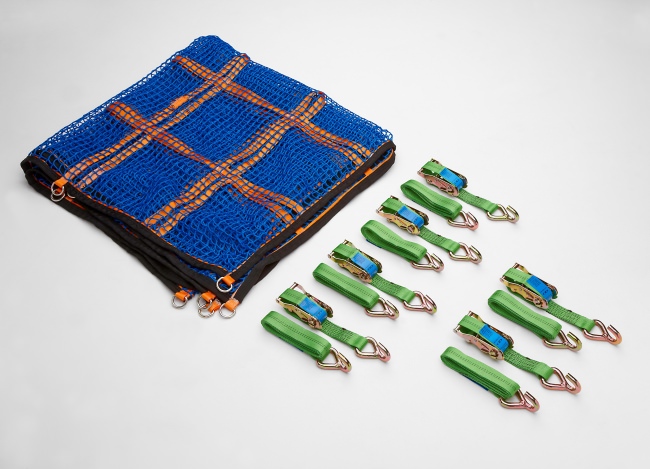

Cargo net combination with additional, close-mesh covering net for the flexible securing of cargos. Suitable for vehicles with a permissible maximum weight of up to 2 tons. The cargo net net consists of high-strength, extremely tearproof polyester. It can be used for securing both form-fit and force-fit loads. Delivery includes the appropriate tension belts (6 pieces) as well as detailed operating instructions.

Our cargo nets nets are produced in conformity with the currently valid standards and regulations. The nets have GS test certification as well as an identification mark showing conformity with the VDI 2700 ff. and EN 12195-2 standards.

Maximum Loading Weight

LC_{lashing point}:	400 daN
LC_{net total}:	1300 daN

Calculation for 4 tension belts, 2 in each direction
Frictional coefficient µ		Maximum loading weight in kg (per net)
Frictional coefficient µ		α = 20° β = 6°	α = 20° β = 55°	α = 65° β = 6°	α = 65° β = 55°
metal on metal	0.1	270	660	270	380
wood on metal metal on wood	0.2	450	820	610	570
non-slip mat	0.5	3000	1900	2300	1800
non-slip mat	0.6	4600	3000	3900	3200

Lengthwise acceleration coefficient: 0.8
Crosswise acceleration coefficient: 0.5

cargo net calculation

Technical Specifications

:1525 x 4825 mm

:high tenacity polypropylene, knotless, polyester

:Ø 2.3 mm (cover net)

:25 mm

:20 x 20 mm, 300 x 300 mm

:quadratic (square)

:seamed

:with edged polyester tape (approx. 25 mm wide), with D rings

:D rings out of steel, directly sewn to the strap

:400 daN (lashing point), 1300 daN (net total)

:10%
