Belt Strap Cargo Net 1525 x 4825 mm - Complete Set

Webbing Net (GS-tested) for Box Wagons 1525 x 4825 mm - Complete Set | Safetynet365
Webbing Net (GS-tested) for Box Wagons 1525 x 4825 mm - Complete Set | Safetynet365
Webbing Net (GS-tested) for Box Wagons 1525 x 4825 mm - Complete Set | Safetynet365
Webbing Net (GS-tested) for Box Wagons 1525 x 4825 mm - Complete Set | Safetynet365
Shipping Time: 8-10 working days
Item No.: 59500-150-04
Customise Your Product
Color
excl. VAT *1 640,00 € incl. VAT *2 761,60 €
Add to cart

  •  Details
  •  Technical Specifications
  •  More Pictures
  •  Reviews
 Ask a Question

Description

DGUV

Cargo net for the flexible securing of loads for vehicles with a permissible maximum weight of 2 to 5 tons. The cargo net net consists of high-strength, extremely tearproof polyester. It can be used for securing both form-fit and force-fit loads. Delivery includes the appropriate tension belts (6 pieces) as well as detailed operating instructions.



Our cargo nets nets are produced in conformity with the currently valid standards and regulations. The nets have GS test certification as well as an identification mark showing conformity with the VDI 2700 ff. and EN 12195-2 standards.





Maximum Loading Weight

LClashing point:500 daN
LCnet total:1300 daN



Calculation for 4 tension belts, 2 in each direction
Frictional coefficient µMaximum loading weight in kg (per net)
α = 20°
β = 6°		α = 20°
β = 55°		α = 65°
β = 6°		α = 65°
β = 55°
metal on metal0.1330830340480
wood on metal
metal on wood		0.25601000760720
non-slip mat0.53700240029002300
non-slip mat0.65800370049004000



  Lengthwise acceleration coefficient: 0.8
  Crosswise acceleration coefficient: 0.5

Cargo net calculation





Technical Specifications
Dimensions:1525 x 4825 mm
Material:polyester
Strap Width:25 mm
Mesh Size:150 x 150 mm
Pose of Meshs:quadratic (square)
Mesh Connection:seamed
Edge Design:with D rings

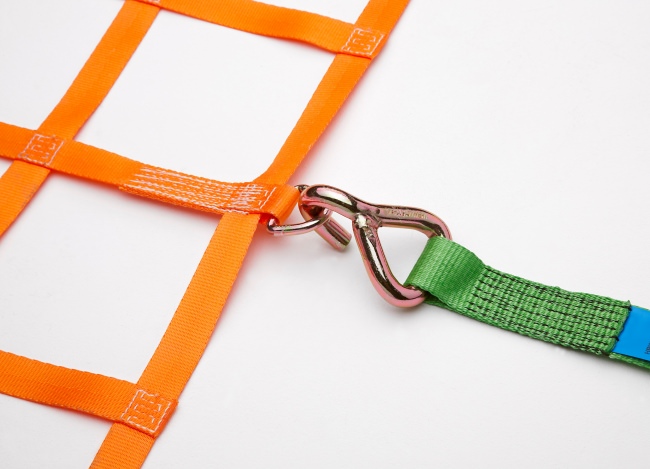

Eyelets:D rings out of steel, directly sewn to the strap
Permissible Tensile Force:500 daN (lashing point), 1300 daN (net total)
Breaking Elongation of Filament:10%
Standards and Rules:EN 12195-2, VDI standard 2700
Certificate:GS verification certificate
Continuous Operating Temperature:-40 to +100 °C
Melting Point:260 °C
Washing Temperature (max.):90 °C
Yarn Moisture Regain:0.5 to 2.0%
Tensile Strength Reduction Because Of Moisture:0%
Resistance to Weak/Strong Acids measured at 25 °C ambient temperature:good/not good
Resistance to Weak/Strong Alkalis measured at 25 °C ambient temperature:good/good
Resistance to Organic Solvents measured at 25 °C ambient temperature:good
Resistance to Benzine and Greases measured at 25 °C ambient temperature:good
Bending Strength & Abrasion Resistance:good
Tensile Strength After Two Years of Climatic Influences:90%
Elasticity After Years of Climatic Influences:good long-term flexibility, little elongation
Flexibility When Used in Water:stays flexible
Contraction When Used in Water:low contraction
Contraction When Used Outside:no contraction
Behavior in High Heat / Fire:melting
Electrical Characteristics:isolating, no electrical conductivity

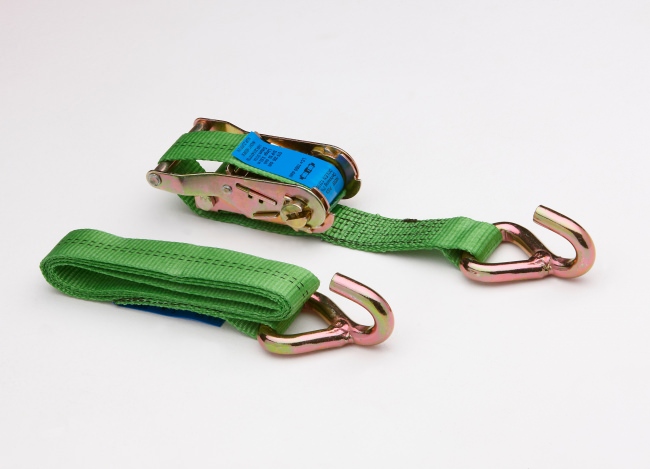

Included Parts:cargo net incl. 6 tension belts (two-piece load restraint assembly, max. tensile force: 1000 daN, length: 2.00 m)
Customs Tariff No.:63079010
Total Weight:6.50 kg

Download product data sheet (PDF)



Download product data sheet (PDF)



Technical Specifications
Dimensions:1525 x 4825 mm
Material:polyester
Strap Width:25 mm
Mesh Size:150 x 150 mm
Pose of Meshs:quadratic (square)
Mesh Connection:seamed
Edge Design:with D rings
Eyelets:D rings out of steel, directly sewn to the strap
Permissible Tensile Force:500 daN (lashing point), 1300 daN (net total)
Breaking Elongation of Filament:10%
Standards and Rules:EN 12195-2, VDI standard 2700
Certificate:GS verification certificate
Continuous Operating Temperature:-40 to +100 °C
Melting Point:260 °C
Washing Temperature (max.):90 °C
Yarn Moisture Regain:0.5 to 2.0%
Tensile Strength Reduction Because Of Moisture:0%
Resistance to Weak/Strong Acids measured at 25 °C ambient temperature:good/not good
Resistance to Weak/Strong Alkalis measured at 25 °C ambient temperature:good/good
Resistance to Organic Solvents measured at 25 °C ambient temperature:good
Resistance to Benzine and Greases measured at 25 °C ambient temperature:good
Bending Strength & Abrasion Resistance:good
Tensile Strength After Two Years of Climatic Influences:90%
Elasticity After Years of Climatic Influences:good long-term flexibility, little elongation
Flexibility When Used in Water:stays flexible
Contraction When Used in Water:low contraction
Contraction When Used Outside:no contraction
Behavior in High Heat / Fire:melting
Electrical Characteristics:isolating, no electrical conductivity
Included Parts:cargo net incl. 6 tension belts (two-piece load restraint assembly, max. tensile force: 1000 daN, length: 2.00 m)
Customs Tariff No.:63079010
Total Weight:6.50 kg
Webbing Net (GS-tested) for Box Wagons 1525 x 4825 mm - Complete Set | Safetynet365
Webbing Net (GS-tested) for Box Wagons 1525 x 4825 mm - Complete Set | Safetynet365
Webbing Net (GS-tested) for Box Wagons 1525 x 4825 mm - Complete Set | Safetynet365
