Description

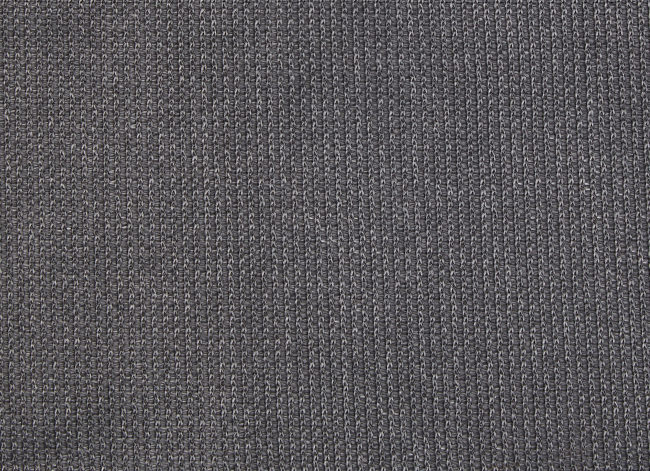

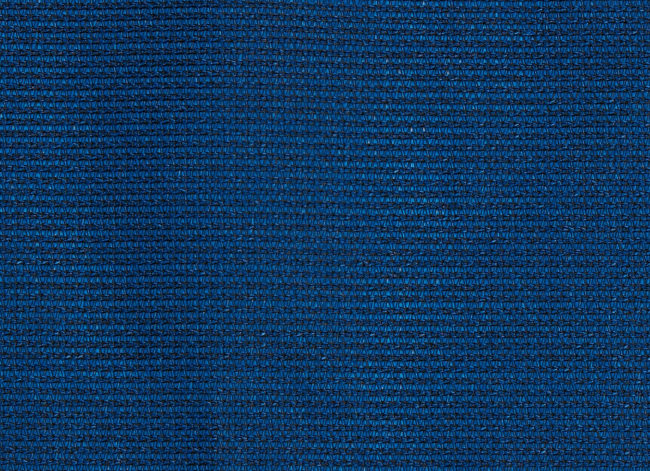

The tightly woven tarpaulin material consists of UV-resistant, air-permeable PE ribbon raschel knitted fabric with 320 g/m². The air-permeable material prevents the tarpaulin from blowing up in strong winds. Our fabric tarpaulins are suitable for both outdoor and indoor use due to their weather resistance and UV stabilisation. Supplied unassembled as a roll in 3.00 x 32.00 m.

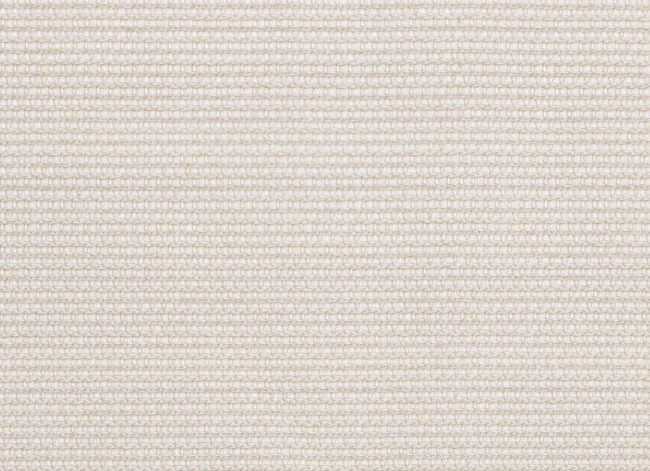

Flame-retardant fabric (except cream colour).
Technical Specifications
Dimensions:3.00 x 32.00 m
Material:polyethylene, flame-retardant, woven tight
Type of Textile:tape/monofilament closemesh, air and water permeable
Material Diameter:Material Thickness: 1.2 mm
Mesh Size:0.3 x 0.3 mm
Production Tolerance:external dimensions: ± 2.5 cm
Shading:90%
Edge Design:without edge
Breaking Force:Warp: 1236 N, Weft: 1512 N
Breaking Elongation of Filament:15%
Standards and Rules:EN 13501-1 (flame-retarding), classification B-s1 d0 B: flame retardant
s1: absent/weak smoke emission
d0: no dripping
, (except creme-colored version)
s1: absent/weak smoke emission
d0: no dripping
, (except creme-colored version)
Continuous Operating Temperature:-25 bis +80 °C
Melting Point:155 °C
Yarn Moisture Regain:0%
Tensile Strength Reduction Because Of Moisture:0%
Resistance to Weak/Strong Acids measured at 25 °C ambient temperature:very good/good
Resistance to Weak/Strong Alkalis measured at 25 °C ambient temperature:good/good
Resistance to Organic Solvents measured at 25 °C ambient temperature:good
Resistance to Benzine and Greases measured at 25 °C ambient temperature:very good
Bending Strength & Abrasion Resistance:good
Weather-Resistance:good
UV-Resistance:250 kly
Tensile Strength After Two Years of Climatic Influences:90%
Elasticity After Years of Climatic Influences:good long-term flexibility, no elongation
Flexibility When Used in Water:stays flexible
Contraction When Used in Water:low contraction
Contraction When Used Outside:low contraction
Behavior in High Heat / Fire:melting
Electrical Characteristics:isolating, no electrical conductivity
Customs Tariff No.:60053700
Weight per Unit Area:320 g/m²
Total Weight:31.00 kg
Download product data sheet (PDF)
Your satisfaction and safety are very important to us. Regular quality inspections guarantee the high standard of our products. Our nets and fabric are designed to fulfil the most exacting standards and are characterised by their exceptional durability.
Not sure which net thickness is right for your specific purpose or do you perhaps have a different question? Trust our many years' experience and contact us!
