Custom-made Steel Wire Net (by the m)

Steel Wire Rope Net with 50 mm Mesh Size | safetynet365.com
Steel Wire Rope Net with 50 mm Mesh Size | safetynet365.com
Steel Wire Rope Net with 50 mm Mesh Size | safetynet365.com
Steel Wire Rope Net with 50 mm Mesh Size | safetynet365.com
Steel Wire Rope Net with 50 mm Mesh Size | safetynet365.com
Steel Wire Rope Net with 50 mm Mesh Size | safetynet365.com
Shipping Time: 20-25 working days
Item No.: 4615-050

Customise Your Product

Width:
cm
Length:
cm
Graduated Prices (for each):
from 1 m:    96,11 €/m
from 5 m:    88,12 €/m
from 10 m:    80,13 €/m
  • Net Area:
  • Price per m: 0,00 €
  • Total Weight:
Qty pcs.
excl. VAT *1 0,00 €incl. VAT *2 0,00 €
Add to cart

  •  Description
  •  Technical Specifications
  •  More Images
  •  Reviews
Description

Custom-made steel wire net with high mechanical load capacity for industry, construction sites and the public sector. Enter the desired dimensions in the appropriate fields above. Net area and price will be calculated and displayed automatically.



Material

The steel cable used has a 7x7 construction. It is twisted from seven strands, which consist of seven galvanized wires.

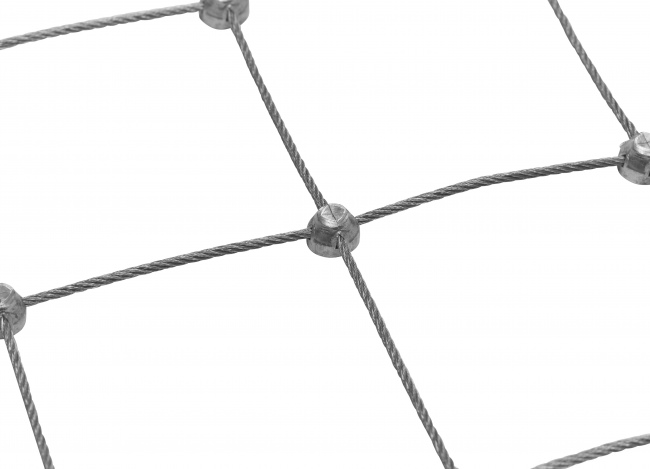

The ropes are running in vertical and parallel lines and are fixed at the crossing points using aluminium cross clamps. The clamps are pressed to a permanent connection. The rounded shape of the clamps ensures good haptics and minimizes the risk of injury.

The steel wire mesh is highly resilient and weather-resistant, making it suitable for continuous use. Please note, that the steel wire mesh is a rigid network. In contrast to textile nets the energy consumption is more erratic. Depending on the nature of load on the network, the specified slip resistance of the wire connectors is also relevant beside the breaking force of the ropes.



Dimensions

The net size always means the dimension from the inner edge of the loop to the inner edge of the loop on the opposite side (respectively th emeasure between the attachment points).

Steel wire nets should be installed with a slight tension, which reduces the effectiveness of an impact. It should be noted that the loops can distort under load when they are attached at certain points and can therefore change in length. In this case, the dimension of the netting should be reduced accordingly. Manufacturing tolerances are subject to change depending on the design and type of fastening.



Drahtseilnetz Maschenverlauf Variante 1

unloaded loop
Kletternetz Ausführung Befestigungsmittel 4

loaded loop

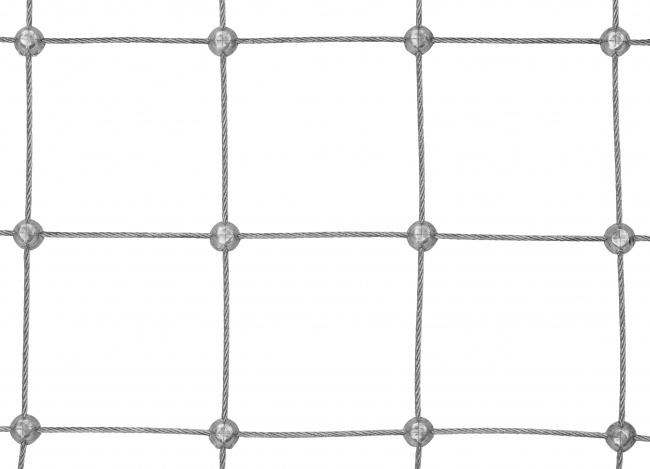

The specified mesh size describes the dimension between the inner edges of the wire ropes. The size of the meshes and especially the edge meshes is adjusted so that they match the size ordered and the type of edge design and can therefore vary slightly.

The maximum production width is 500 cm. We can offer you wider networks on request. However, the length is not limited. The nets can be made up to a weight of 1,000 kg per single net. We recommend separating nets weighing over 300 kilograms into several individual nets.



Edge Design and Stitch Course

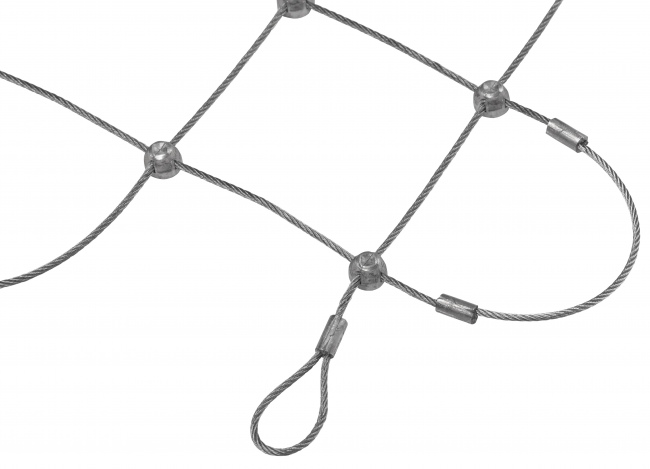

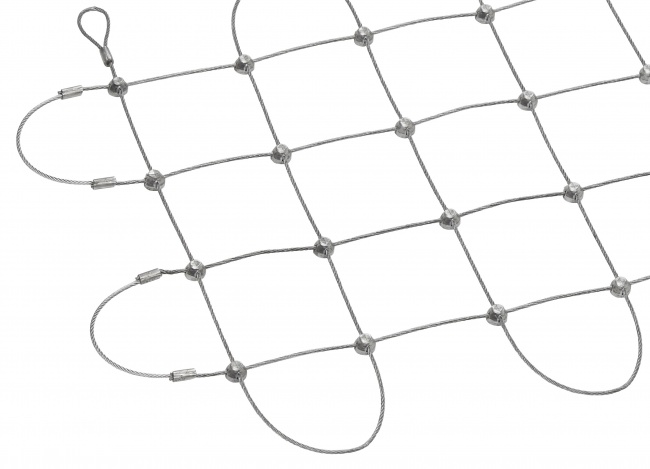

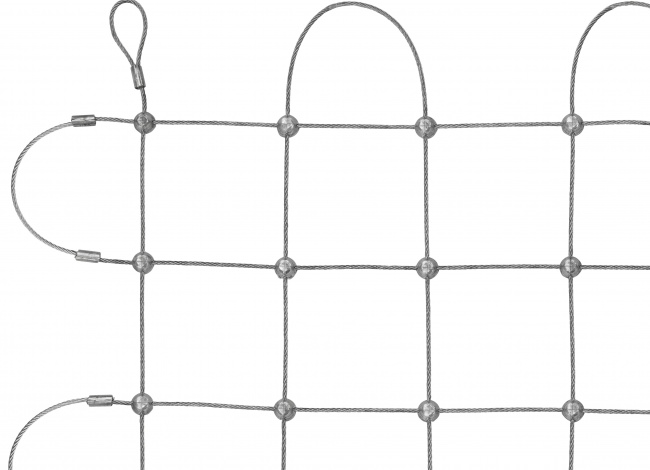

The edges of the net are designed as loops as standard. Due to the meandering course of the ropes, the net has a loop on every second stitch. Depending on the number of individual strands, the start and end point of a rope can be pressed to a loop, converted in the direction or executed as a thimble. Depending on the overall size and aspect ratio, the net can consist of one or more individual steel cables.



stitch course exampel1



Example of closed segments in one direction and open endpoints in the other direction

stitch course exampel2



Example for closed segments only

stitch course exampel3



Example of only open endpoints



stitch course exampel4



Example of a net made out of a single strand



stitch course exampel3



Example of a net with optional fasteners on two sides



stitch course exampel4



Example of a net with optional fasteners all around





Please always state your frame dimensions. The dimensions refer to the distance from anchor point to anchor point. In the case of the standard version with loops, the inner edge of the outer loops is the reference point.



Assembly

The loops on every second mesh serve as an attachment point. For example, they can be mounted directly to a substructure with hooks or eyes. Another option is to mount the net with rigid profiles (profiles or pipes made of steel or aluminium). Alternatively, an additional steel cable can be used, which is threaded and tensioned through the edge meshes.

Attention: The wire rope nets must not be pinched or warped during assembly. Pinched or warped nets have a considerably lower strength due to increased shear forces or additional tension in the edge area.



Wire net fastening in frame construction



Fastening in frame construction
Wire net fastening with profiles



Fastening with profiles
Wire net fastening with tensioned steel cables



Fastening with tensioned steel cables
Wire net fastening with wrapped steel cable



Fastening with wrapped steel cable



Optional Fasteners

On request, optional fasteners can be assembeld to the rope ends. The fasteners are then pressed or screwed directly to the rope ends of the net.

Please contact us if you are interested in an offer.



wire rope net fasteners thimble

Thimble

Thimble made of galvanized steel or stainless steel, pressed with aluminum clamp.

wire rope net fasteners Gewinde

Fitting with thread

Attachment made of galvanized steel or stainless steel with an open thread. Different diameters and lengths are possible depending on the rope strength.

wire rope net fasteners Innengewinde

Fitting with internal thread

Galvanized steel or stainless steel fitting with internal thread. Different diameters and lengths are possible depending on the rope strength.

wire rope net fasteners Öse

Fitting with eyelet

Galvanized steel or stainless steel attachment with eyelet.

wire rope net fasteners Gabel

Fitting with fork

Galvanized steel or stainless steel attachment with fork and locking bolt. Different sizes are available depending on the rope strength.

wire rope net fasteners Gabel

Steel cable

Additional steel rope of suitable strength for tensioning the wire rope net.





Technical Specifications
Material:steel, galvanised, clamps made of aluminium
Material Diameter: 1.5 mm
Mesh Size:50 x 50 mm
Pose of Meshs:quadratic (square)
Mesh Connection:clamp-connection with four-wire connector
Rope Construction:7 x 7
Edge Design:loops
Breaking Force:minimum breaking force of rope: 1.2 kN equal to the weight force of a mass of 122 kilograms
Slip Resistance of Wire Connectors:0.8 kN equal to the weight force of a mass of 81 kilograms
Continuous Operating Temperature:-40 to +150 C
Weather-Resistance:very good
Customs Tariff No.:73129000
Weight per Unit Area:700 g/m

 Download product data sheet (PDF)



Your satisfaction and safety are very important to us. Regular quality inspections guarantee the high standard of our products. Our nets and fabric are designed to fulfil the most exacting standards and are characterised by their exceptional durability.



Not sure which net thickness is right for your specific purpose or do you perhaps have a different question? Trust our many years' experience and contact us!



 Download product data sheet (PDF)



Technical Specifications
Material:steel, galvanised, clamps made of aluminium
Material Diameter: 1.5 mm
Mesh Size:50 x 50 mm
Pose of Meshs:quadratic (square)
Mesh Connection:clamp-connection with four-wire connector
Rope Construction:7 x 7
Edge Design:loops
Breaking Force:minimum breaking force of rope: 1.2 kN equal to the weight force of a mass of 122 kilograms
Slip Resistance of Wire Connectors:0.8 kN equal to the weight force of a mass of 81 kilograms
Continuous Operating Temperature:-40 to +150 C
Weather-Resistance:very good
Customs Tariff No.:73129000
Weight per Unit Area:700 g/m
