Air-Permeable Fabric by the m² (Custom-Made)

Opaque Woven Fabric, Made to Measure | Safetynet365
Opaque Woven Fabric, Made to Measure | Safetynet365
Opaque Woven Fabric, Made to Measure | Safetynet365
Opaque Woven Fabric, Made to Measure | Safetynet365
Opaque Woven Fabric, Made to Measure | Safetynet365
Opaque Woven Fabric, Made to Measure | Safetynet365
Shipping Time: 8-10 working days
Item No.: 775
Customise Your Product
Color:
Eyelet Spacing:
excl. VAT *1 0,00 €incl. VAT *2 0,00 €
Add to cart

  •  Description
  •  Technical Specifications
  •  More Images
  •  Reviews
Description

High-quality made-to-measure tarpaulin for private and industrial use. Choose one of the above colors and enter the desired length and width into the appropriate fields. The surface area, weight and price will then be automatically calculated and shown.



Due to the type of textile it is possible that the material shrinks in the first weeks of use. The net may be produced bigger according to the ordered size. Please also note the stated production tolerance. Our tarpaulins are made of UV-resistant, air-permeable fabric with reinforced border and eyelets at chosen intervals. The value of the eyelet spacing is calculated with tolerance. If the eye clearance is not exactly compatible with the side length, the distance is averaged accordingly. The air-permeable material prevents the tarpaulin from ballooning in strong wind.



The material is of course 100% non-toxic, and contact with mucus membranes (mouth, eyes) is completely safe as well. Thanks to their weather-resistance and UV-stability, our tarpaulins are suitable for both outdoor and indoor use.



Flame-retardant fabric (except creme-colored version).



Technical Specifications
Material:polyethylene, flame-retardant, woven tight
Type of Textile:tape/monofilament closemesh, air and water permeable
Material Diameter:Material Thickness: 1.2 mm
Mesh Size:0.3 x 0.3 mm
Production Tolerance:external dimensions: ± 2.5 cm
Shading:90%
Edge Design:with reinforced and stitched edges all around (approx. 40 mm wide)
Eyelets:inside diameter Ø 16 mm, all around, with chosen spacing (standard every 50 cm), brass eyelets with cream version, stainless steel eyelets with all the other versions
Breaking Force:Warp: 1236 N, Weft: 1512 N
Breaking Elongation of Filament:15%
Standards and Rules:EN 13501-1 (flame-retarding), classification B-s1 d0 B: flame retardant
s1: absent/weak smoke emission
d0: no dripping
,
(except creme-colored version)
Continuous Operating Temperature:-25 bis +80 °C
Melting Point:155 °C
Yarn Moisture Regain:0%
Tensile Strength Reduction Because Of Moisture:0%
Resistance to Weak/Strong Acids measured at 25 °C ambient temperature:very good/good
Resistance to Weak/Strong Alkalis measured at 25 °C ambient temperature:good/good
Resistance to Organic Solvents measured at 25 °C ambient temperature:good
Resistance to Benzine and Greases measured at 25 °C ambient temperature:very good
Bending Strength & Abrasion Resistance:good
Weather-Resistance:good
UV-Resistance:250 kly
Tensile Strength After Two Years of Climatic Influences:90%
Elasticity After Years of Climatic Influences:good long-term flexibility, no elongation
Flexibility When Used in Water:stays flexible
Contraction When Used in Water:low contraction
Contraction When Used Outside:low contraction
Behavior in High Heat / Fire:melting
Electrical Characteristics:isolating, no electrical conductivity
Customs Tariff No.:63079010
Weight per Unit Area:320 g/m²

 Download product data sheet (PDF)



Your satisfaction and safety are very important to us. Regular quality inspections guarantee the high standard of our products. Our nets and fabric are designed to fulfil the most exacting standards and are characterised by their exceptional durability.



Not sure which net thickness is right for your specific purpose or do you perhaps have a different question? Trust our many years' experience and contact us!



 Download product data sheet (PDF)



Technical Specifications
Material:polyethylene, flame-retardant, woven tight
Type of Textile:tape/monofilament closemesh, air and water permeable
Material Diameter:Material Thickness: 1.2 mm
Mesh Size:0.3 x 0.3 mm
Production Tolerance:external dimensions: ± 2.5 cm
Shading:90%
Edge Design:with reinforced and stitched edges all around (approx. 40 mm wide)
Eyelets:inside diameter Ø 16 mm, all around, with chosen spacing (standard every 50 cm), brass eyelets with cream version, stainless steel eyelets with all the other versions
Breaking Force:Warp: 1236 N, Weft: 1512 N
Breaking Elongation of Filament:15%
Standards and Rules:EN 13501-1 (flame-retarding), classification B-s1 d0 B: flame retardant
s1: absent/weak smoke emission
d0: no dripping
,
(except creme-colored version)
Continuous Operating Temperature:-25 bis +80 °C
Melting Point:155 °C
Yarn Moisture Regain:0%
Tensile Strength Reduction Because Of Moisture:0%
Resistance to Weak/Strong Acids measured at 25 °C ambient temperature:very good/good
Resistance to Weak/Strong Alkalis measured at 25 °C ambient temperature:good/good
Resistance to Organic Solvents measured at 25 °C ambient temperature:good
Resistance to Benzine and Greases measured at 25 °C ambient temperature:very good
Bending Strength & Abrasion Resistance:good
Weather-Resistance:good
UV-Resistance:250 kly
Tensile Strength After Two Years of Climatic Influences:90%
Elasticity After Years of Climatic Influences:good long-term flexibility, no elongation
Flexibility When Used in Water:stays flexible
Contraction When Used in Water:low contraction
Contraction When Used Outside:low contraction
Behavior in High Heat / Fire:melting
Electrical Characteristics:isolating, no electrical conductivity
Customs Tariff No.:63079010
Weight per Unit Area:320 g/m²
More Images
Opaque Woven Fabric, Made to Measure | Safetynet365
Opaque Woven Fabric, Made to Measure | Safetynet365
Opaque Woven Fabric, Made to Measure | Safetynet365
Opaque Woven Fabric, Made to Measure | Safetynet365
Opaque Woven Fabric, Made to Measure | Safetynet365

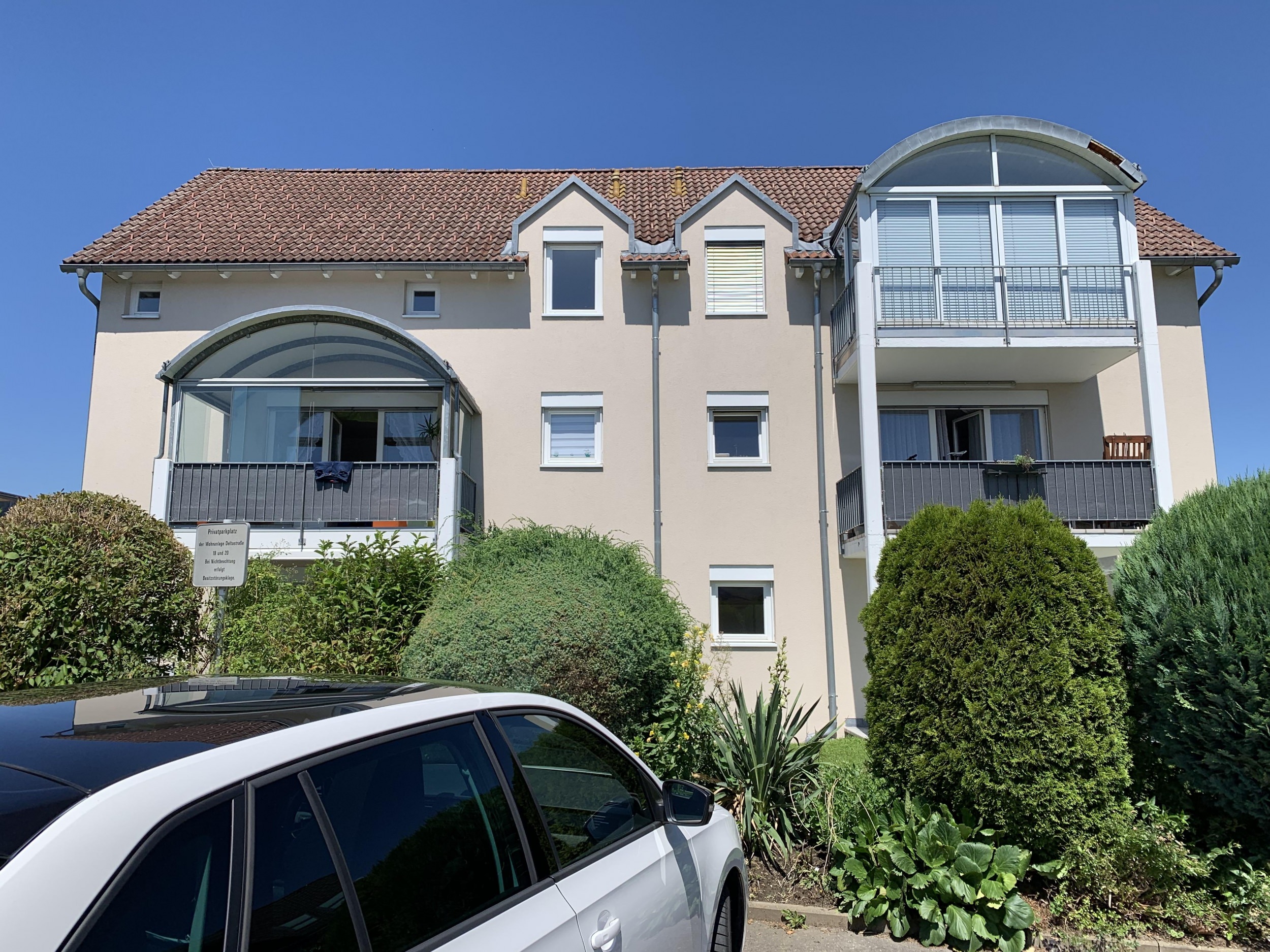

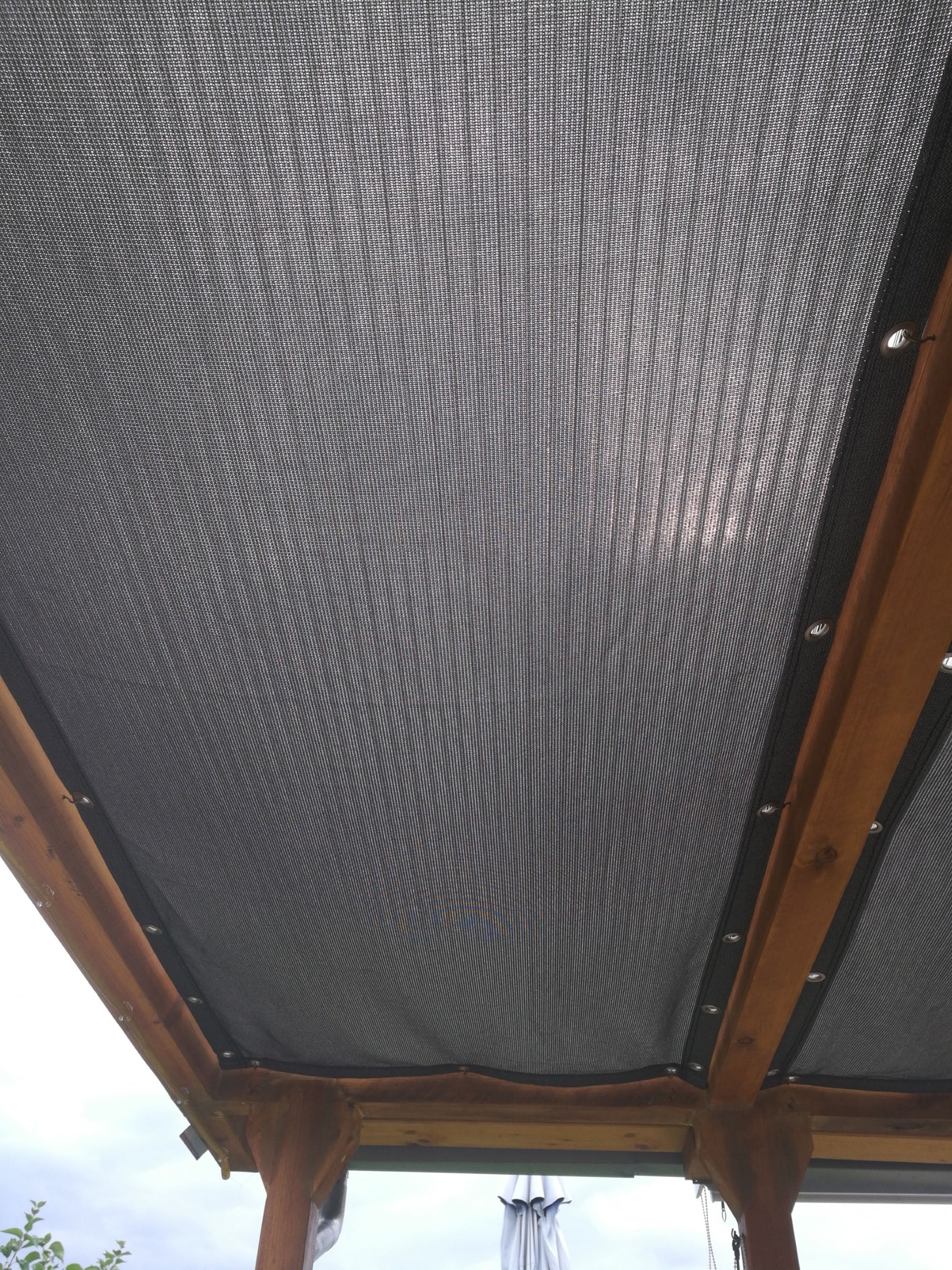

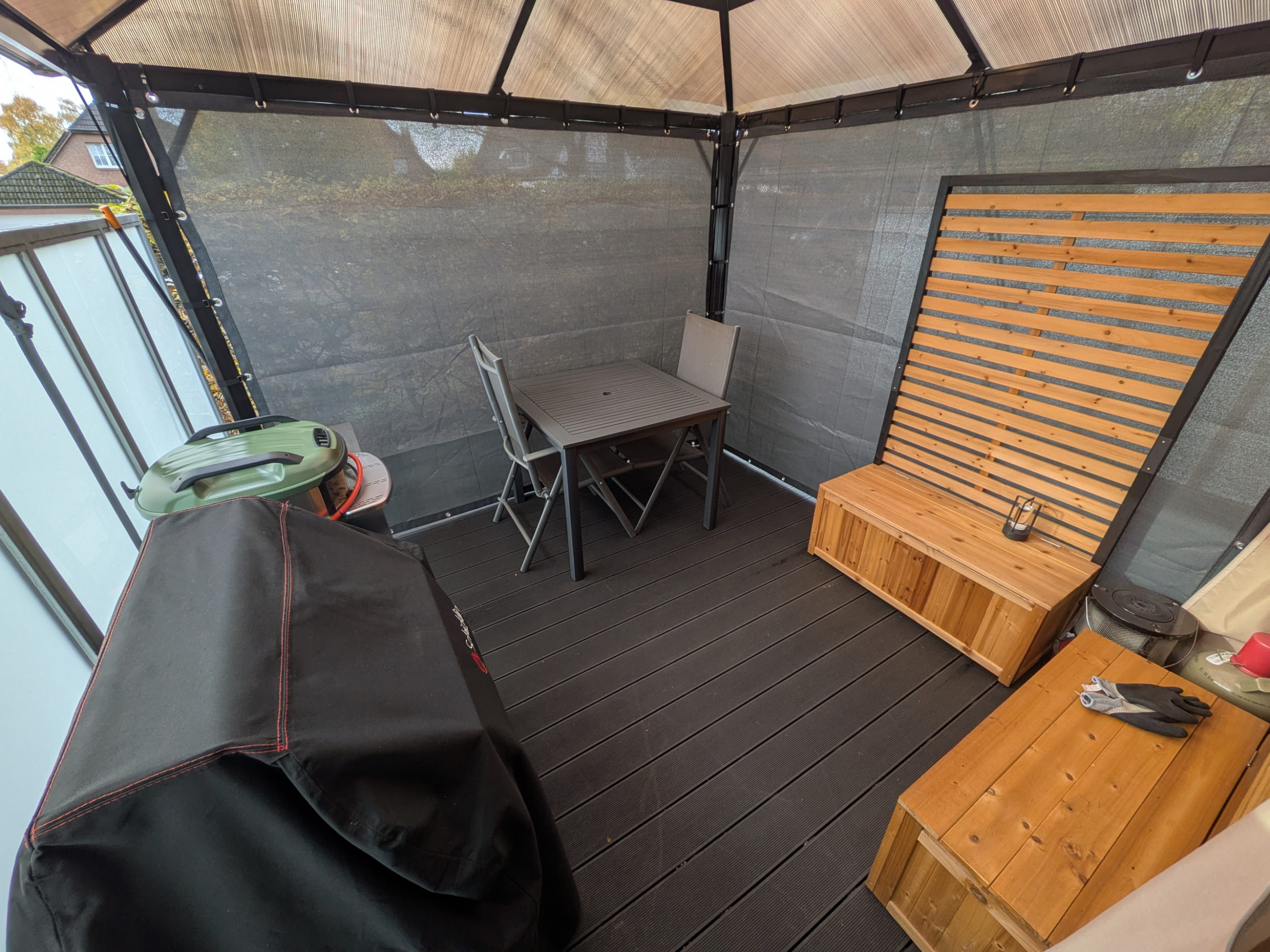

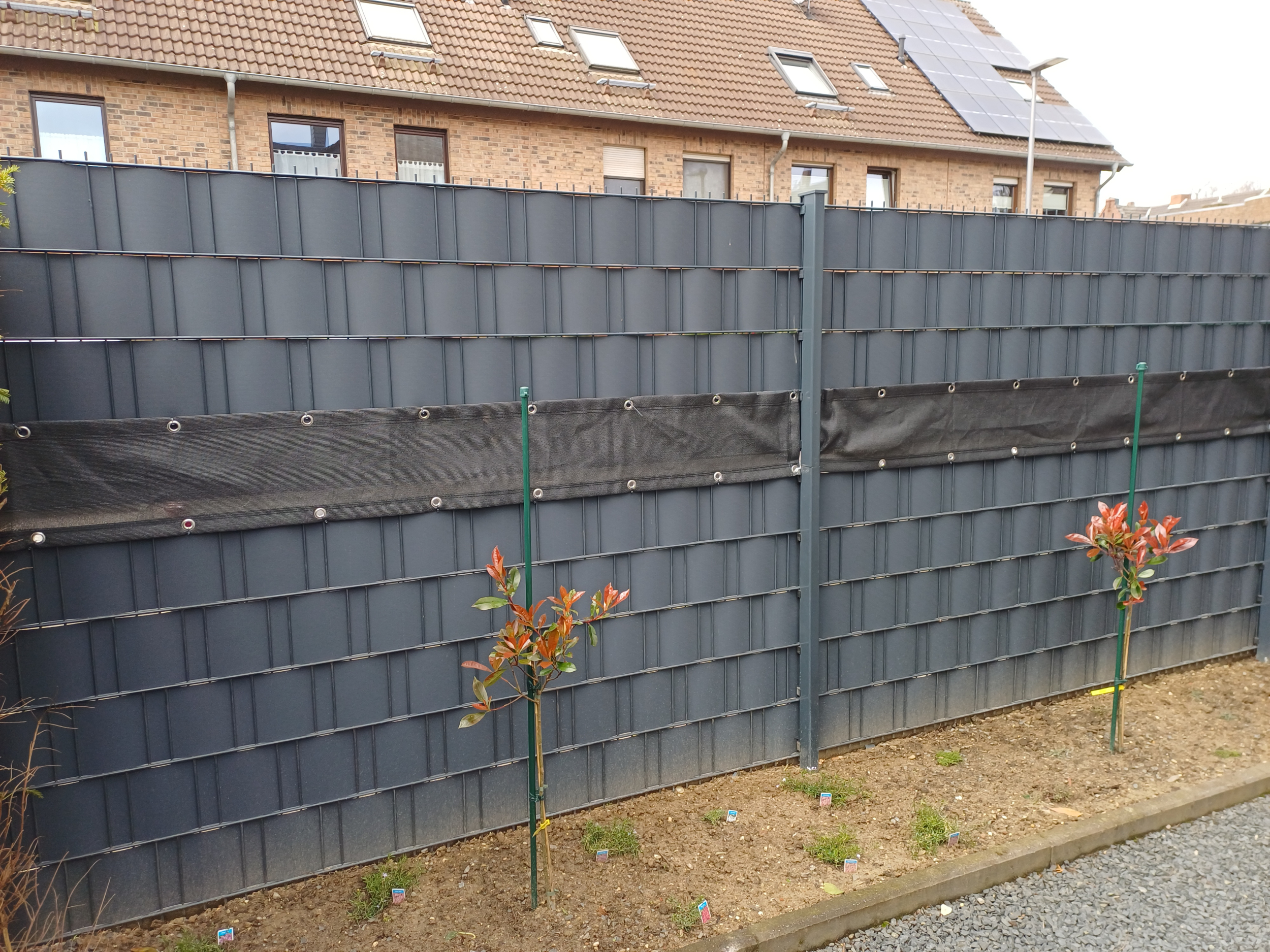

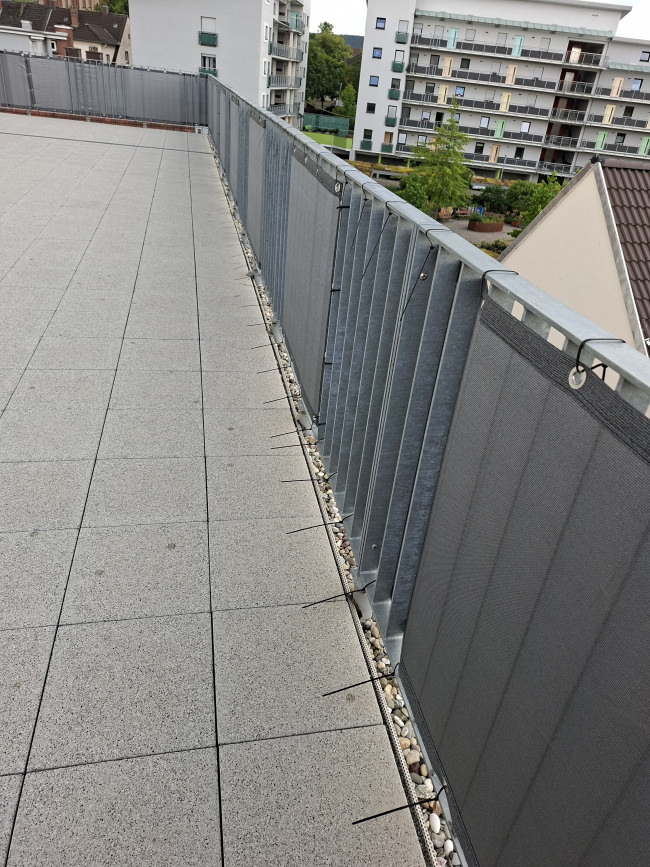

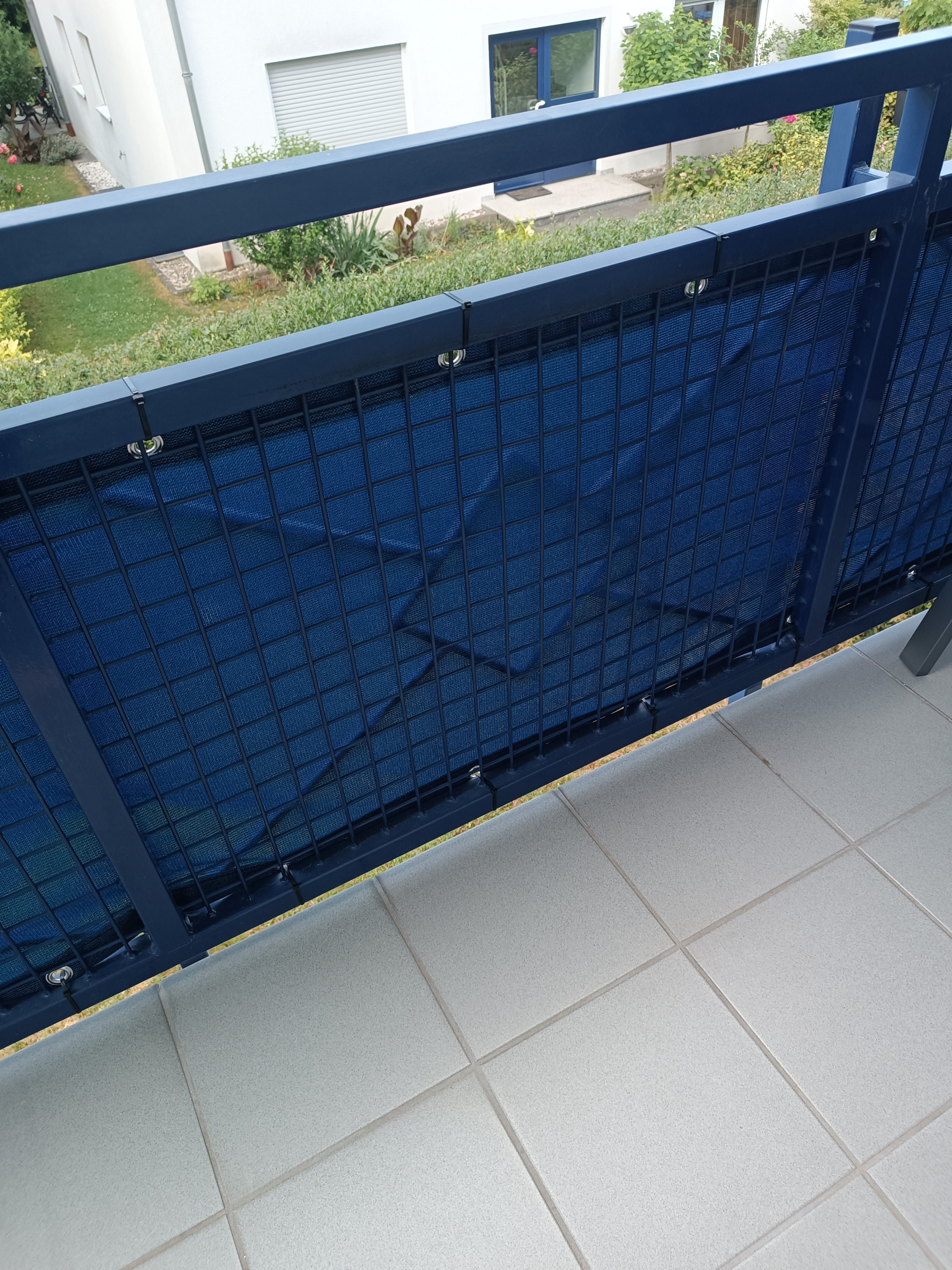

Pictures of our Customers

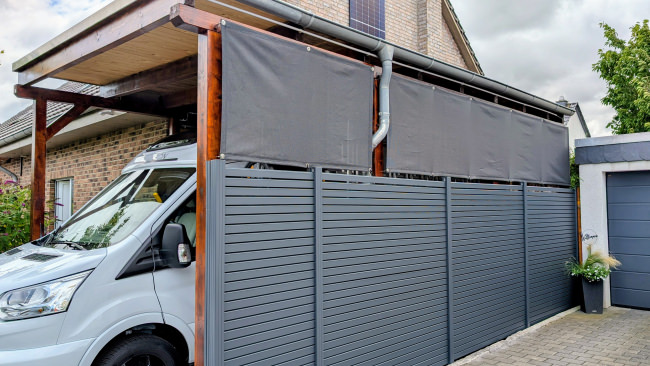

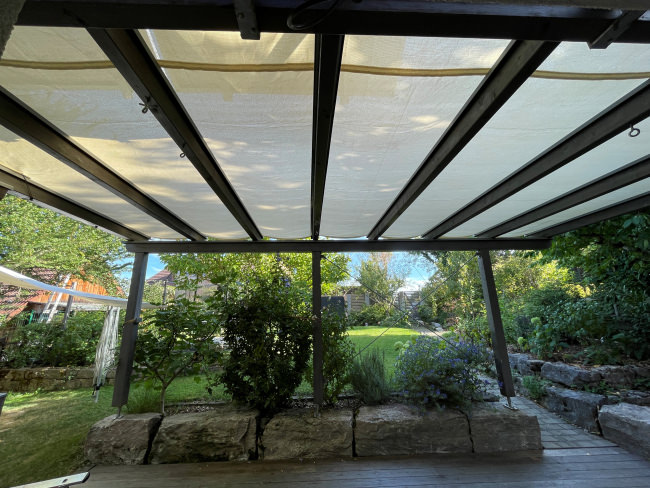

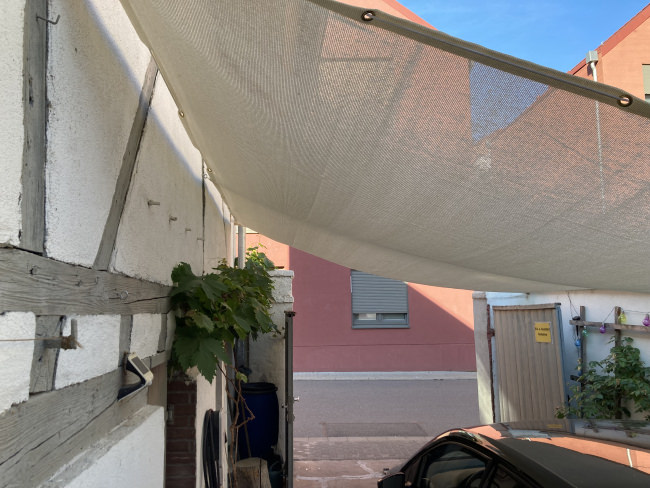

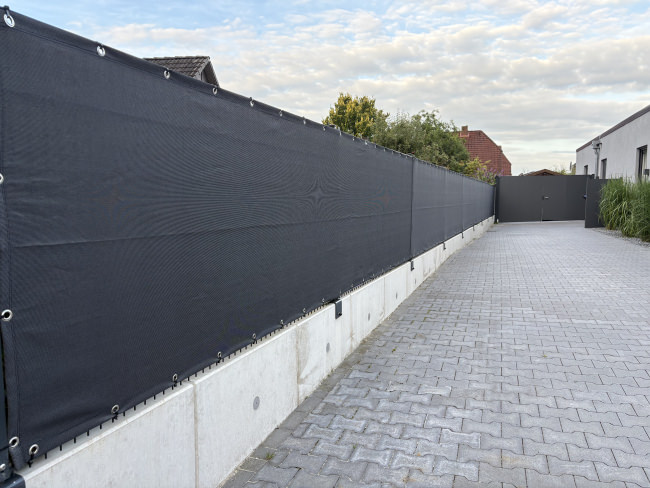

Kundenfoto von Opaque Woven Fabric, Made to Measure
