Climbing Net by the m² (Custom-Made)

Walkable Climbing Net, Custom-Made (by the m²) | Safetynet365

Shipping Time: 30-35 working days

Item No.: 4316-120

Customise Your Product

Color(Please select)

Fastener Type(Please select)

Fastener Positions(Please select)

Color of Plastic Parts(Please select)

Width:

Length:

Graduated Prices (for each):

from 1 m²:	501,34 €/m²*1	596,60 €/m²*2
from 2 m²:	371,43 €/m²*1	442,00 €/m²*2

Net Area: 1,00 m²
Price per m²: 596,60 €
Total Weight: 9,02 kg

Qty pcs.

excl. VAT *1 649,92 € incl. VAT *2 773,40 €

Add to cart

Details
Technical Specifications
More Pictures
Reviews

Ask a Question

Description

Configure your own individual made-to-measure climbing net. Choose one of the above colors and enter the desired measurements into the appropriate fields. Please also select the type and model of your preferred anchorage system. The surface area and price of the net will then be automatically calculated and shown. The size of the edge mesh can vary. The size is adjusted in such a way that the mesh fits the ordered size, while preventing ensnarement points.

Material

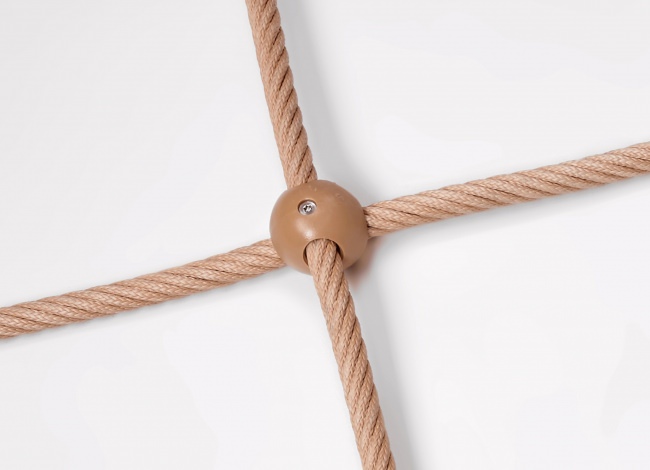

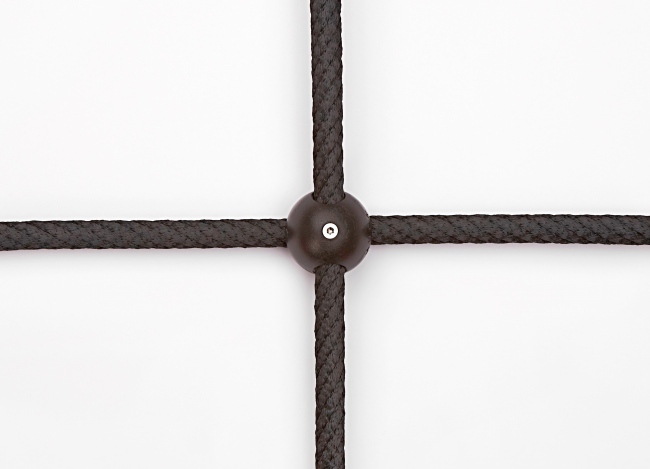

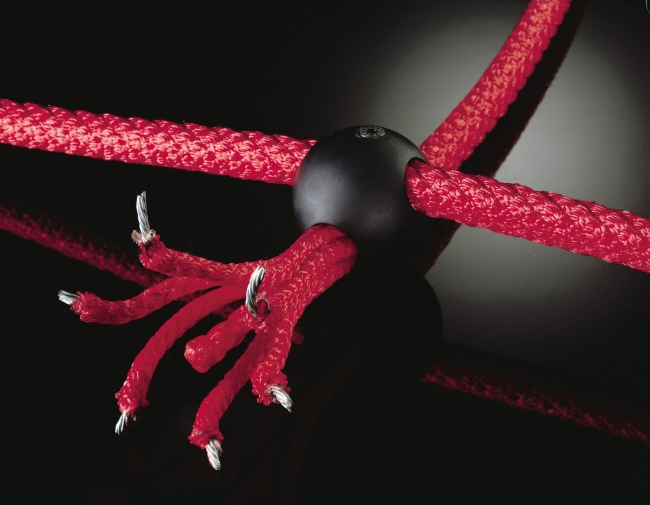

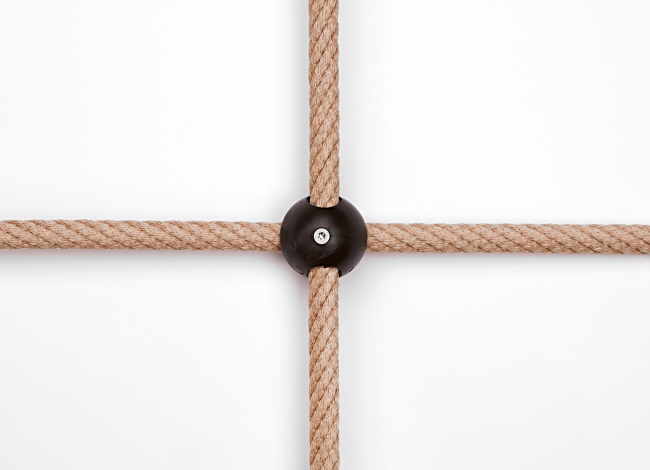

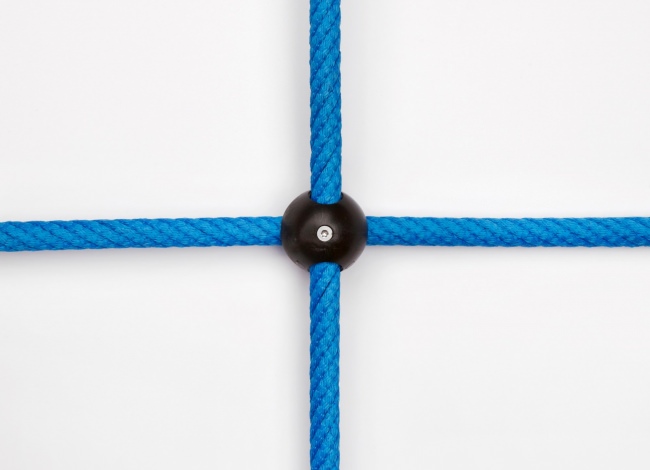

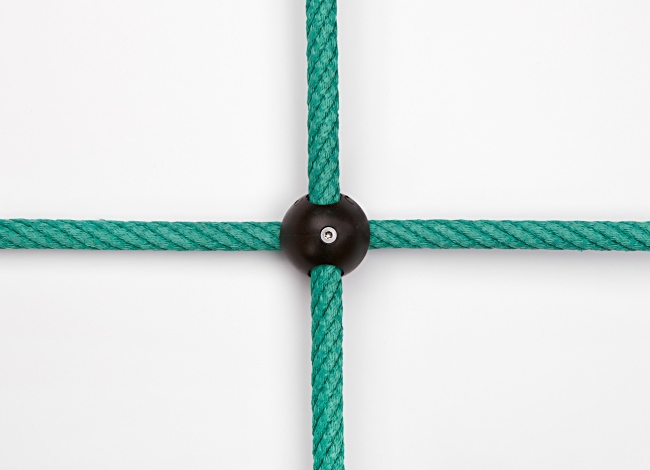

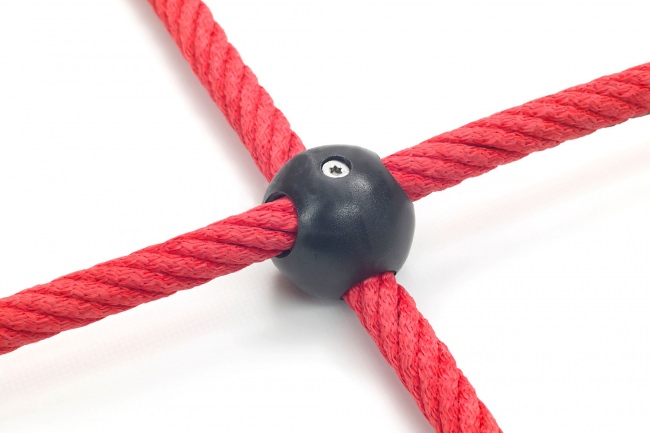

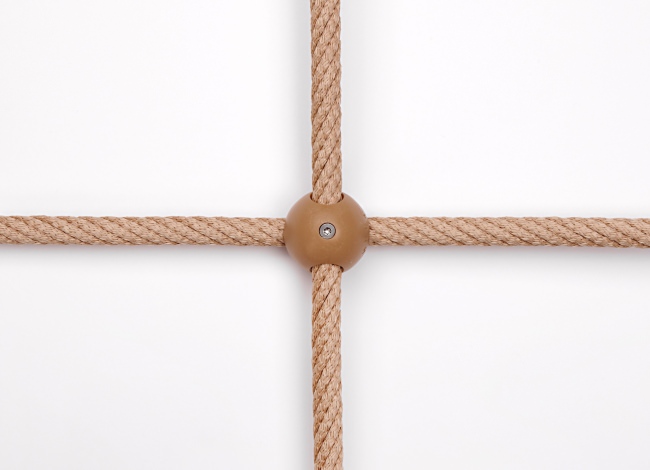

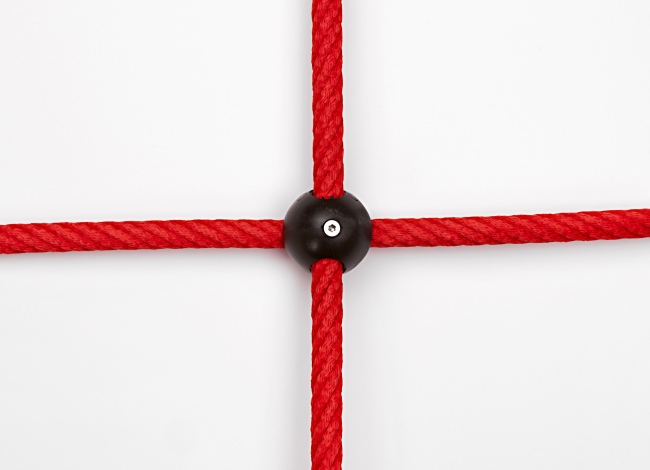

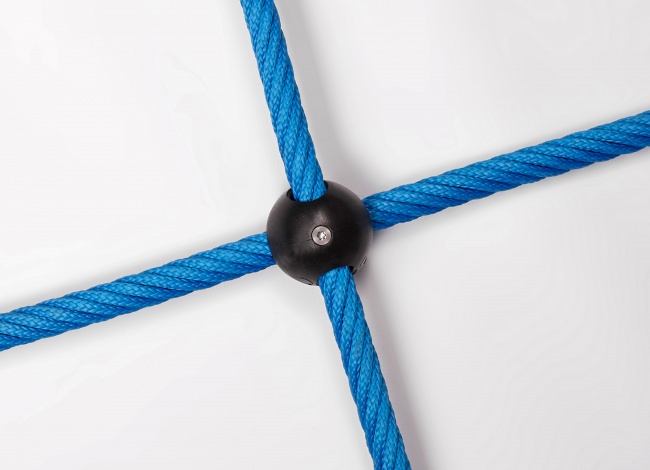

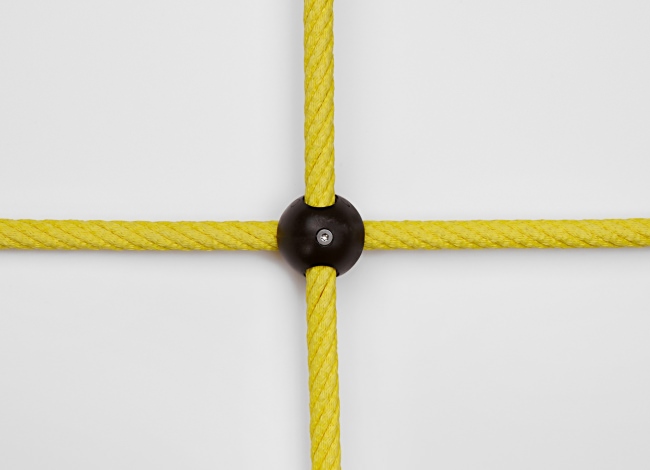

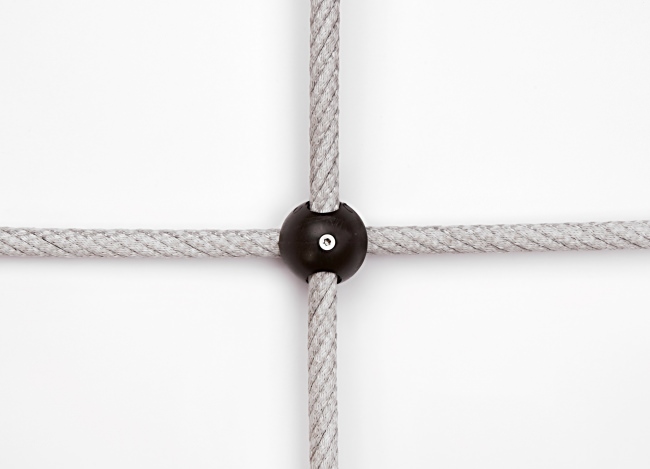

The Hercules rope used (Ø 16 mm) consists of in-core 8 mm-thick polypropylene rope, which is wound round by six 2.4 mm-thick twisted steel ropes. These are in turn each sheathed in 6 mm-thick polyester yarn. The material used is designed to be weather-resistant, UV stable and highly abrasion-proof. In addition, the finished cordage has been treated with a colorless impregnation. It is therefore possible to guarantee many years of operation even under continuous loading. The individual ropes are connected together by plastic balls of HDPE, inside which the ropes cross and are screwed together. The round shape without corners and edges ensures smooth running, while at the same time preventing the occurrence of jamming points between the ropes. The mesh is prevented from slipping out of place by the screw connection. The material is of course 100% non-toxic, and contact with mucus membranes (mouth, eyes) is completely safe as well. Thanks to their weather-resistance and UV-stability, our climbing nets are suitable for both outdoor and indoor use.

Available Colors

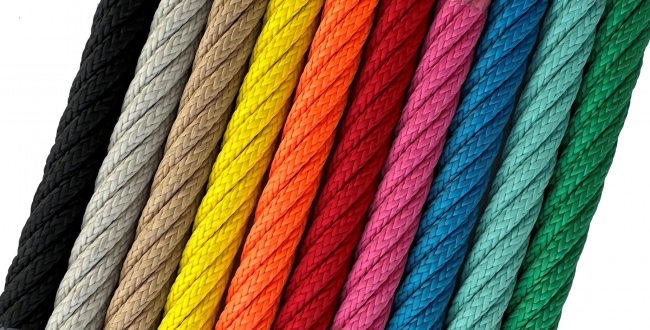

Available Colors (left to right):

black, grey, beige, yellow, orange, red, fuchsia, blue, turquoise, green

Border Design

You can choose between various types of anchorage for the border (see table below). Depending on the type of mesh, these are directly pressure-grouted (aluminium clamp) or screwed to the rope-ends of the net. Please always state the basic frame measurements for the nets. The measurements relate to the distance from one anchorage point to the next.

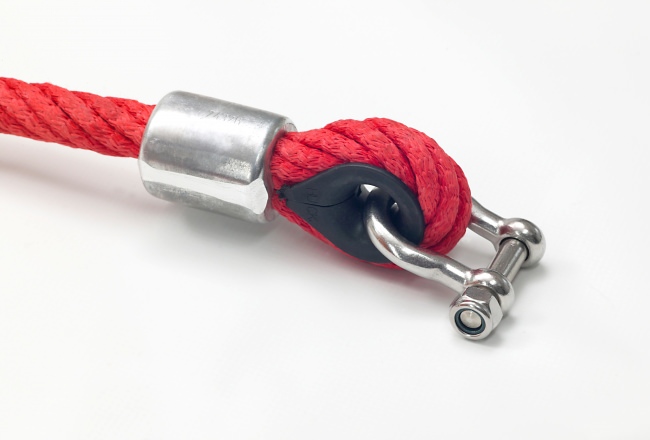

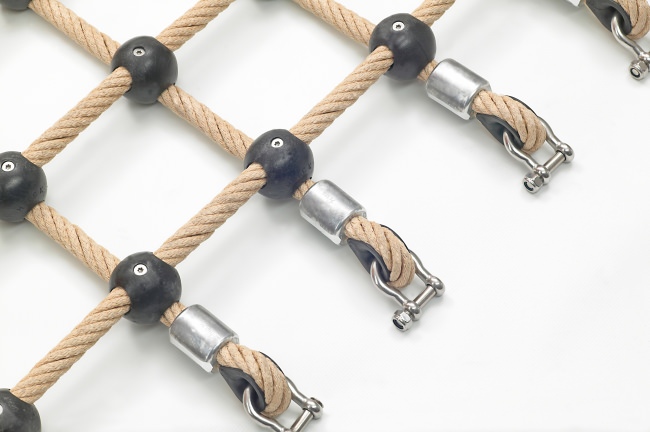

	Stainless steel shackle M8, cambered Item no. 440-8G Shackle M8 of stainless steel, inside a plastic thimble (material: HDPE, inside diameter: 11 mm, color: black or beige, pressure-grouted with aluminium clamp)
	Stainless steel shackle M6, straight Item no. 441-6 Shackle M6 of stainless steel, screwed to a plastic adapter (material: HDPE, color: black or beige)
	Stainless steel retainer ring with plastic adapter Item no. 442 Stainless steel retainer ring Ø 6 mm, incl. two stainless steel woodscrews M6 x 70 mm, screwed to plastic adapter (material: HDPE, color: black or beige)
	Steel ring M10 x 50 mm Item no. 453 Galvanised steel ring M10 x 50 mm, inside plastic thimble (material: HDPE, inside diameter: 11 mm, color: black or beige, pressure-grouted with aluminium clamp)
	Threaded bolt M10, with plastic adapter Item no. 454 Galvanised threaded bolt M10 (length as required), screwed to plastic adapter (material: HDPE, color: black or beige)
	Threaded bolt M10, pressure-grouted Item no. 454V Galvanised threaded bolt M10 (length as required), pressure-grouted with aluminium clamp
	Ring nut, with inside thread M10 Item no. 455 Stainless steel ring nut with inside thread M10, inside plastic thimble (material: HDPE, inside diameter: 11 mm, color: black or beige, pressure-grouted with aluminium clamp)
	Ring nut, with threaded bolt M10 Item no. 455B Stainless steel ring nut with threaded bolt M10 (length as required), inside plastic thimble (material: HDPE, inside diameter: 11 mm, color: black or beige, pressure-grouted with aluminium clamp)
	Plastic thimble, Ø 11 mm Item no. 457 Material: HDPE, inside diameter: 11 mm, color: black or beige, pressure-grouted with aluminium clamp
	Plastic thimble, Ø 30 mm Item no. 457W Material: HDPE, inside diameter: 30 mm, color: beige, pressure-grouted with aluminium clamp
	Stainless steel thimble, Ø 30 mm Item no. 457VA Material: stainless steel, inside diameter: 30 mm, pressure-grouted with aluminium clamp
	Round thimble, Ø 35 mm Item no. 457R Material: HDPE, inside diameter: 35 mm, color: black, pressure-grouted with aluminium clamp
	Solid thimble, opening diameter 11.5 mm Item no. 457V Material: HDPE, inside diameter: 11.5 mm, color: black, pressure-grouted with aluminium clamp
	Chain (3 links), with chain adapter Item no. 461 Chain No. 6 (Ø 6 mm, short-link) of galvanised steel, length: 3 links, screwed to plastic adapter (material: HDPE, color: black or beige)
	Chain (4 links), pressure-grouted Item no. 461V Chain No. 6 (Ø 6 mm, short-link) of galvanised steel, length: 4 links, pressure-grouted with aluminium clamp
	Bolt adapter, with inside thread M10 Item no. 463 Plastic bolt adapter (material: HDPE, color: black or beige), with inside thread M10
	Rope loop Item no. 464 Inside diameter as required, pressure-grouted with aluminium clamp
	Rope closure Item no. 436 Plastic rope-end closure (material: HDPE, color: black or beige)

Fastener Positions

Fasteners all around

Fasteners at one long and one short side respectively

Fasteners at both long sides and one short side

Fasteners at both short sides and one long side

Fasteners at both long sides

Fasteners at both short sides

Fasteners at one long side

Fasteners at one short side

Completely without fasteners

Safety Standards

Our climbing nets fulfil all the requirements of the European Standards for Playground Equipment EN 1176. The number of meshes and the size of the border mesh have been adjusted in such a way that they cannot create ensnarement points for head and torso.

Technical Specifications

:hercules rope [6 steel cables (Ø 2.4 mm), covered with polyester (Ø 5.4 mm), polypropylene core (Ø 8.3 mm)], cut resistant

:Ø 16.0 mm

:125 x 125 mm

:quadratic (square)

:plastic knot system (HDPE, Ø 48 mm)

:pressure-grouted or screwed fastening equipment according to choice

:minimum breaking force of rope: 42.0 kN equal to the weight force of a mass of 4282 kilograms, nominal tensile strength: 16 N/mm²

:EN 1176

:-40 to +100 °C

:260 °C

:0.5 to 2.0%

:0%

:good/not good

:good/good

:good

:250 kly

:90%

:isolating coating, electrically conducting core

:acrylic resin polymer dispersion

:95069990

Download product data sheet (PDF)

Your satisfaction and safety are very important to us. Regular quality inspections guarantee the high standard of our products. Our nets and fabric are designed to fulfil the most exacting standards and are characterised by their exceptional durability.

Not sure which net thickness is right for your specific purpose or do you perhaps have a different question? Trust our many years' experience and contact us!
