Climbing Net by the m (Custom-Made)

Woven Scramble Net, Custom-Made | Safetynet365
Woven Scramble Net, Custom-Made | Safetynet365
Woven Scramble Net, Custom-Made | Safetynet365
Woven Scramble Net, Custom-Made | Safetynet365
Shipping Time: 20-25 working days
Item No.: 4116-250

Customise Your Product

Color:
Fastener Type:
Fastener Positions:
Color of Plastic Parts:
Width:
cm
Length:
cm
Graduated Prices (for each):
from 1 m:    186,00 €/m
from 2 m:    137,00 €/m
  • Net Area:
  • Price per m: 0,00 €
  • Total Weight:
Qty pcs.
excl. VAT *1 0,00 €incl. VAT *2 0,00 €
Add to cart

  •  Description
  •  Technical Specifications
  •  More Images
  •  Reviews
Description
EN 1176

Configure your own individual made-to-measure climbing net. Choose one of the above colors and enter the desired measurements into the appropriate fields. Please also select the type and model of your preferred anchorage system. The surface area and price of the net will then be automatically calculated and shown. The size of the edge mesh can vary. The size is adjusted in such a way that the mesh fits the ordered size, while preventing ensnarement points. The net is suitable for both horizontal and vertical use.



Material

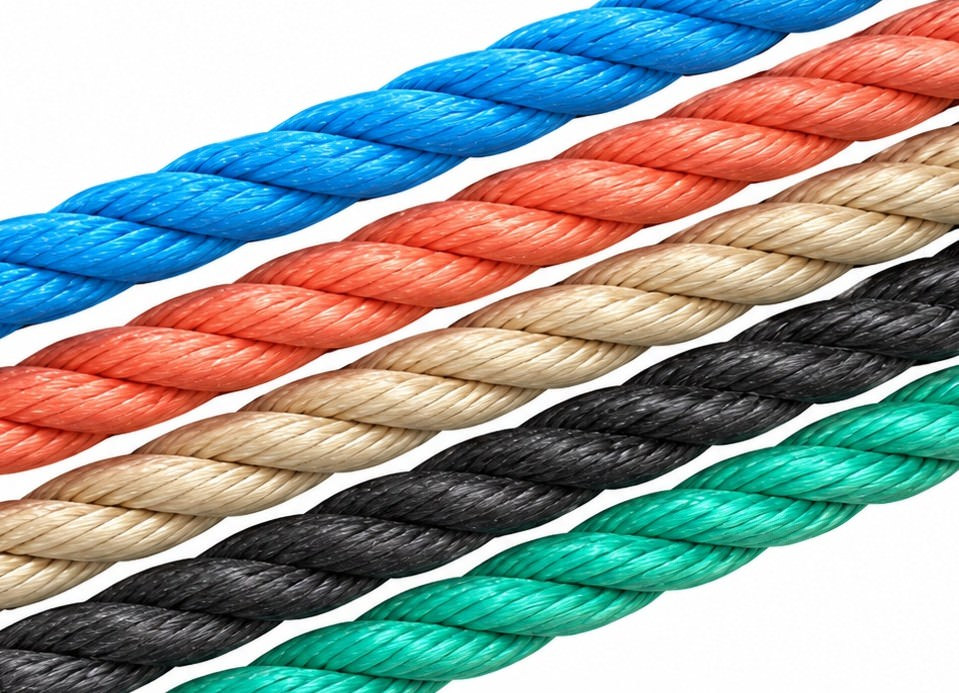

The rope used is four-shaft, 16 mm-thick polypropylene cordage without a steel core. At the crossing points the ropes are intertwined without losing their shape. The material is of course 100% non-toxic, and contact with mucus membranes (mouth, eyes) is completely safe as well. Thanks to their weather-resistance and UV-stability, our climbing nets are suitable for both outdoor and indoor use.



Border Design

You can choose between various types of anchorage for the border (see table below). Depending on the type of mesh, these are directly pressure-grouted (aluminium clamp) or screwed to the rope-ends of the net. Please always state the basic frame measurements for the nets. The measurements relate to the distance from one anchorage point to the next.



climbing net anchorage shackle M8, cambered

Stainless steel shackle M8, cambered

Item no. 440-8G

Shackle M8 of stainless steel, inside a plastic thimble (material: HDPE, inside diameter: 11 mm, color: black or beige, pressure-grouted with aluminium clamp)

climbing net anchorage steel ring

Steel ring M10 x 50 mm

Item no. 453

Galvanised steel ring M10 x 50 mm, inside plastic thimble (material: HDPE, inside diameter: 11 mm, color: black or beige, pressure-grouted with aluminium clamp)

climbing net anchorage ring nut, with inside thread M10

Ring nut, with inside thread M10

Item no. 455

Galvanised ring nut with inside thread M10, inside plastic thimble (material: HDPE, inside diameter: 11 mm, color: black or beige, pressure-grouted with aluminium clamp)

climbing net anchorage ring nut, with threaded bolt M10

Ring nut, with threaded bolt M10

Item no. 455B

Galvanised ring nut with threaded bolt M10 (length as required), inside plastic thimble (material: HDPE, inside diameter: 11 mm, color: black or beige, pressure-grouted with aluminium clamp)

climbing net anchorage plastic thimble, Ø 11 mm

Plastic thimble, Ø 11 mm

Item no. 457

Material: HDPE, inside diameter: 11 mm, color: black or beige, pressure-grouted with aluminium clamp

climbing net anchorage plastic thimble, Ø 30 mm

Plastic thimble, Ø 30 mm

Item no. 457W

Material: HDPE, inside diameter: 30 mm, color: beige, pressure-grouted with aluminium clamp

climbing net anchorage stainless steel thimble, Ø 30 mm

Stainless steel thimble, Ø 30 mm

Item no. 457VA

Material: stainless steel, inside diameter: 30 mm, pressure-grouted with aluminium clamp

climbing net anchorage round thimble, Ø 35 mm

Round thimble, Ø 35 mm

Item no. 457R

Material: HDPE, inside diameter: 35 mm, color: black, pressure-grouted with aluminium clamp

climbing net anchorage solid thimble, opening diameter 11.5 mm

Solid thimble, opening diameter 11.5 mm

Item no. 457V

Material: HDPE, inside diameter: 11.5 mm, color: black, pressure-grouted with aluminium clamp

climbing net anchorage rope loop

Rope loop

Item no. 464

Inside diameter as required, pressure-grouted with aluminium clamp



Safety Standards

Our climbing nets fulfil all the requirements of the European Standards for Playground Equipment EN 1176. The number of meshes and the size of the border mesh have been adjusted in such a way that they cannot create ensnarement points for head and torso.



Technical Specifications
Material:multi-strand polypropylene rope
Material Diameter: 16.0 mm
Mesh Size:250 x 250 mm
Pose of Meshs:quadratic (square)
Mesh Connection:knot-tied, braided
Edge Design:pressure-grouted or screwed fastening equipment according to choice
Breaking Force:minimum breaking force of rope: 31.7 kN equal to the weight force of a mass of 3232 kilograms
Standards and Rules:EN 1176
Continuous Operating Temperature:-40 to +80 C
Melting Point:165 C
Yarn Moisture Regain:0%
Resistance to Weak/Strong Acids measured at 25 C ambient temperature:very good/good
Resistance to Weak/Strong Alkalis measured at 25 C ambient temperature:good/bad
Resistance to Organic Solvents measured at 25 C ambient temperature:good
Resistance to Benzine and Greases measured at 25 C ambient temperature:very good
Bending Strength & Abrasion Resistance:good
Weather-Resistance:good
UV-Resistance:250 kly
Tensile Strength After Two Years of Climatic Influences:90%
Customs Tariff No.:95069990

 Download product data sheet (PDF)



Your satisfaction and safety are very important to us. Regular quality inspections guarantee the high standard of our products. Our nets and fabric are designed to fulfil the most exacting standards and are characterised by their exceptional durability.



Not sure which net thickness is right for your specific purpose or do you perhaps have a different question? Trust our many years' experience and contact us!

 Download product data sheet (PDF)



Technical Specifications
Material:multi-strand polypropylene rope
Material Diameter: 16.0 mm
Mesh Size:250 x 250 mm
Pose of Meshs:quadratic (square)
Mesh Connection:knot-tied, braided
Edge Design:pressure-grouted or screwed fastening equipment according to choice
Breaking Force:minimum breaking force of rope: 31.7 kN equal to the weight force of a mass of 3232 kilograms
Standards and Rules:EN 1176
Continuous Operating Temperature:-40 to +80 C
Melting Point:165 C
Yarn Moisture Regain:0%
Resistance to Weak/Strong Acids measured at 25 C ambient temperature:very good/good
Resistance to Weak/Strong Alkalis measured at 25 C ambient temperature:good/bad
Resistance to Organic Solvents measured at 25 C ambient temperature:good
Resistance to Benzine and Greases measured at 25 C ambient temperature:very good
Bending Strength & Abrasion Resistance:good
Weather-Resistance:good
UV-Resistance:250 kly
Tensile Strength After Two Years of Climatic Influences:90%
Customs Tariff No.:95069990
